Dampers & Actuators | SKU: GLB161.1P

GLB161.1P | Siemens | Dampers & Actuators

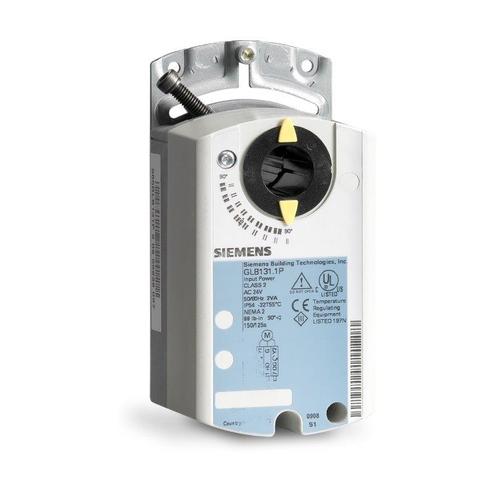

Name: GLB161.1P
Brand: Siemens
SKU: SIE-GLB1611P
Price: 269.52 USD
Availability: InStock

OpenAir GLB, Damper Actuator, 90 Degree, 88 Inch-lb, Non-Spring Return, 24 VAC

$269.52 $552.80

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

OpenAir GLB Series Electric Damper Actuator, rotary, non-spring return, 88 in-lb (10 Nm), 24 Vac, 0 to 10 Vdc control, 90 sec run time, plenum rated

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-22°F to 130°F
Application	HVAC Dampers
Control input	0-10VDC/2-10VDC
Data Sheet	Download
Installation Instructions	Download
Enclosure type	NEMA 2, IP54 per EN60529, durable plastic
Fail safe	Non-Spring Return
Height	5.44 in
Length	2.38 in
Mounting type	Direct-Coupled
Power supply	24 VAC
Product category	Dampers & Actuators
Product subcategory	Non-Spring Return Damper Actuators
Rotation	90 Deg
Running time	125 Second
Series	Siemens
Short desc	OpenAir GLB, Damper Actuator, 90 Degree, 88 Inch-lb, Non-Spring Return, 24 VAC
Supplier part number	GLB161.1P
Torque	88 in-lbs
Type	Damper Actuator - Non-Fail Safe
Web eligible	Y
Width	2.75 in

Features and Benefits

{'Features_and_Benefits_1': 'Compact, lightweight design', 'Features_and_Benefits_2': 'Synchronous motor technology', 'Features_and_Benefits_3': 'Manual override', 'Features_and_Benefits_4': 'Mechanical range adjustment capability', 'Features_and_Benefits_5': 'Easily visible position indicator', 'Features_and_Benefits_6': 'Approved for installation in plenum areas (UL 1995)', 'Features_and_Benefits_7': 'Models available with dual, independently adjustable auxiliary switches', 'Features_and_Benefits_8': 'All modulating models offer built-in feedback'}
