Data Center Products | SKU: TC300B-G

TC300B-G | Honeywell | Thermostats & Controllers

Name: TC300B-G
Brand: Honeywell
SKU: HWI-TC300BG
Price: 246.60 USD
Availability: InStock

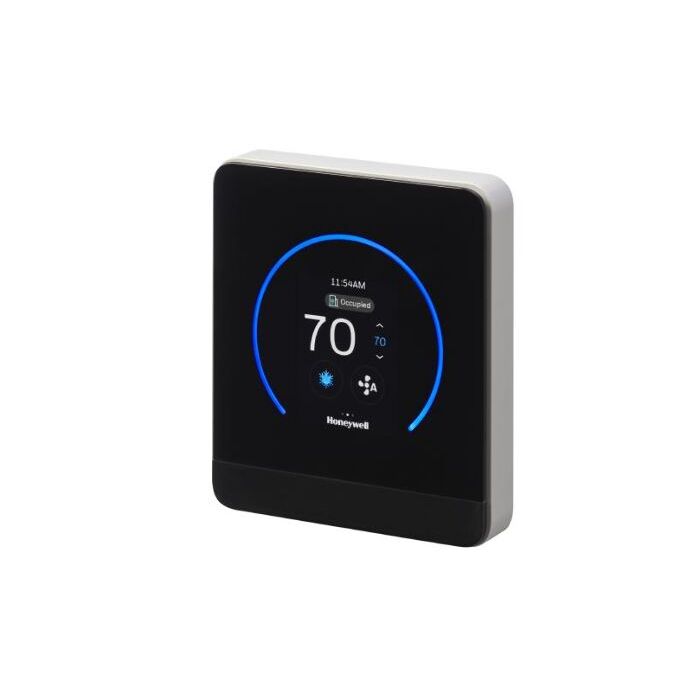

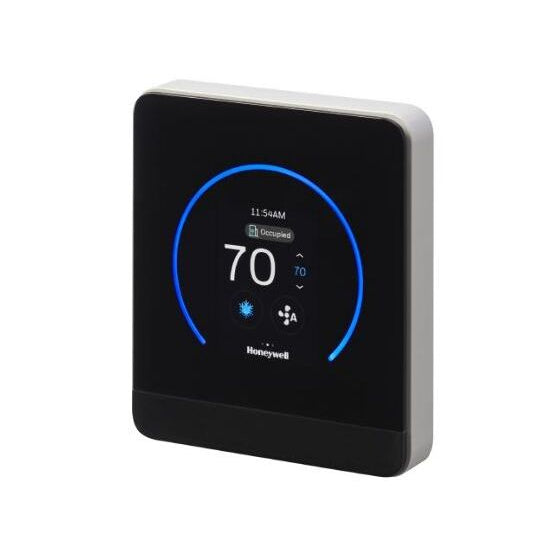

TC300 Connected Commercial Thermostat, 2 Pipe or 4 Pipe Fan Coil Application, BACnet MS/TP, Modbus RTU and Sylk Communication Network, Includes Color Display

$246.60 $586.92

Shipping calculated at checkout.

In stock (352 units)

Usually ships next day

FREE SHIPPING

Description

TC300 thermostat models are advanced, highly configurable devices providing building automation connectivity well suited for commercial building applications. Supported equipment types include 2/4-Pipe FCU, 1H/1C conventional, and 2H/1C heat pump plus water source heat pump.

Product Specifications

Name	Value
Ambient temperature	32 - 122 °F
Category	Zone and Room Controllers
Color	Grey
Communication interface	RS485 BACnet MS/TP Modbus RTU
Configuration	FCU - 4 Pipe/2 Pipe, 2H/1C Heat Pump (air/ water source), 1H/1C Conventional
Data Sheet	Download
Installation Guide	Download
Input voltage	24 VAC
Product category	Thermostats & Controllers
Product subcategory	Zone & Room Controllers
Series	TC300
Short desc	TC300 Connected Commercial Thermostat, 2 Pipe or 4 Pipe Fan Coil Application, BACnet MS/TP, Modbus RTU and Sylk Communication Network, Includes Color Display
Supplier part number	TC300B-G

Features and Benefits

Multi-speed or variable speed fan | On/off, floating, modulating, or 6-way valves | FCU dehumidification with reheat option | Hybrid changeover mode ensures greater comfort for 2-pipe systems during system transitions | 2H/1C Heat Pump Air/Water source and 1H/1C Conventional plus humidification/dehumidification | Energy saving supply-air temperature control using ASHRAE guideline 36-2021, Sec. 5.22 | Remote control and monitoring via mobile user app (wireless variants) | Building automation integration via BACnet® MS/TP, MODBUS, or BACnet IP (wireless variants) | Water source heat pump optional water valve control and proof of waterflow with compressor lockout | Flexible configurations for nearly every 2-pipe and 4-pipe fan coil or single stage heat/cool application
