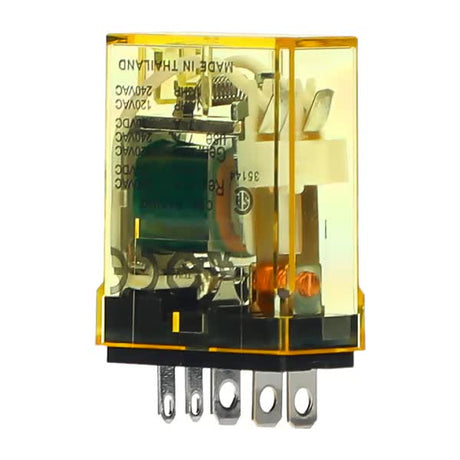

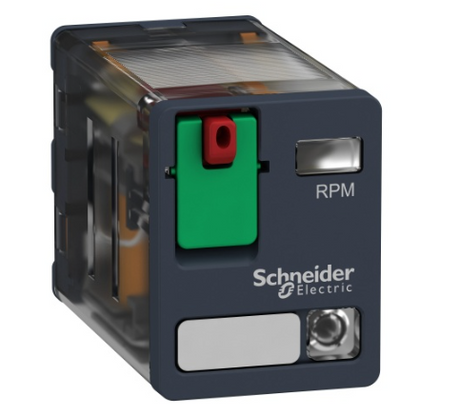

How do relays and contactors differ?

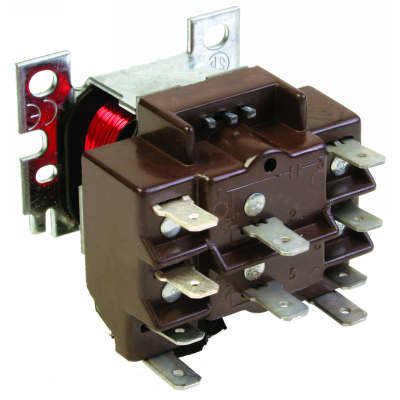

While relays and contactors both control electrical circuits, they differ in capacity and the loads they’re designed to switch. Control relays are commonly used for low-power control signals. On the other hand, contactors are designed to handle higher-current loads and directly switch power to motors, compressors, and other equipment. If you’re controlling a thermostat or sensor signal, you likely need a relay. For switching motor power, specify a contactor.

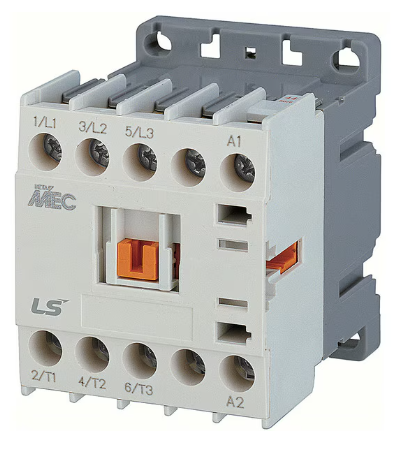

What should I look for when selecting a contactor?
The right contactor contributes to reliable HVAC operation, reduces the risk of downtime, and protects your equipment investment. Here are some specifications to consider:
- Coil voltage: Matching the contactor's coil voltage to your control circuit supports reliable activation.
- Pole count and configuration: Single-pole, double-pole, and three-pole contactors accommodate different wiring requirements based on the number of circuits you need to control.
- Definite purpose (DP) vs. general-purpose contactors: Most residential and light commercial compressor and condenser fan replacements call for a definite purpose contactor. General-purpose NEMA and IEC contactors are typically reserved for larger three-phase motor loads and industrial control panels; confirm which category your application calls for before ordering, since they're not always interchangeable.
- Amperage rating: Your contactor's continuous current rating must meet or exceed the motor's full-load amperage (FLA) for safe operation. But FLA alone isn't the whole picture: the contactor also needs to reliably make and break the motor's locked rotor amps (LRA) — the inrush current on every start — since this repeated inrush, not steady-state FLA, is what typically wears out contacts on compressor and condenser fan circuits. Also confirm the contactor's rating is based on the correct load type (motor/inductive loads are typically rated lower than resistive loads at the same physical contact size). Undersized contactors may overheat and fail prematurely.
- NEMA vs. IEC standards: National Electrical Manufacturers Association (NEMA) contactors are commonly selected for durable, general-purpose motor control applications where standardized sizing and broader safety margins are priorities. International Electrotechnical Commission (IEC) contactors are typically more compact and application-specific, with ratings selected around the motor, duty cycle, and installation needs.
How can I spot a failing HVAC contactor?
Your HVAC contactor may display signs that it is failing:
- A buzzing sound from the outdoor unit often indicates worn contacts struggling to close.
- If your system won't start despite the thermostat calling for cooling, the contactor may be stuck open or burned out.
- Visible charring, pitting, or a burnt smell near the unit can also indicate a contactor issue that needs prompt attention.
Catching these symptoms early and ordering a replacement can help prevent complete system failure during peak demand. Contactors carry line voltage on the load side even when the control circuit is off, so always disconnect and verify zero energy at the disconnect before inspecting, testing, or replacing one.
