What is the difference between a humidity sensor, transmitter, and controller? The distinction between these components matters when specifying equipment:
A humidity sensor is the sensing element that detects moisture in the air.
A humidity transmitter combines the sensor with electronics that convert the reading into a standardized output signal, such as 0-10 VDC or 4-20 mA, that your building automation system can read directly.

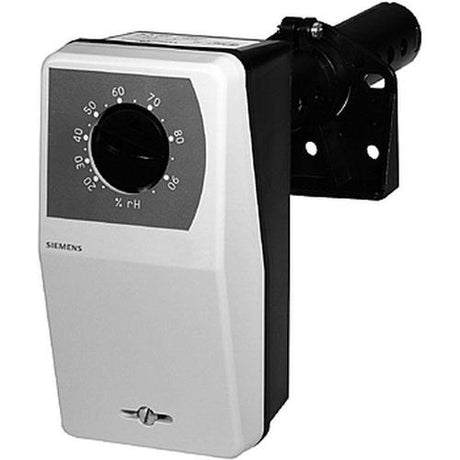

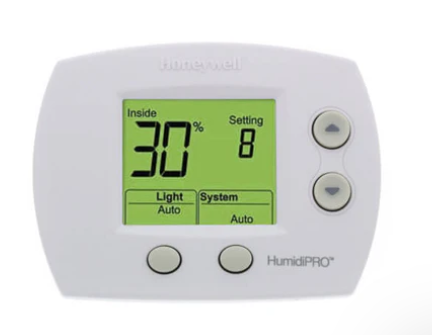

A humidity controller adds control logic and relay outputs to operate humidification or dehumidification equipment without requiring a separate control system.
What should I look for when selecting humidity controls?
When selecting humidity control equipment, start with these specifications:

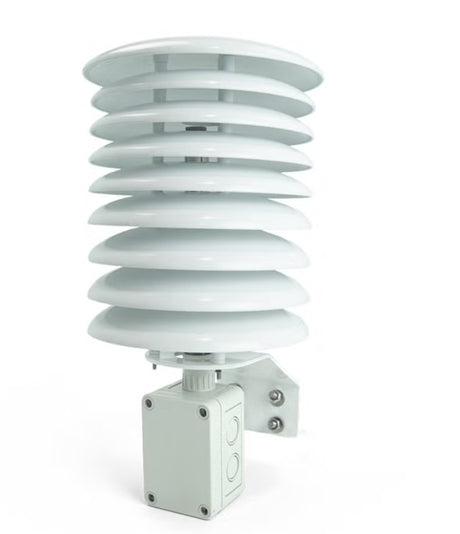

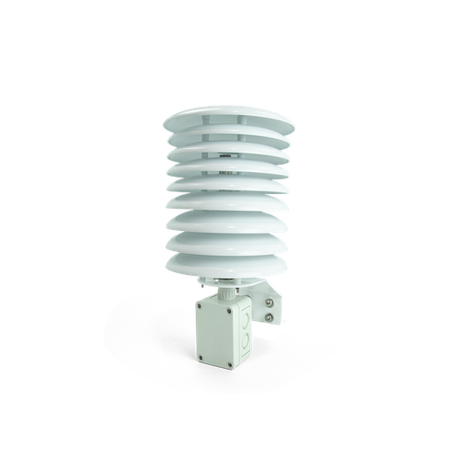

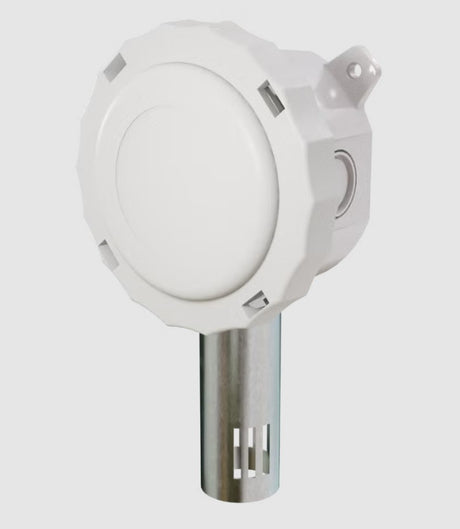

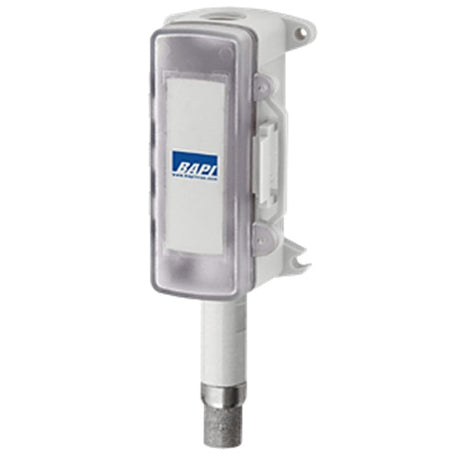

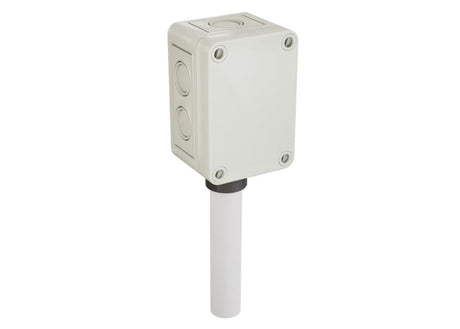

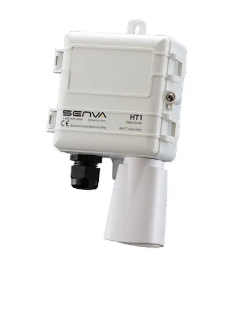

- Determine mounting location: Wall-mount transmitters monitor occupied space conditions. Duct-mount models measure supply or return air within your HVAC system, and outdoor-rated units need NEMA 4X or IP65 enclosures for economizer applications.
- Match accuracy to your application: ±3% RH is appropriate for general comfort control. Laboratories, cleanrooms, and other controlled environments may require ±1-2% RH precision depending on their application requirements
- Confirm output compatibility: Analog signals (0-10 VDC, 4-20 mA) integrate with most control systems. Digital protocols, such as BACnet and Modbus, suit building management platforms that require diagnostic data. Controllers with relay outputs provide stand-alone operation.
- Consider combined measurement: Many transmitters integrate both humidity and temperature sensing in a single unit, reducing wiring complexity and installation time. Since relative humidity is temperature-dependent, this combination also matters for accuracy: if you need calculated values like dew point, the co-located temperature reading needs to be accurate too, not just the RH element.
How do I choose between duct-mounted and wall-mounted humidity transmitters?

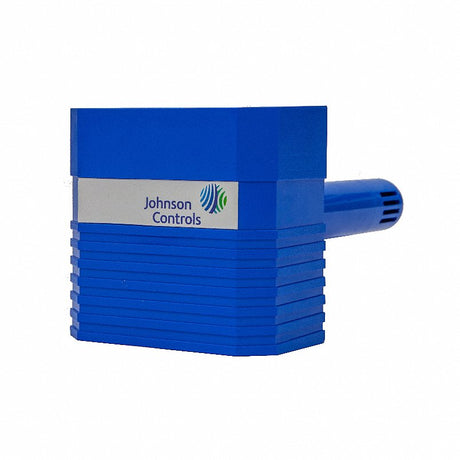

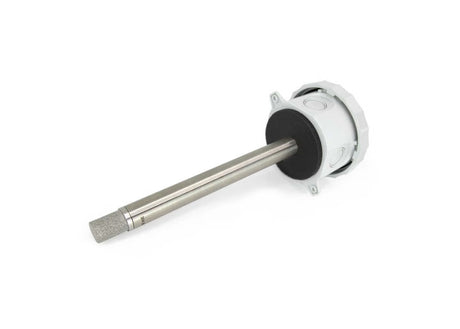

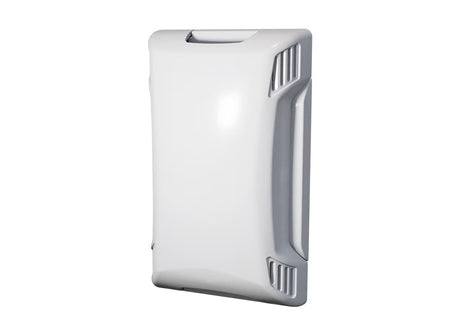

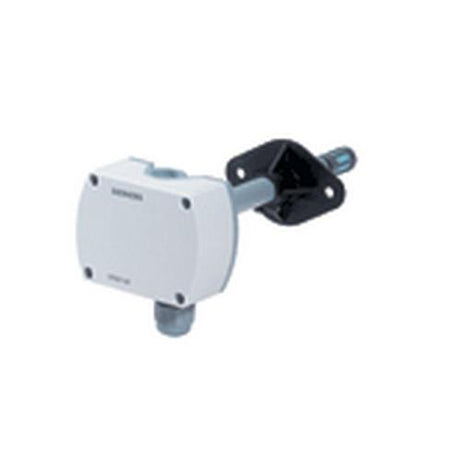

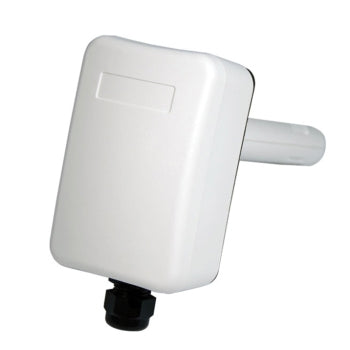

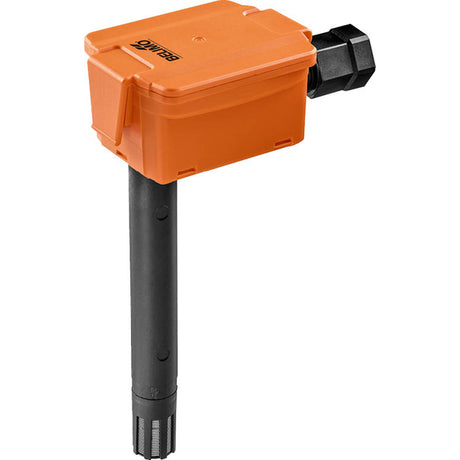

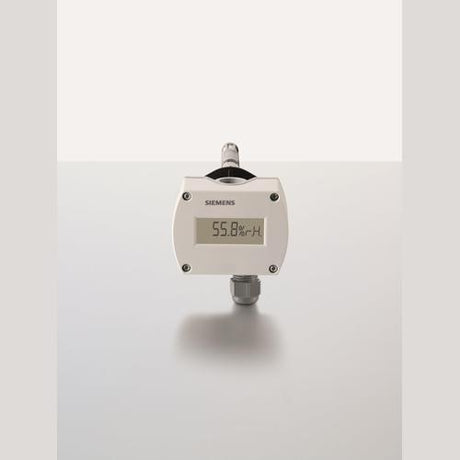

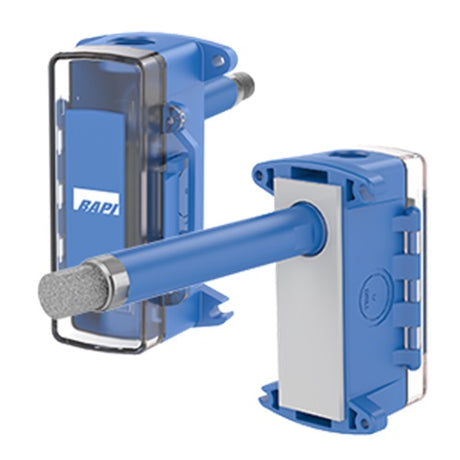

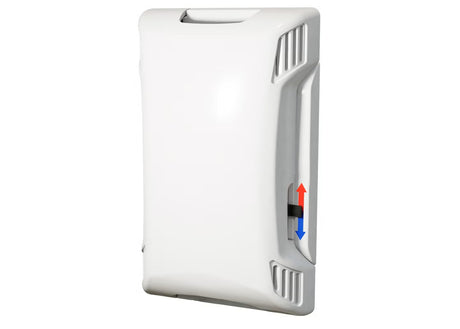

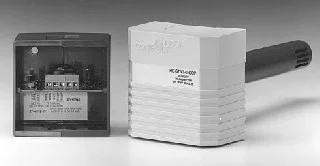

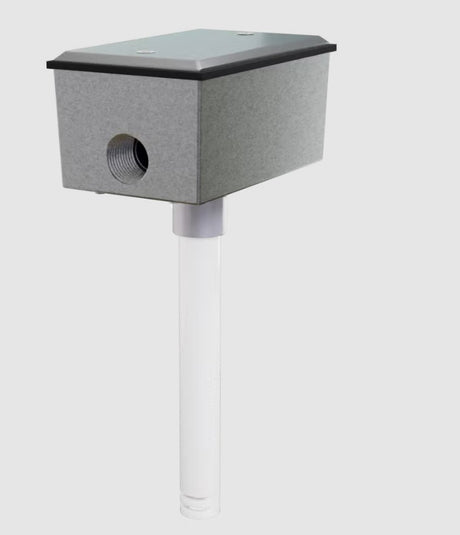

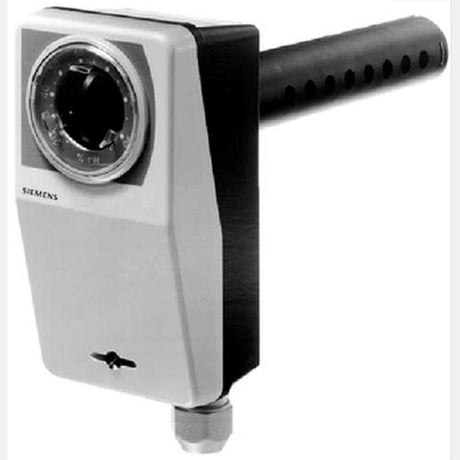

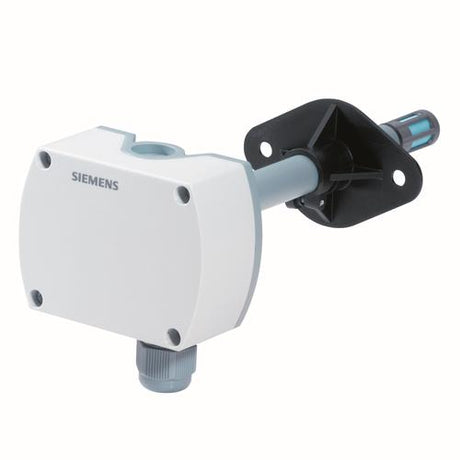

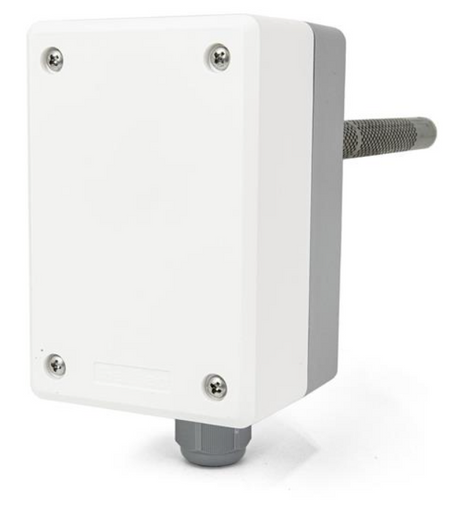

Duct-mounted transmitters measure airflow conditions within the HVAC system to control humidification equipment, economizer dampers, or dehumidification processes. Wall-mount transmitters track conditions in occupied spaces for zone-level control and occupant comfort. For complete system visibility, install transmitters at both locations.
When should I replace a humidity sensor or transmitter?
Consider replacing a humidity sensor or transmitter if readings drift from actual conditions, the device responds slowly to humidity changes, or your control system shows inconsistent data. Physical damage, corrosion, contamination, or repeated calibration issues can also indicate it’s time for a replacement. Matching the replacement part to your system’s mounting location, output signal, and accuracy needs helps maintain reliable humidity control.
