What should I look for when selecting a level sensor?
- Point vs. continuous measurement: Point-level sensors trigger an alert when the liquid reaches a specific height, making them ideal for high-level alarms or low-level pump protection. Continuous-level sensors, including level transmitters, provide real-time measurements across the full range.

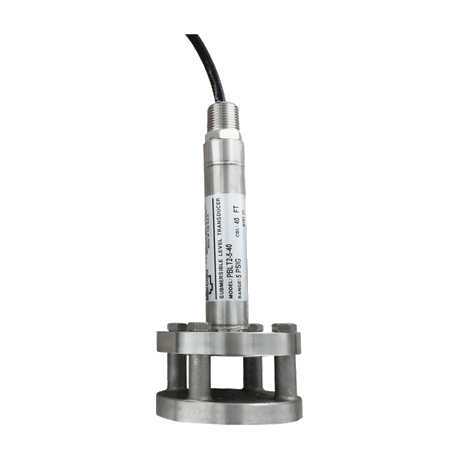

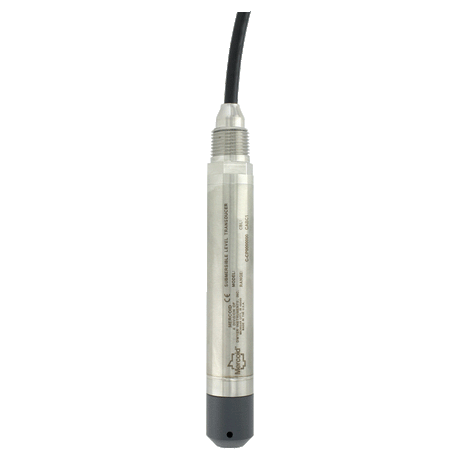

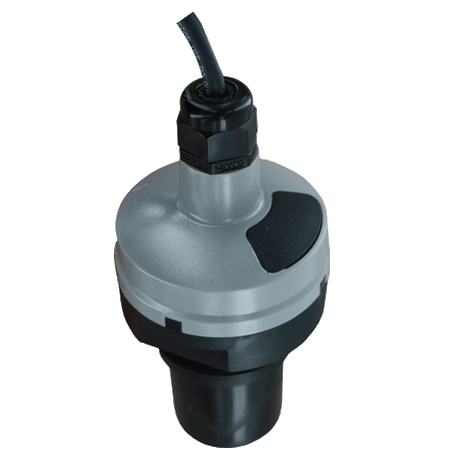

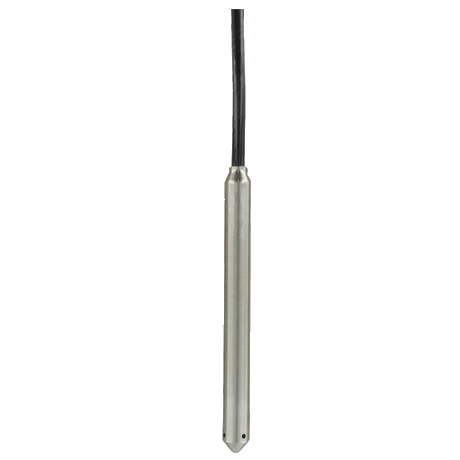

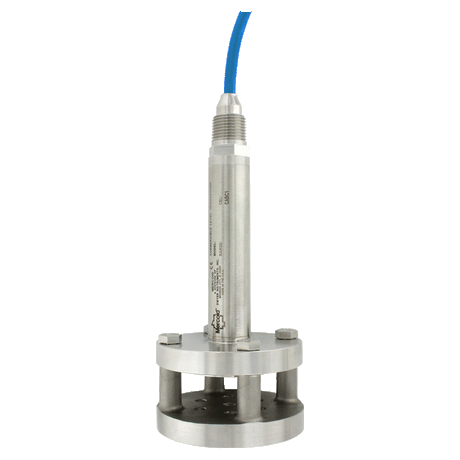

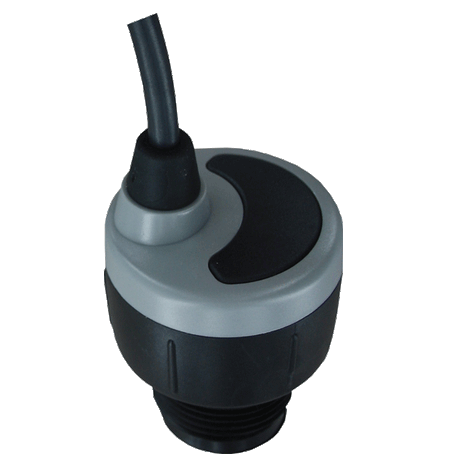

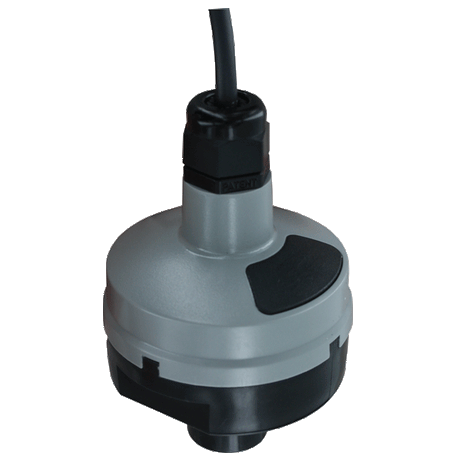

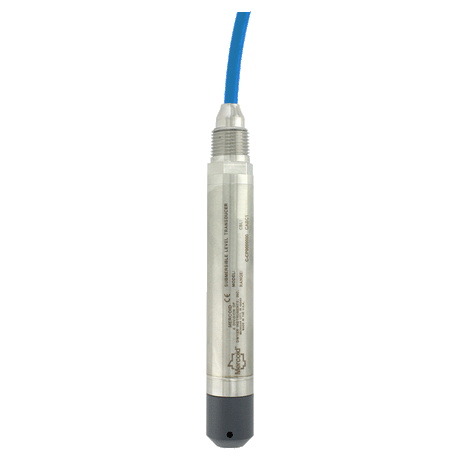

- Sensing technology: A float switch offers simple, reliable operation for basic applications where liquid surface contact isn't a concern. Capacitive and ultrasonic sensors offer alternatives for challenging media, depending on the application and installation requirements. Submersible transmitters may be suitable for use in deep tanks, sumps, and wastewater systems where direct immersion delivers optimal accuracy.
- Application environment: Consider your operating conditions carefully. Temperature extremes, pressure ratings, and electrical area classifications all play critical roles in sensor selection.
- Output requirements: Modern building automation systems typically integrate with 4-20 mA analog outputs or digital communication protocols such as BACnet or Modbus. Ensure your sensor provides compatible signaling for seamless BAS integration and reliable data transmission to control equipment. Some facilities also pair water leak detectors with a level switch to monitor tanks, sump basins, or condensate collection points.
What's the difference between a float switch and a level transmitter?

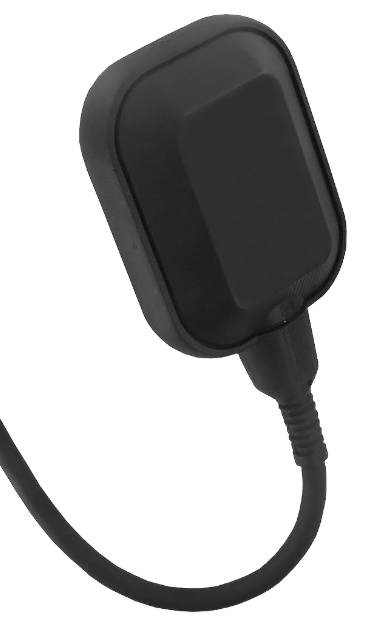

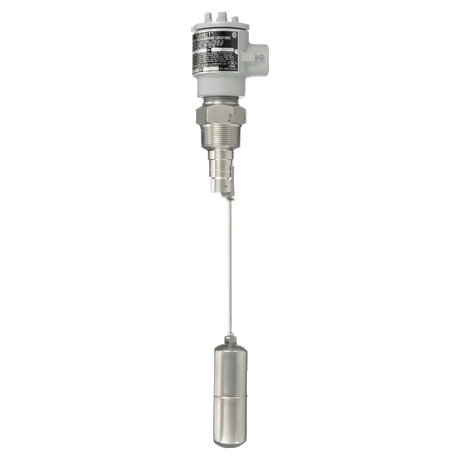

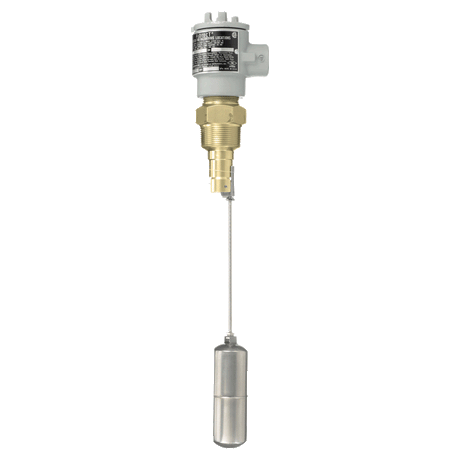

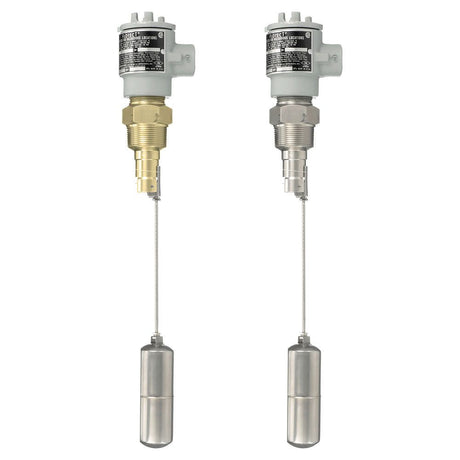

A float switch provides simple on/off control at a predetermined level. It operates through a mechanical switching action when the float rises or falls.
A level transmitter provides continuous measurement data as an analog signal. You can monitor exact liquid levels in real time and integrate sophisticated control strategies into your building automation system.
Can a liquid level sensor work in condensate applications?

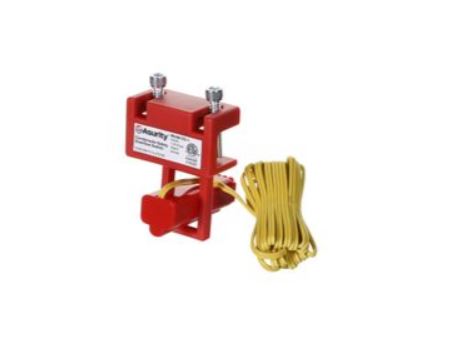

Yes, many sensors can perform well in HVAC condensate applications. Compact float switches, specifically designed for condensate pans, protect equipment from overflow. These specialized sensors accommodate the unique challenges of condensate systems, including:
- Limited mounting space
- Slightly acidic water chemistry
- The need for reliable operation in continuous-duty cycles
