What should I look for when choosing a temperature sensor or transmitter?
Sensor Type
- Resistance temperature detector (RTD): RTD sensors deliver exceptional accuracy and stability across wide temperature ranges, making them ideal for applications requiring precise control.
- Thermistor sensors offer cost-effective solutions for applications where moderate accuracy meets requirements. Their high sensitivity enables rapid response in HVAC controls, though they typically serve narrower temperature ranges.
Output Signal
- Not every sensor requires a transmitter. Many room and duct sensors are direct-wired, passive thermistor or RTD elements that your building automation controller reads natively, with no separate transmitter needed. A transmitter becomes necessary when a sensor must feed a standardized signal to a controller or PLC that doesn't accept a raw resistance input, or when the run between sensor and controller is long enough that a raw resistance signal would degrade.
Mounting and Application

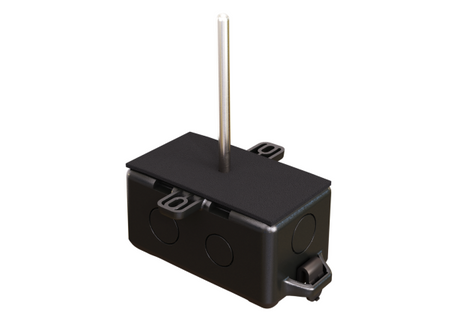

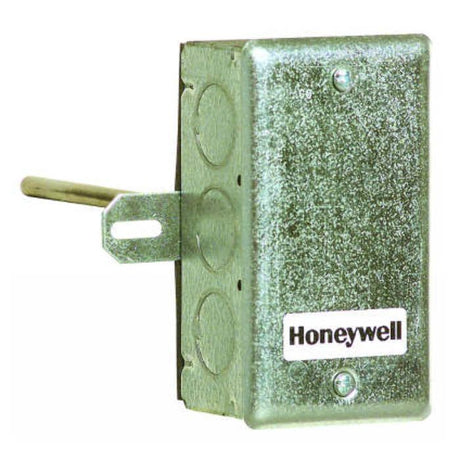

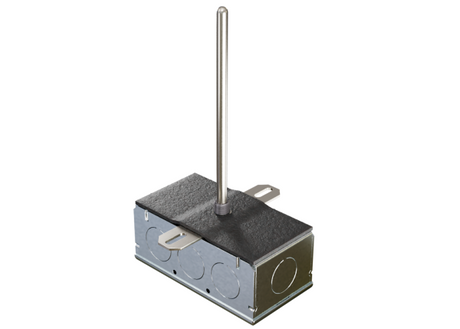

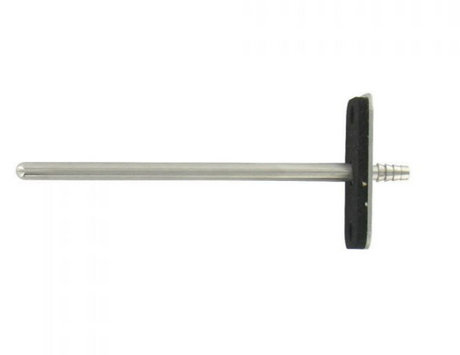

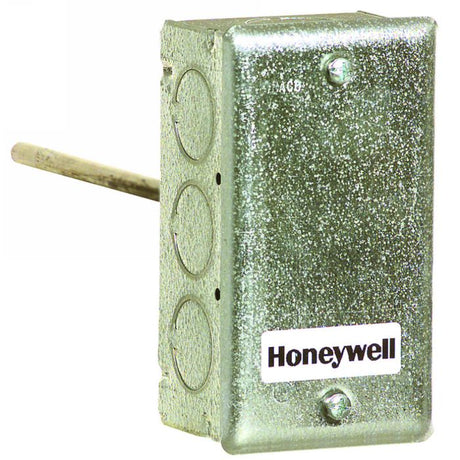

- Duct temperature sensor: Designed for measuring air temperature within ductwork, these sensors feature appropriately sized probes.

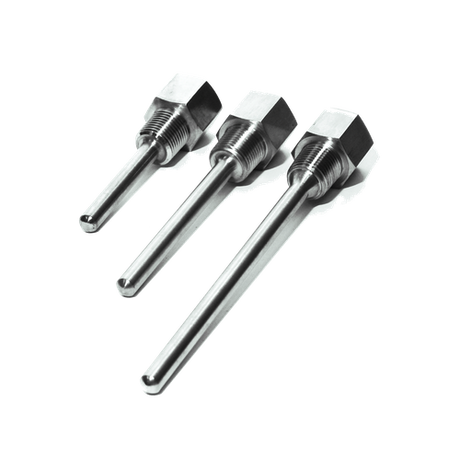

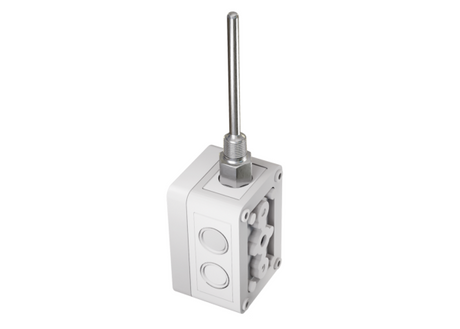

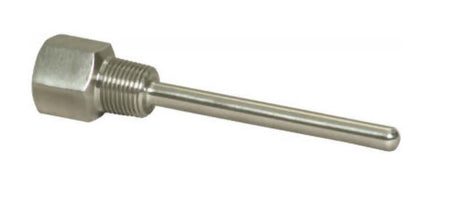

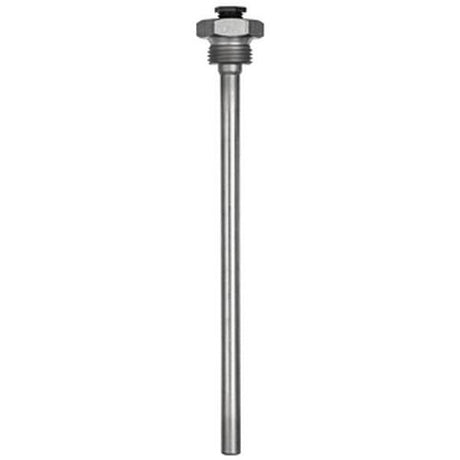

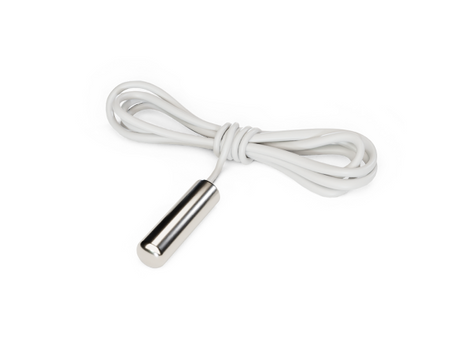

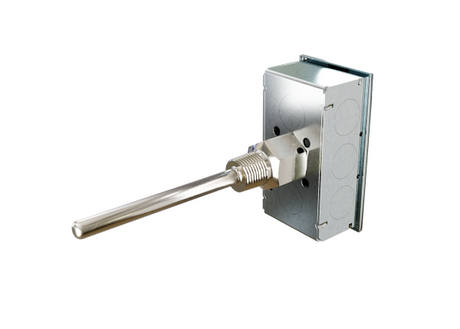

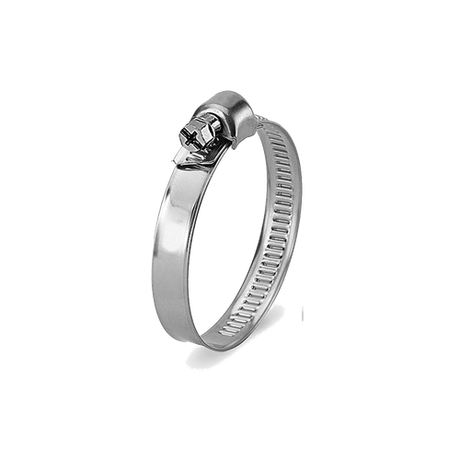

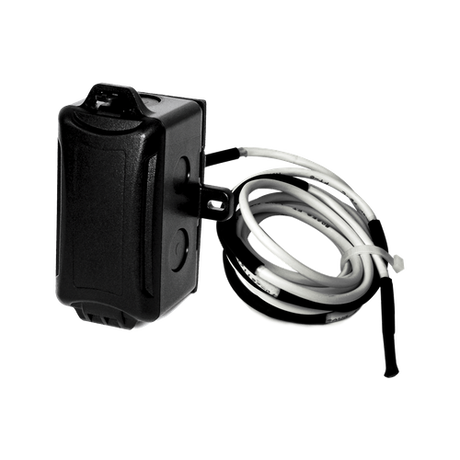

- Pipe temperature sensor: These sensors monitor water temperature in heating and cooling loops, utilizing strap-on mounting for noninvasive installation or immersion wells for direct contact and faster response.

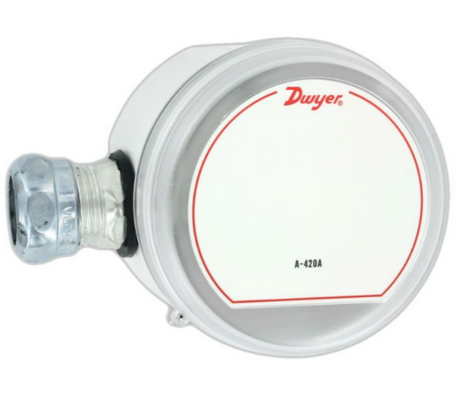

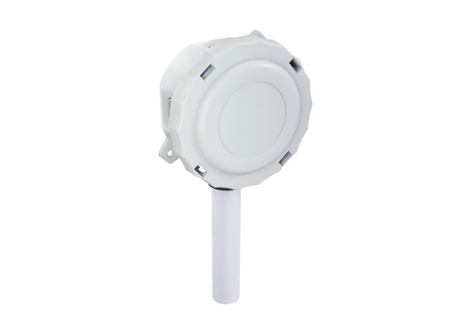

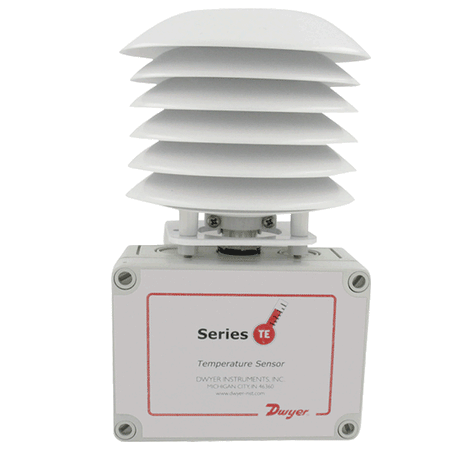

- Outdoor air temperature (OAT) sensor: Housed in a weatherproof enclosure with a sun shield to protect the sensing element from solar radiation and moisture, delivering the accurate reading your reset schedules and economizer control sequences depend on.

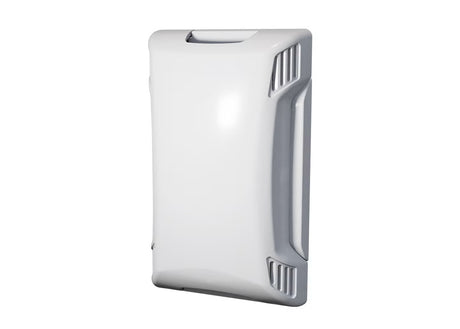

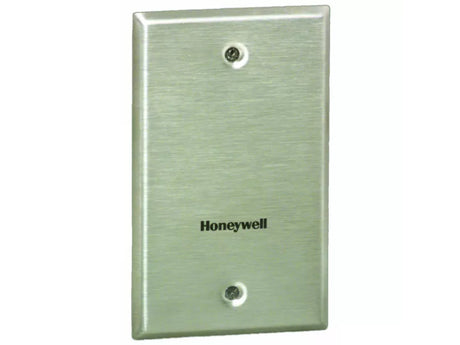

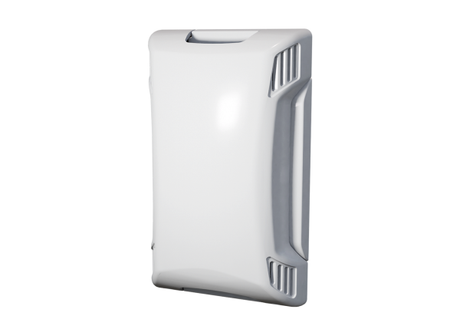

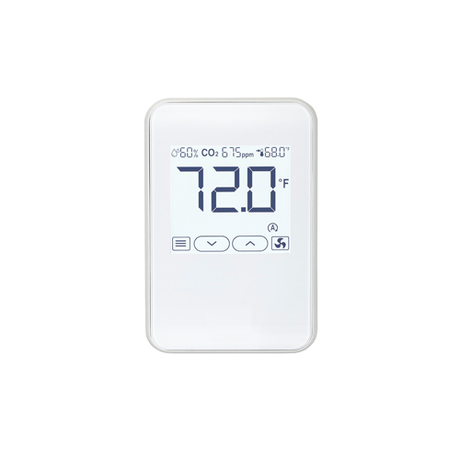

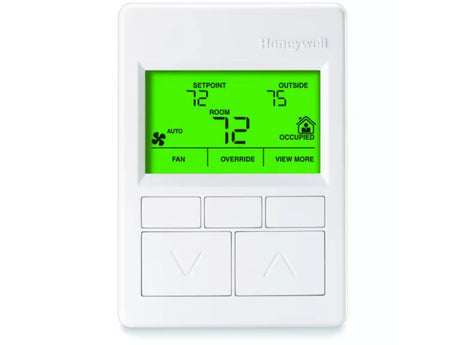

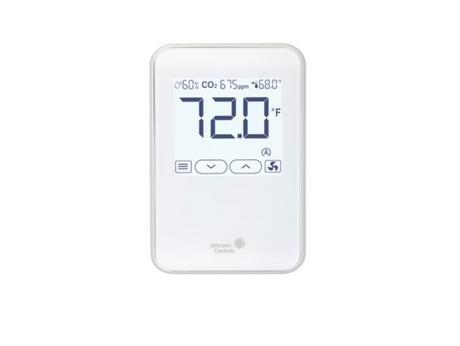

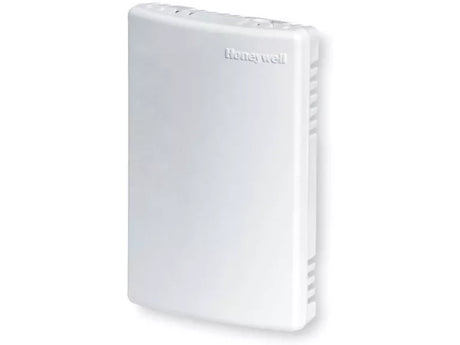

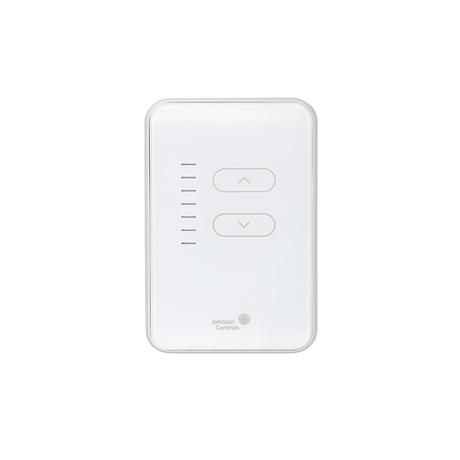

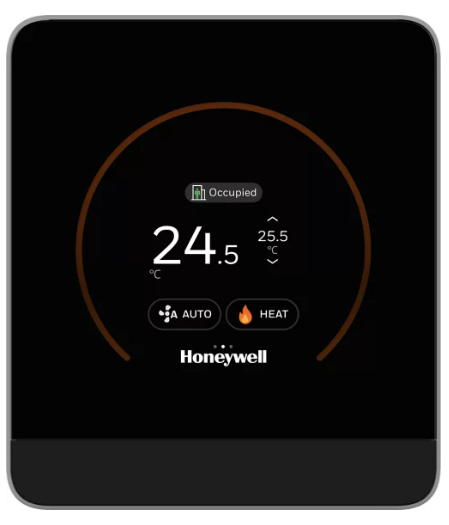

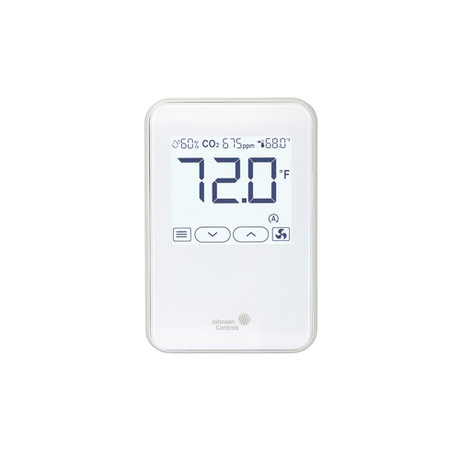

- Room/space temperature sensor: Wall-mounted for occupied spaces, available with options such as a setpoint dial, override button, display, or combined humidity sensing depending on the application.
What is the difference between a Pt100 and a Pt1000 sensor?
Both are RTD sensors that use platinum sensing elements. The designation indicates resistance at 0°C. Pt100 temperature sensors measure 100 ohms, while Pt1000 sensors measure 1,000 ohms. Use Pt1000 sensors in applications requiring long wire runs, as their higher base resistance minimizes errors from lead wire resistance. Because of this reduced sensitivity to lead wire resistance and lower self-heating error, Pt1000 has become the more common choice in building automation generally, not just on the longest runs.

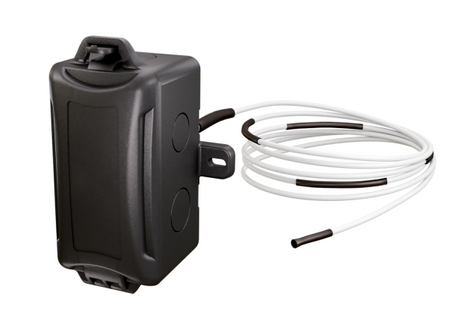

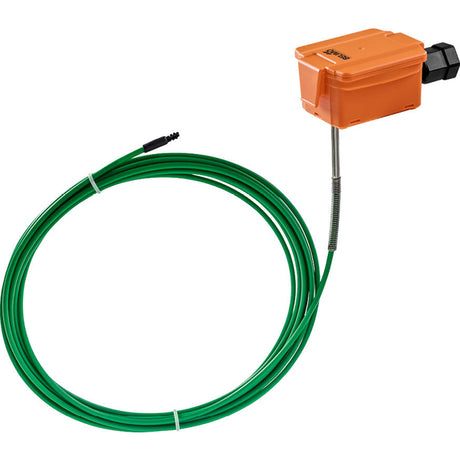

When should I use an averaging temperature sensor?

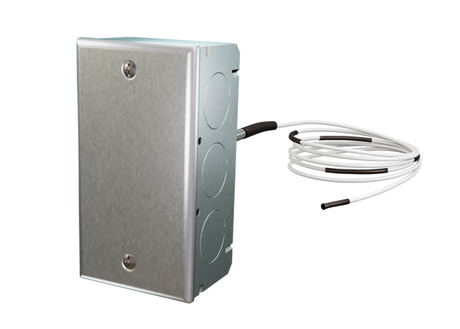

Use an averaging duct temperature sensor in large ducts or air handling units where air stratification occurs. The extended sensing element spans the entire duct cross-section to measure true average temperature, giving your building automation system accurate data for optimal fan speeds, damper control, and energy efficiency.
