Dampers & Actuators | SKU: GEB146.1U

GEB146.1U | Siemens | Dampers & Actuators

Name: GEB146.1U
Brand: Siemens
SKU: SIE-GEB1461U
Price: 336.55 USD
Availability: InStock

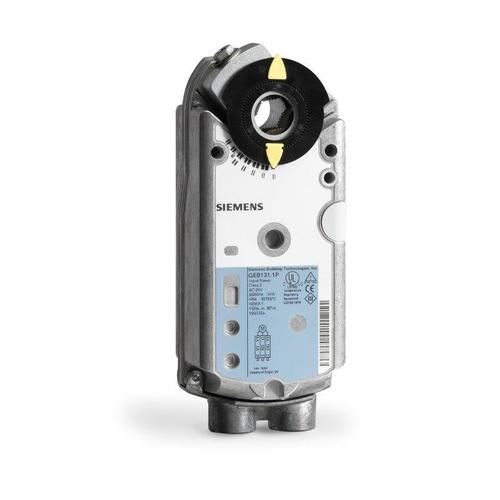

OpenAir GEB, Damper Actuator, 90 Degree, 132 Inch-lb, Non-Spring Return, 24 VAC

$336.55 $690.25

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

Damper actuator non-spring return, 177 in-lb, 2-position/Floating control. 24VAC/DC and dual adjustable built-in auxiliary switches . For use on control dampers

Product Specifications

Name	Value
Actuator type	Rotary
Ambient temperature	-25 to 130 deg F
Application	HVAC dampers
Cable length	3 ft
Control input	Floating control/2-position
Control type	Two-Position / Floating
Country of origin	USA
Data Sheet	Download
Installation Instructions	Download
Enclosure material	Die-cast aluminum alloy
Enclosure type	NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Fail safe	Non-Spring Return
Height	7.56
Length	2.36
Mounting type	Direct Coupled
Power supply	24 VAC
Product category	Dampers & Actuators
Product subcategory	Non-Spring Return Damper Actuators
Rotation	90 Deg
Running time	150 seconds
Short desc	OpenAir GEB, Damper Actuator, 90 Degree, 132 Inch-lb, Non-Spring Return, 24 VAC
Supplier part number	GEB146.1U
Torque	132 in-lbs
Type	Damper Actuator - Non-Fail Safe
Voltage	24 VAC/DC
Width	3.23

Features and Benefits

{'Features_and_Benefits_1': 'Cable Length 3 Foot', 'Features_and_Benefits_2': 'Power Consumption , Watts, VA Rating', 'Features_and_Benefits_3': 'Maximum Temperature 130 F'}
