Dampers & Actuators | SKU: GEB136.1U

GEB136.1U | Siemens | Dampers & Actuators

Name: GEB136.1U
Brand: Siemens
SKU: SIE-GEB1361U
Price: 264.13 USD
Availability: InStock

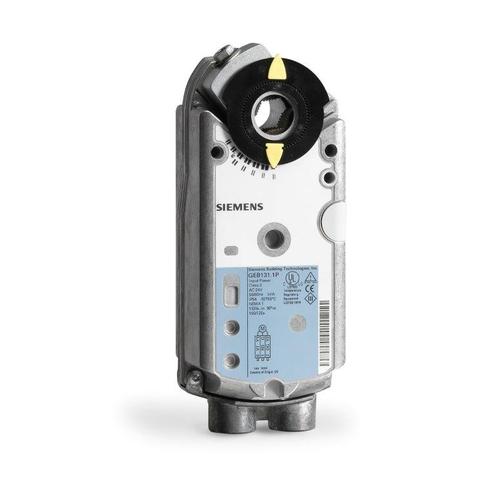

OpenAir GEB, Damper Actuator, 90 Degree, 132 Inch-lb, Non-Spring Return, 24 VAC

This product is no longer available

Functional Alternatives

Direct Coupled Actuator, Non-Spring Return, 175 lbs-Inch, 20 Nm, 24 VAC, Floating, 2-Position (SPDT), 2x Auxiliary Switch

Brand: Honeywell

SKU: MN6120A1200

Ready to ship:

Lead time: 5 days

See details

Description

OpenAir GEB Series Electric Damper Actuator, rotary, non-spring return, 132 in-lb (15 Nm), 24 Vac/dc, floating control, 125 sec run time, dual auxiliary switches

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-25°F to 131°F
Application	HVAC Dampers
Control input	Floating control/2-position
Data Sheet	Download
Enclosure type	NEMA 1, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Fail safe	Non-Spring Return
Height	7.56 in
Length	2.48 in
Mounting type	Direct-Coupled
Power supply	24 VAC
Product category	Dampers & Actuators
Product subcategory	Non-Spring Return Damper Actuators
Rotation	90 Deg
Running time	125 Second
Series	OpenAir GEB
Short desc	OpenAir GEB, Damper Actuator, 90 Degree, 132 Inch-lb, Non-Spring Return, 24 VAC
Supplier part number	GEB136.1U
Torque	132 in-lbs
Type	Damper Actuator - Non-Fail Safe
Web eligible	N
Width	3.19 in

Features and Benefits

{'Features_and_Benefits_1': 'Self-centering shaft adapter', 'Features_and_Benefits_2': 'Mechanically adjustable span between 0 and 90°', 'Features_and_Benefits_3': 'Pre-wired connection cables', 'Features_and_Benefits_4': 'Three-position and modulating control models', 'Features_and_Benefits_5': 'Adjustable offset and span on select models'}
