Dampers & Actuators | SKU: GCA156.1U

GCA156.1U | Siemens | Dampers & Actuators

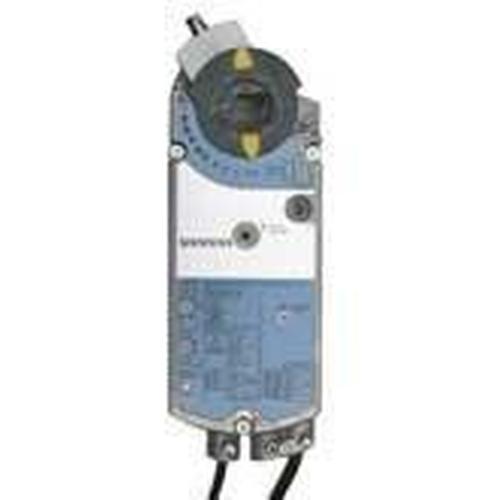

Name: GCA156.1U
Brand: Siemens
SKU: SIE-GCA1561U
Price: 586.97 USD
Availability: InStock

OpenAir GCA, Damper Actuator, 90 Degree, 160 Inch-lb, Spring Return, 24 VAC/DC

$586.97 $1,203.88

Shipping calculated at checkout.

In stock (3 units)

Usually ships next day

FREE SHIPPING

Description

OpenAir GCA Series Electric Damper Actuator, rotary, spring return, 160 in-lb (18 Nm), 24 Vac/dc, 0-10/2-10 Vdc control, 90 sec run time, position feedback, signal inversion, dual auxiliary switches

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-25°F to 130°F
Application	HVAC Dampers
Control input	0-10VDC/2-10VDC
Data Sheet	Download
Installation Instructions	Download
Enclosure type	NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Fail safe	Spring Return
Height	11.81 in
Length	2.69 in
Mounting type	Direct-Coupled
Power supply	24 VAC/VDC
Product category	Dampers & Actuators
Product subcategory	Spring Return Damper Actuators
Rotation	90 Deg
Running time	90 Second
Series	OpenAir GCA
Short desc	OpenAir GCA, Damper Actuator, 90 Degree, 160 Inch-lb, Spring Return, 24 VAC/DC
Supplier part number	GCA156.1U
Torque	160 in-lbs
Type	Spring Return
Web eligible	Y
Width	3.94 in

Features and Benefits

{'Features_and_Benefits_1': 'Brushless DC motor technology with stall protection', 'Features_and_Benefits_2': 'Bi-directional fail-safe spring return', 'Features_and_Benefits_3': 'Patented self-centering shaft coupling', 'Features_and_Benefits_4': 'Manual override', 'Features_and_Benefits_5': '5° preload as shipped from factory', 'Features_and_Benefits_6': 'Offset and span adjustment models available', 'Features_and_Benefits_7': 'Models available with dual, independently adjustable auxiliary switches', 'Features_and_Benefits_8': 'UL and cUL listed'}
