Dampers & Actuators | SKU: GBB136.1U

GBB136.1U | Siemens | Dampers & Actuators

Name: GBB136.1U
Brand: Siemens
SKU: SIE-GBB1361U
Price: 287.11 USD
Availability: InStock

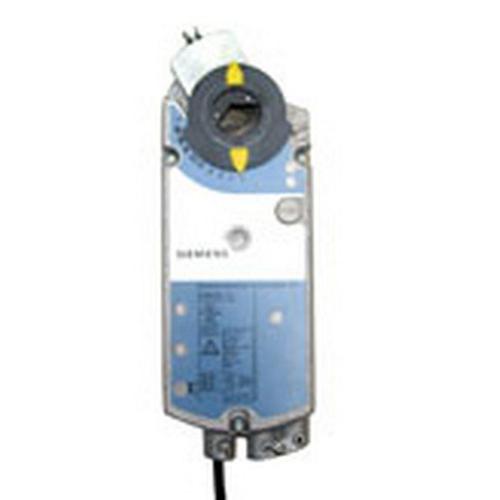

OpenAir GBB, Damper Actuator, 90 Degree, 221 Inch-lb, Non-Spring Return, 24 VAC

This product is no longer available

Functional Alternatives

Direct Coupled Actuator, Non-Spring Return, 175 lbs-Inch, 20 Nm, 24 VAC, Floating, 2-Position (SPDT), 2x Auxiliary Switch

Brand: Honeywell

SKU: MN6120A1200

Ready to ship:

Lead time: 5 days

See details

Description

OpenAir GBB Series Electric Damper Actuator, rotary, non-spring return, 221 in-lb (25 Nm), 24 Vac/dc, floating control, 125 sec run time, dual auxiliary switches

Product Specifications

Name	Value
Actuator type	Electric
Ambient temperature	-25°F to 131°F
Application	HVAC Dampers
Control input	Floating control/2-position
Data Sheet	Download
Enclosure type	NEMA 2, die-cast aluminum alloy enclosure, IP54 according to EN 60 529
Fail safe	Non-Spring Return
Height	11.81 in
Length	2.66 in
Mounting type	Direct-Coupled
Power supply	24 VAC
Product category	Dampers & Actuators
Product subcategory	Non-Spring Return Damper Actuators
Rotation	90 Deg
Running time	150 Second
Series	OpenAir GBB
Short desc	OpenAir GBB, Damper Actuator, 90 Degree, 221 Inch-lb, Non-Spring Return, 24 VAC
Supplier part number	GBB136.1U
Torque	221 in-lbs
Type	Damper Actuator - Non-Fail Safe
Voltage	24 VAC
Width	3.94 in

Features and Benefits

{'Features_and_Benefits_1': 'Unique self-centering shaft coupling', 'Features_and_Benefits_2': 'All-metal housing', 'Features_and_Benefits_3': 'Manual override', 'Features_and_Benefits_4': '5° preload as shipped from factory', 'Features_and_Benefits_5': 'Mechanical range adjustment capability', 'Features_and_Benefits_6': 'Easily visible position indicator', 'Features_and_Benefits_7': 'Models available with dual, independently adjustable auxiliary switches', 'Features_and_Benefits_8': 'All modulating models offer built-in feedback'}
