Ball Valves | SKU: 599-10359

599-10359 | Siemens | Control Valves & Actuators

Name: 599-10359
Brand: Siemens
SKU: SIE-59910359
Price: 189.17 USD
Availability: InStock

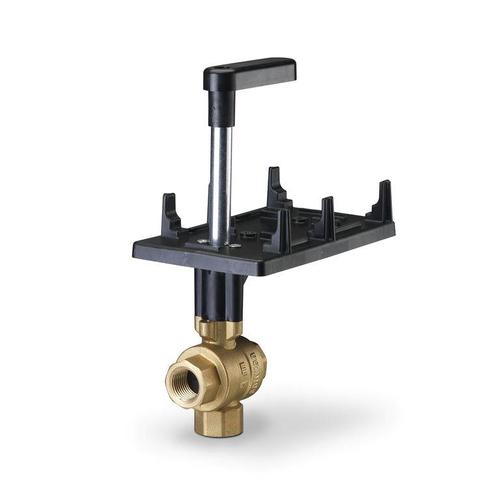

Ball Valve, 3/4 Inch, 3-Way Mixing/Diverting, 10 Cv, Modified Equal-Percentage

$189.17 $388.02

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

This 599 Series 3-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in air handlers, convectors, fan coil units, unit conditioners, radiation and reheat coils. This 3/4-inch valve is 10 Cv, with nickel-plated brass ball and brass stem.

Product Specifications

Name	Value
Ansi class	ANSI 250/600 WOG
Close off pressure	200 PSI
Connection type	Female NPT
Data Sheet	Download
Installation Instructions	Download
Flow characteristic	Modified Equal Percentage
Flow coefficient	10 Cv
Fluid type	Chilled or hot water up to 50% glycol
Material	Forged Brass
Pattern	3 Way
Product category	Control Valves & Actuators
Product subcategory	Ball Valves
Series	Siemens
Short desc	Ball Valve, 3/4 Inch, 3-Way Mixing/Diverting, 10 Cv, Modified Equal-Percentage
Size	3/4 in
Supplier part number	599-10359
Valve pattern	3-Way Mixing
Valve trim	Plated Brass Ball and Stem
Valve type	Ball

Features and Benefits

{'Features_and_Benefits_1': 'Actuator and plate can be rotated (90-degree increments)', 'Features_and_Benefits_2': 'Universal mounting plate.', 'Features_and_Benefits_3': 'Blow-out proof stem withstands high pressure.', 'Features_and_Benefits_4': 'Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem.', 'Features_and_Benefits_5': 'Can be used as either a mixing or a diverting valve.', 'Features_and_Benefits_6': '200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.', 'Features_and_Benefits_7': 'ANSI 250 valve body rating.'}
