Ball Valves  | SKU: 599-10315S

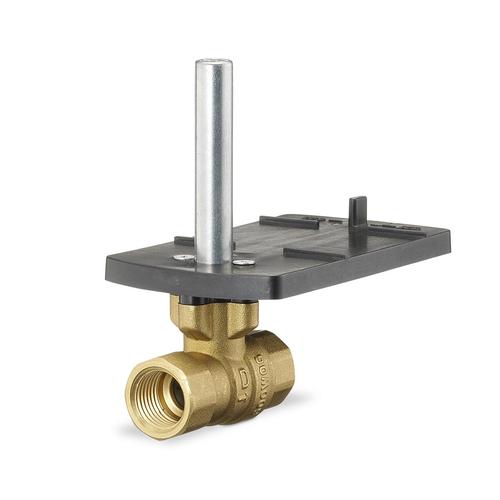

599-10315S | Siemens | Control Valves & Actuators

Ball Valve, 1 Inch, 2-Way Normally Open, 40 Cv, Equal-Percentage
$193.00 $395.82
Shipping calculated at checkout.

599-10315S is backordered and will ship as soon as it is back in stock.

Delivery

Out of stock
FREE SHIPPING

Description

This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 40 Cv, equal percentage flow characteristic, with stainless steel ball and stem, and an operating handle that can manually operate the valve in the event of power failure.

Product Specifications

Name Value
Ansi class ANSI 250/600 WOG
Category Ball Valves
Close off pressure 200 PSI
Connection type Female NPT
Data Sheet Download
Flow characteristic Equal Percentage
Flow coefficient 40 Cv
Fluid type Chilled or hot water up to 50% glycol
Material Brass
Pattern 2 Way
Product category Control Valves & Actuators
Product subcategory Ball Valves
Series Siemens
Short desc Ball Valve, 1 Inch, 2-Way Normally Open, 40 Cv, Equal-Percentage
Size 1 Inch
Supplier part number 599-10315S
Valve trim Stainless Steel Ball and Stem
Valve type Ball Valve

Features and Benefits

Standoffs provide a thermal barrier between the actuator and the mounting plate. | Actuator and plate can be rotated (90-degree increments). | 200 psi close-off with ANSI Class IV leakage for all line sizes and actuators. | Blow-out proof stem withstands high pressure. | Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem. | Universal mounting plate. | ANSI 250 valve body rating.
