Ball Valves | SKU: 599-10313

599-10313 | Siemens | Control Valves & Actuators

Name: 599-10313
Brand: Siemens
SKU: SIE-59910313
Price: 168.37 USD
Availability: InStock

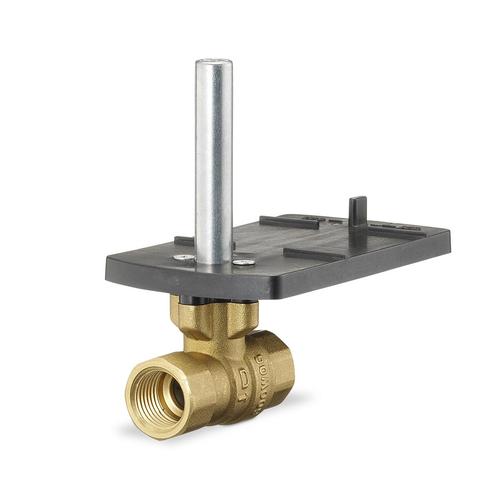

Ball Valve, 1 Inch, 2-Way Normally Closed, 16 Cv, Equal-Percentage

$168.37 $345.32

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1-inch valve is 16 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Product Specifications

Name	Value
Ansi class	ANSI 250/600 WOG
Close off pressure	200 PSI
Connection type	Female NPT
Data Sheet	Download
Installation Instructions	Download
Flow characteristic	Equal Percentage
Flow coefficient	16 Cv
Fluid type	Chilled or hot water up to 50% glycol
Material	Brass
Pattern	2 Way
Product category	Control Valves & Actuators
Product subcategory	Ball Valves
Series	Siemens
Short desc	Ball Valve, 1 Inch, 2-Way Normally Closed, 16 Cv, Equal-Percentage
Size	1 in
Supplier part number	599-10313
Valve pattern	2-Way Normally Closed
Valve trim	Chrome-Plated Ball with Brass Stem
Valve type	Ball

Features and Benefits

{'Features_and_Benefits_1': 'Standoffs provide a thermal barrier between the actuator and the mounting plate.', 'Features_and_Benefits_2': 'Actuator and plate can be rotated (90-degree increments).', 'Features_and_Benefits_3': '200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.', 'Features_and_Benefits_4': 'Blow-out proof stem withstands high pressure.', 'Features_and_Benefits_5': 'Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem.', 'Features_and_Benefits_6': 'Universal mounting plate.', 'Features_and_Benefits_7': 'ANSI 250 valve body rating.'}
