Ball Valves | SKU: 599-10301

599-10301 | Siemens | Control Valves & Actuators

Name: 599-10301
Brand: Siemens
SKU: SIE-59910301
Price: 76.66 USD
Availability: InStock

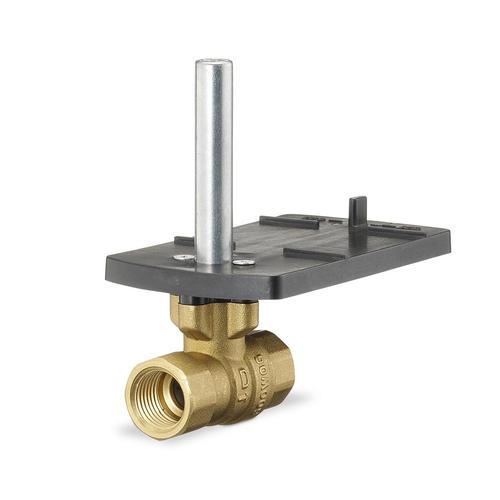

Ball Valve, 1/2 Inch, 2-Way Normally Open, 0.63 Cv, Equal-Percentage

$76.66 $157.20

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

This 599 Series 2-way ball valve is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 1/2-inch valve is 0.63 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Product Specifications

Name	Value
Ansi class	ANSI 250/600 WOG
Category	Ball Valves
Close off pressure	200 PSI
Connection type	Female NPT
Data Sheet	Download
Flow characteristic	Equal Percentage
Flow coefficient	0.63 Cv
Fluid type	Chilled or hot water up to 50% glycol
Material	Brass
Pattern	2 Way
Product category	Control Valves & Actuators
Product subcategory	Ball Valves
Series	Siemens
Short desc	Ball Valve, 1/2 Inch, 2-Way Normally Open, 0.63 Cv, Equal-Percentage
Size	1/2 Inch
Supplier part number	599-10301
Valve trim	Chrome-Plated Ball with Brass Stem
Valve type	Ball Valve

Features and Benefits

{'Features_and_Benefits_1': 'ANSI 250 valve body rating.', 'Features_and_Benefits_2': '200 psi close-off with ANSI Class IV leakage for all line sizes and actuators.', 'Features_and_Benefits_3': 'Available with chrome-plated brass ball and brass stem or 316 stainless steel ball and stem.', 'Features_and_Benefits_4': 'Blow-out proof stem withstands high pressure.', 'Features_and_Benefits_5': 'Universal mounting plate.', 'Features_and_Benefits_6': 'Actuator and plate can be rotated (90-degree increments).', 'Features_and_Benefits_7': 'Standoffs provide a thermal barrier between the actuator and the mounting plate.'}
