Control Valves & Actuators | SKU: 599-06174

599-06174 | Siemens | Control Valves & Actuators

Name: 599-06174
Brand: Siemens
SKU: SIE-59906174
Price: 3715.28 USD
Availability: InStock

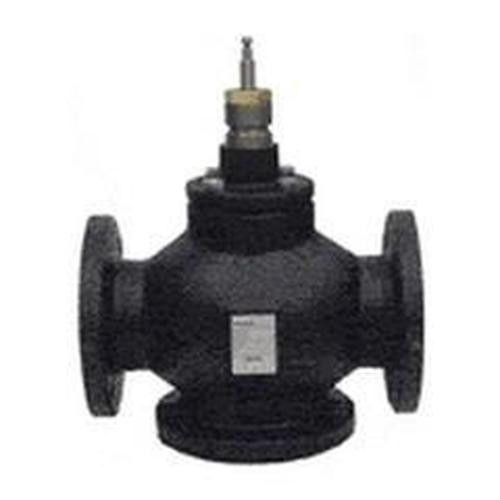

Flowrite 599 Series Globe Valve, 6 Inch, 400 Cv, 3-Way Mixing, Flanged, ANSI 250, Linear

$3,715.28 $7,620.11

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, flanged connections, 6" line size, 400 Cv flow rate and is ANSI Class 250.

Product Specifications

Name	Value
Ansi class	ANSI 250
Connection type	Flanged
Data Sheet	Download
Installation Instructions	Download
Flow characteristic	Linear
Flow coefficient	400 Cv
Height	15.5 in
Length	18.625
Product category	Control Valves & Actuators
Product subcategory	Flanged Valves
Short desc	Flowrite 599 Series Globe Valve, 6 Inch, 400 Cv, 3-Way Mixing, Flanged, ANSI 250, Linear
Size	6 in
Supplier part number	599-06174
Valve pattern	3-Way Mixing
Valve type	Globe

Features and Benefits

{'Features_and_Benefits_1': 'Max. recommended differential pressure for modulating service: 25 psi, 173 kPa', 'Features_and_Benefits_2': 'Stroke 1-1/2 in., 40 mm', 'Features_and_Benefits_3': 'Material, valve body Red brass CC491K (Rg5)', 'Features_and_Benefits_4': 'Linear', 'Features_and_Benefits_5': 'Water;Water with anti-freeze', 'Features_and_Benefits_6': 'Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet', 'Features_and_Benefits_7': '3-Way Mixing', 'Features_and_Benefits_8': 'Body Trim: Bronze; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring', 'Features_and_Benefits_9': 'ANSI 250'}
