Control Valves & Actuators | SKU: 599-06163

599-06163 | Siemens | Control Valves & Actuators

Name: 599-06163
Brand: Siemens
SKU: SIE-59906163
Price: 2694.81 USD
Availability: InStock

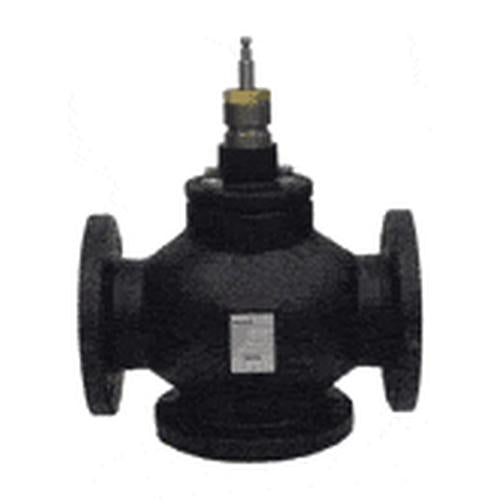

Flowrite 599 Series Globe Valve, 5 Inch, 250 Cv, 3-Way Mixing, Flanged, ANSI 125, Linear

$2,694.81 $5,527.13

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

The Flowrite 599 Series 3-Way Mixing Valve is designed to work with either pneumatic or electronic actuators. This valve has an iron body, brass trim, flanged connections, 5" line size, 250 Cv flow rate and is ANSI Class 125.

Product Specifications

Name	Value
Ansi class	ANSI 125
Connection type	Flanged
Data Sheet	Download
Installation Instructions	Download
Flow characteristic	Linear
Flow coefficient	250 Cv
Height	13.75 in
Length	15.75
Product category	Control Valves & Actuators
Product subcategory	Flanged Valves
Short desc	Flowrite 599 Series Globe Valve, 5 Inch, 250 Cv, 3-Way Mixing, Flanged, ANSI 125, Linear
Size	5 in
Supplier part number	599-06163
Valve pattern	3-Way Mixing
Valve type	Globe
Web eligible	Y

Features and Benefits

{'Features_and_Benefits_1': '3-Way Mixing', 'Features_and_Benefits_2': 'ANSI 125', 'Features_and_Benefits_3': 'Water;Water with anti-freeze', 'Features_and_Benefits_4': 'Body Trim: Bronze; Stem: Stainless Steel ASTM A582 Type 303; Packing: EPDM O-ring', 'Features_and_Benefits_5': 'Valve flange face-to-face dimensions meet ISA 75.03 standards, direct-coupled universal bonnet', 'Features_and_Benefits_6': 'Linear', 'Features_and_Benefits_7': 'Material, valve body Red brass CC491K (Rg5)', 'Features_and_Benefits_8': 'Stroke 1-1/2 in., 40 mm', 'Features_and_Benefits_9': 'Max. recommended differential pressure for modulating service: 25 psi, 173 kPa'}
