Data Center Products | SKU: 536-811

536-811 | Siemens | Temperature Sensors & Transmitters

Name: 536-811
Brand: Siemens
SKU: SIE-536811
Price: 23.85 USD
Availability: InStock

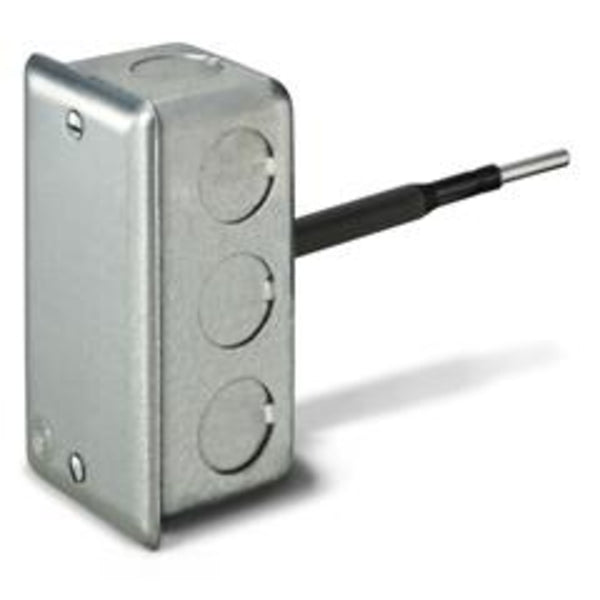

Duct Point Temperature Sensor, 100 kOhm Thermistor, 4 Inch Rigid Probe Length, Bracket Mount

$23.85 $48.93

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

This Rigid Duct Point Temperature Sensor Measures 4 Inch and Provides Input for Cost-Effective, Accurate Temperature Sensing to the Modular Building Controller (MBC), Remote Building Controller (RBC), Stand-Alone Control Unit (SCU), MPU and Terminal Equipment Controllers Via an 18 AWG Twisted, Shielded Cable Pair. The Sensor Resistance Varies Proportionally to the Temperature Being Measured and has an 100,000 Ohm Reference Resistance at 77 Degrees Fahrenheit.

Product Specifications

Name	Value
Application	Duct Sensor
Data Sheet	Download
Enclosure type	No Enclosure
Measurement range	-40 to 180 Deg F.
Mounting type	Duct Mount, Bracket Mount
Output signal	Resistance
Probe length	4 in
Product category	Temperature Sensors & Transmitters
Product subcategory	Duct
Sensing element	100K ohm Thermistor
Sensor type	100k Ohm Thermistor
Series	Siemens
Short desc	Duct Point Temperature Sensor, 100 kOhm Thermistor, 4 Inch Rigid Probe Length, Bracket Mount
Supplier part number	536-811
Temperature range	-40 to 180 deg F
Type	Duct Sensor

Features and Benefits

{'Features_and_Benefits_1': 'Responsive sensing helps track changes in duct air temperature.', 'Features_and_Benefits_2': 'A familiar installation process requires no special tools.'}
