Control Valves & Actuators | SKU: 171F-10314

171F-10314 | Siemens | Control Valves & Actuators

Name: 171F-10314
Brand: Siemens
SKU: SIE-171F10314
Price: 463.70 USD
Availability: InStock

Ball Valve Actuator Assembly, 2-Way Ball, 1 Inch, 25 Cv, Spring Return, Trim Material Chrome-Plated Brass

$463.70 $951.02

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

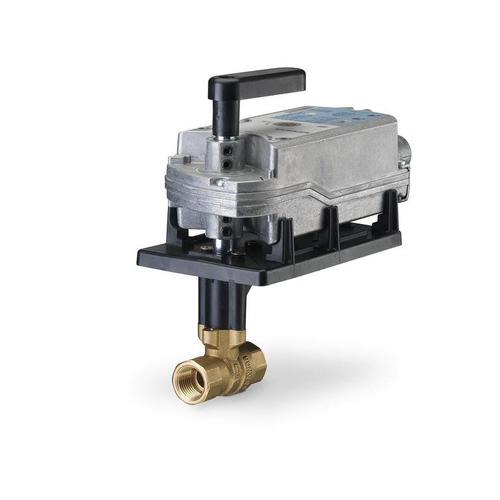

The 171F10314 is a 1 in 2-way normally open 599 Series ball valve assembly with an OpenAir floating spring-return (fail-safe) electric actuator. With a 25 Cv flow coefficient and a 200 psi close-off rating, the valve installs with female NPT end connections. A flow characterizer provides equal percentage flow control. Construction includes a forged brass body and a chrome-plated brass ball with brass stem.

Product Specifications

Name	Value
Actuator type	Electric
Close off pressure	200 PSI
Connection type	NPT
Control type	Floating control
Data Sheet	Download
Installation Guide	Download
Fail safe	Fail Safe
Flow characteristic	Equal-percentage
Flow coefficient	25 Cv
Fluid type	Chilled or hot water up to 50% glycol
Height	8.81 in
Length	8.69 in
Material	Forged Brass
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Rotation	90 Deg
Series	Siemens
Short desc	Ball Valve Actuator Assembly, 2-Way Ball, 1 Inch, 25 Cv, Spring Return, Trim Material Chrome-Plated Brass
Size	1 in
Supplier part number	171F-10314
Trim material	Chrome-Plated Brass
Valve pattern	2-Way Normally Open
Valve type	Ball
Voltage	24 VAC/VDC
Width	3.7 in

Features and Benefits

{'Features_and_Benefits_1': '200 psi close-off with ANSI Class IV leakage for all line sizes and actuators', 'Features_and_Benefits_2': 'Available with chrome-plated brass ball and brass stem or stainless steel ball and stem', 'Features_and_Benefits_3': 'Blow-out proof stem withstands high pressure', 'Features_and_Benefits_4': 'Universal mounting plate', 'Features_and_Benefits_5': 'Actuator and plate can be rotated in 90 degree increments', 'Features_and_Benefits_6': 'Standoffs provide a thermal barrier between the actuator and the mounting plate', 'Features_and_Benefits_7': 'Operating handle for manual operation'}
