Control Valves & Actuators | SKU: 171D-10328

171D-10328 | Siemens | Control Valves & Actuators

Name: 171D-10328
Brand: Siemens
SKU: SIE-171D10328
Price: 675.01 USD
Availability: InStock

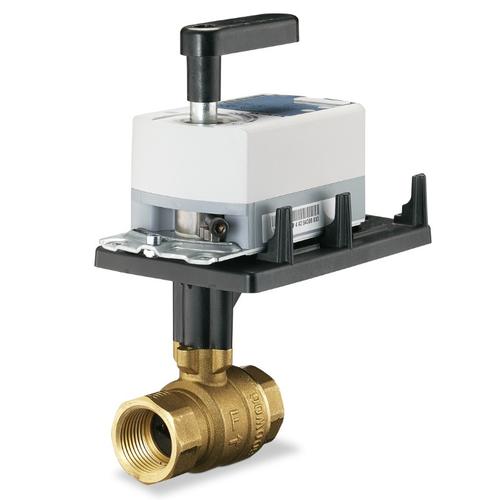

Ball Valve Actuator Assembly, 2-Way Ball, 2 Inch, 63 Cv, Non-Spring Return, Trim Material Chrome-Plated Brass

$675.01 $1,384.45

Shipping calculated at checkout.

In stock (1 units)

Usually ships next day

FREE SHIPPING

Description

This 599 Series 2-way ball valve with a 0-10 Vdc control fail-in-place actuator assembly, providing 200 psi close-off, is used to control hot or chilled water and up to 50% Glycol solution in convectors, fan coil units, unit conditioners, radiation and reheat coils. This 2-inch valve is 63 Cv, equal percentage flow characteristic, with chrome-plated brass ball and brass stem, and an operating handle that can manually operate the valve in the event of power failure.

Product Specifications

Name	Value
Actuator type	Electric
Category	Electric Actuator Valve Assemblies
Connection type	NPT
Control type	Modulating (0–10V / 4–20mA / Configurable)
Fail safe	Non Fail Safe
Flow coefficient	63 Cv
Inv mast uid	125508
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Siemens
Short desc	Ball Valve Actuator Assembly, 2-Way Ball, 2 Inch, 63 Cv, Non-Spring Return, Trim Material Chrome-Plated Brass
Size	2 in
Supplier part number	171D-10328
Valve pattern	2-Way Normally Open
Valve type	Ball
Variant weight	0.1
Voltage	24 VAC

Features and Benefits

{'Features_and_Benefits_1': 'Ball: Chrome-plated brass;Ball Seals: Glass filled PTFE with EPDM O-rings;Stem: Brass;Stem Seals: EPDM O-rings', 'Features_and_Benefits_2': 'Non-Spring Return', 'Features_and_Benefits_3': 'Control Signal Type 0...10 Vdc', 'Features_and_Benefits_4': 'Flow Characteristic Equal-Percentage', 'Features_and_Benefits_5': 'Trim Material Chrome-Plated Brass', 'Features_and_Benefits_6': 'Pressure Class 600 WOG / Close-off Pressure 200 PSI', 'Features_and_Benefits_7': 'Assembly Valve 599-10328 / Assembly Actuator GLB161.1P'}
