Control Valves & Actuators | SKU: 171D-10325

171D-10325 | Siemens | Control Valves & Actuators

Name: 171D-10325
Brand: Siemens
SKU: SIE-171D10325
Price: 482.88 USD
Availability: InStock

Ball Valve Actuator Assembly, 2-Way Ball, 11/2 Inch, 100 Cv, Non-Spring Return, Trim Material Chrome-Plated Brass

$482.88 $990.38

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

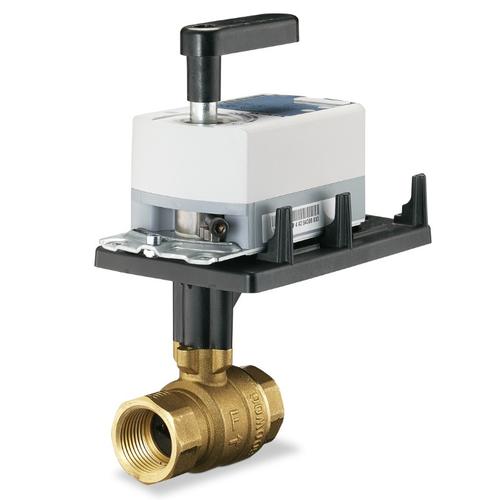

The 171D10325 is a 1-1/2 in 2-way 599 Series ball valve assembly with an OpenAir 0-10 VDC modulating fail-in-place electric actuator. With a 100 Cv flow coefficient and a 200 psi close-off rating, the valve installs with female NPT end connections. A flow characterizer provides equal percentage flow control. Construction includes a forged brass body and a chrome-plated brass ball with brass stem. The actuator is supplied with 3 ft wires.

Product Specifications

Name	Value
Actuator type	Electric
Close off pressure	200 PSI
Connection type	NPT
Control type	0-10 VDC
Data Sheet	Download
Installation Guide	Download
Fail safe	Non Fail Safe
Flow characteristic	Equal-percentage
Flow coefficient	100 Cv
Fluid type	Chilled or hot water up to 50% glycol
Height	9.25 in
Length	7.06 in
Material	Forged Brass
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Rotation	90 Deg
Series	Siemens
Short desc	Ball Valve Actuator Assembly, 2-Way Ball, 11/2 Inch, 100 Cv, Non-Spring Return, Trim Material Chrome-Plated Brass
Size	1 1/2 in
Supplier part number	171D-10325
Trim material	Chrome-Plated Brass
Valve pattern	2-Way Normally Open
Valve type	Ball
Voltage	24 VAC
Width	3.7 in

Features and Benefits

{'Features_and_Benefits_1': '200 psi close-off with ANSI Class IV leakage for all line sizes and actuators', 'Features_and_Benefits_2': 'Available with chrome-plated brass ball and brass stem or stainless steel ball and stem', 'Features_and_Benefits_3': 'Blow-out proof stem withstands high pressure', 'Features_and_Benefits_4': 'Universal mounting plate', 'Features_and_Benefits_5': 'Actuator and plate can be rotated in 90 degree increments', 'Features_and_Benefits_6': 'Standoffs provide a thermal barrier between the actuator and the mounting plate', 'Features_and_Benefits_7': 'Operating handle for manual operation'}
