Control Valves & Actuators | SKU: 171C-10366S

171C-10366S | Siemens | Control Valves & Actuators

Name: 171C-10366S
Brand: Siemens
SKU: SIE-171C10366S
Price: 603.69 USD
Availability: InStock

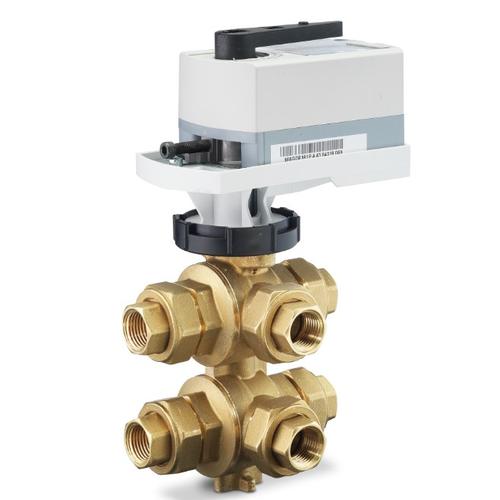

Ball Valve Actuator Assembly, 3-Way Ball, 11/4 Inch, 40 Cv, Non-Spring Return, Trim Material Stainless Steel

$603.69 $1,238.15

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

The 171C10366S is a 1-1/4 in 3-way 599 Series ball valve assembly with an OpenAir 0-10 VDC modulating fail-in-place electric actuator, suitable for mixing or diverting applications. With a 40 Cv flow coefficient and a 200 psi close-off rating, the valve installs with female NPT end connections. This full-port valve has no flow optimizer insert. Construction includes a forged brass body rated ANSI 250/600 WOG and a stainless steel ball and stem. Maximum operating differential pressure is 60 psi. The actuator is supplied with 3 ft wires.

Product Specifications

Name	Value
Actuator type	Electric
Ansi class	ANSI 250/600 WOG
Close off pressure	200 PSI
Connection type	NPT
Control type	0-10 VDC
Fail safe	Non Fail Safe
Flow coefficient	40 Cv
Fluid type	Chilled or hot water up to 50% glycol
Height	10.25 in
Length	7 in
Material	Forged Brass
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Rotation	90 Deg
Series	Siemens
Short desc	Ball Valve Actuator Assembly, 3-Way Ball, 11/4 Inch, 40 Cv, Non-Spring Return, Trim Material Stainless Steel
Size	1 1/4 in
Supplier part number	171C-10366S
Trim material	Stainless Steel
Valve pattern	3-Way Mixing/Diverting
Valve type	Ball
Voltage	24 VAC
Width	3 in

Features and Benefits

{'Features_and_Benefits_1': 'ANSI 250 valve body rating', 'Features_and_Benefits_2': 'Available with chrome-plated brass ball and brass stem or stainless steel ball and stem', 'Features_and_Benefits_3': 'May be used as either mixing or diverting valves', 'Features_and_Benefits_4': 'Shutoff up to 200 psi', 'Features_and_Benefits_5': 'Universal mounting plate', 'Features_and_Benefits_6': 'Blow-out proof stem withstands high pressure', 'Features_and_Benefits_7': 'Actuator and plate can be rotated', 'Features_and_Benefits_8': 'Standoffs provide a thermal barrier between the actuator and the mounting plate', 'Features_and_Benefits_9': 'Operating handle can manually operate the valve'}
