Data Center Products | SKU: VT7225

VT7225 | Viconics | Thermostats & Controllers

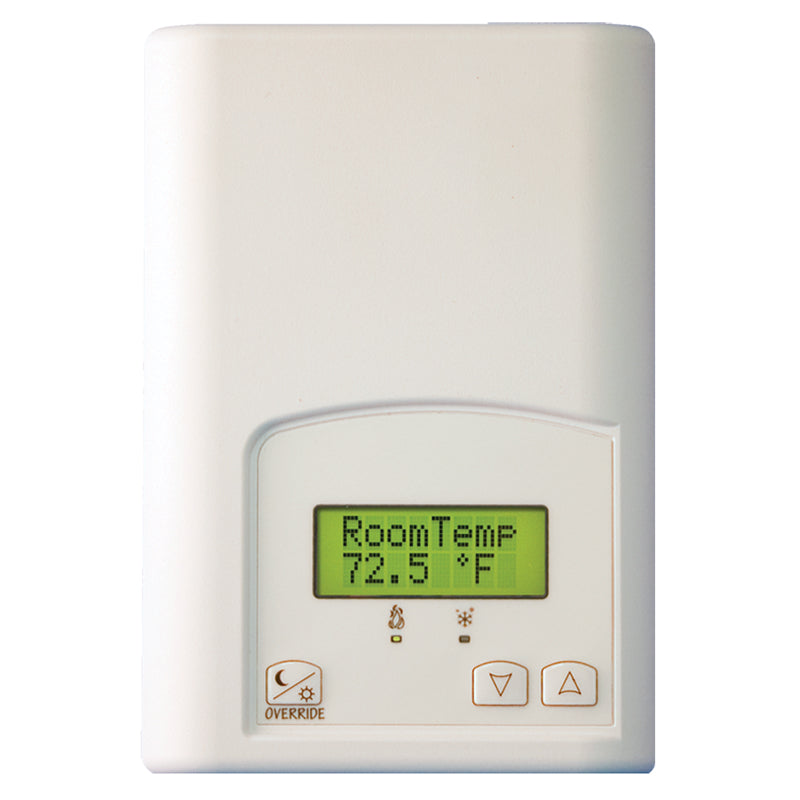

Name: VT7225
Brand: Viconics
SKU: SCH-VT7225
Price: 219.47 USD
Availability: InStock

Viconics, Modulating Electric Heat Controller, 0-10 VDC or PWM Output

$219.47 $447.73

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

The VT7225 series controllers are microcomputer-based, proportional and integral (PI) devices with one analog 0 to 10 Vdc output, one 8 Vdc and one 24 Vac proportioning pulsed output. The analog 0 to 10 Vdc modulating output can control the room or supply temperature by modulating directly a 0 to 10 Vdc SCR power controller. The Vdc and Vac pulsed outputs can control the room or supply temperature by modulating directly 4-32 Vdc triggered solid state relays (SSR's) using a time proportioning control algorithm on a 1 second time cycle.

Product Specifications

Name	Value
Color	Matte White
Country of origin	MX
Data Sheet	Download
Display type	LCD Screen
Height	0.49 in
Length	0.34 in
Product category	Thermostats & Controllers
Product subcategory	Non-Programmable
Series	Viconics
Short desc	Viconics, Modulating Electric Heat Controller, 0-10 VDC or PWM Output
Supplier part number	VT7225
Switch action	Analog 0-10VDC or PWM
Temperature range	32 to 122 Deg. F (0 to 50 Deg. C)
Thermostat type	Modulating Electric Heat Control
Voltage	20 to 30 VAC
Width	0.15 in

Features and Benefits

{'Features_and_Benefits_1': 'Room or Supply Control Applications', 'Features_and_Benefits_2': 'Night Setback Digital Input', 'Features_and_Benefits_3': 'VDC Pulsed Modulating Output', 'Features_and_Benefits_4': 'VAC Pulsed Modulating Output', 'Features_and_Benefits_5': '0 to 10 VDC Modulating Output'}
