Control Valves & Actuators | SKU: VT3341G13A020

VT3341G13A020 | Schneider Electric | Control Valves & Actuators

Name: VT3341G13A020
Brand: Schneider Electric
SKU: SCH-VT3341G13A020
Price: 159.53 USD
Availability: InStock

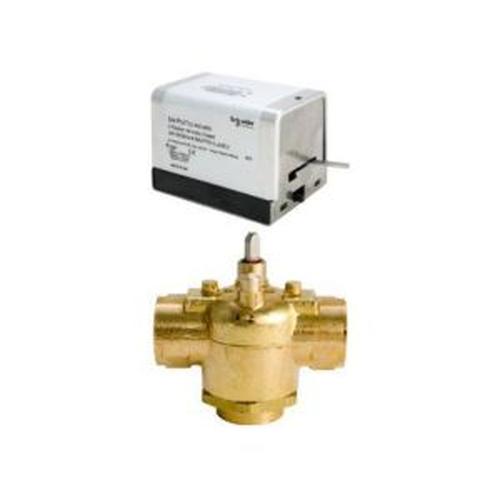

Schneider, 3/4 Inch, 3 Way Mixing/Diverting, Zone Valve, Flare, Brass, 1.5 Cv, 60 PSI, Actuator (AG13A020): Electric, 2 Position, Spring Return, Normally Closed, 24 VAC, Nema 1

$159.53 $325.44

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

The VT3341G13A020 is a 3/4 in 3-way mixing/diverting brass zone valve assembly with a 2-position spring-return electric actuator. With a 1.5 Cv flow coefficient and a 60 PSI close-off rating, the valve installs with flare end connections. The actuator runs on 24 VAC and fails closed. The assembly carries a NEMA 1 enclosure rating.

Product Specifications

Name	Value
Actuator type	Electric
Connection type	Flare
Control type	On/Off (2-Position)
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Enclosure type	NEMA 1
Fail safe	Spring Return
Flow coefficient	1.5 Cv
Height	2.36 in
Length	3.74 in
Material	Forged Brass
Power supply	24 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Schneider Electric
Short desc	Schneider, 3/4 Inch, 3 Way Mixing/Diverting, Zone Valve, Flare, Brass, 1.5 Cv, 60 PSI, Actuator (AG13A020): Electric, 2 Position, Spring Return, Normally Closed, 24 VAC, Nema 1
Size	3/4 in
Supplier part number	VT3341G13A020
Trim material	Brass
Valve pattern	3-Way Mixing/Diverting
Valve type	Zone
Width	3.35 in

Features and Benefits

{'Features_and_Benefits_1': 'Direct replacement for all existing two-position PopTop applications', 'Features_and_Benefits_2': 'Actuator mounts directly onto valve body without need for linkages or calibration', 'Features_and_Benefits_3': 'Spring return operation provides a fail-safe', 'Features_and_Benefits_4': 'Hysteresis synchronous motor for long life', 'Features_and_Benefits_5': 'Valve body rated for 400 psi static pressure'}
