Control Valves & Actuators | SKU: VT3213G13D020

VT3213G13D020 | Schneider Electric | Control Valves & Actuators

Name: VT3213G13D020
Brand: Schneider Electric
SKU: SCH-VT3213G13D020
Price: 139.88 USD
Availability: InStock

Schneider, Valve, 2 Position, 3 Way, 1/2 Inch Sweat, 208 V, General Close-Off

$139.88 $285.35

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

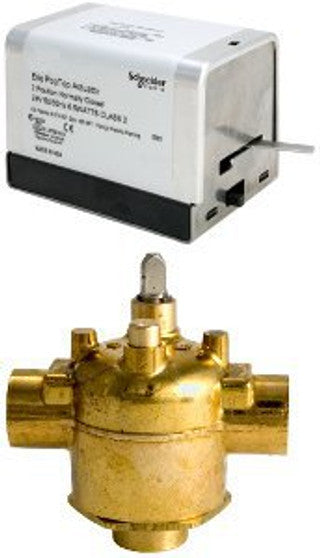

The VT3213G13D020 is a 1/2 in 3-way mixing/diverting zone valve assembly with a 2-position spring-return actuator. With a 4 Cv flow coefficient and a 25 PSI close-off rating, the valve installs with sweat end connections. The actuator runs on 208 VAC and fails closed.

Product Specifications

Name	Value
Connection type	Sweat
Control type	On/Off (2-Position)
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Fail safe	Spring Return
Flow coefficient	4 Cv
Height	2.36 in
Length	3.74 in
Material	Forged Brass
Power supply	208 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Assemblies
Series	Schneider Electric
Short desc	Schneider, Valve, 2 Position, 3 Way, 1/2 Inch Sweat, 208 V, General Close-Off
Size	1/2 in
Supplier part number	VT3213G13D020
Valve pattern	3-Way Mixing/Diverting
Valve type	Zone
Width	3.35 in

Features and Benefits

{'Features_and_Benefits_1': 'Direct replacement for all existing two-position PopTop applications', 'Features_and_Benefits_2': 'Actuator mounts directly onto valve body without need for linkages or calibration', 'Features_and_Benefits_3': 'Spring return operation provides a fail-safe', 'Features_and_Benefits_4': 'Hysteresis synchronous motor for long life', 'Features_and_Benefits_5': 'Valve body rated for 400 psi static pressure'}
