SXWSCDPSELXB | Schneider Electric | Temperature Sensors & Transmitters

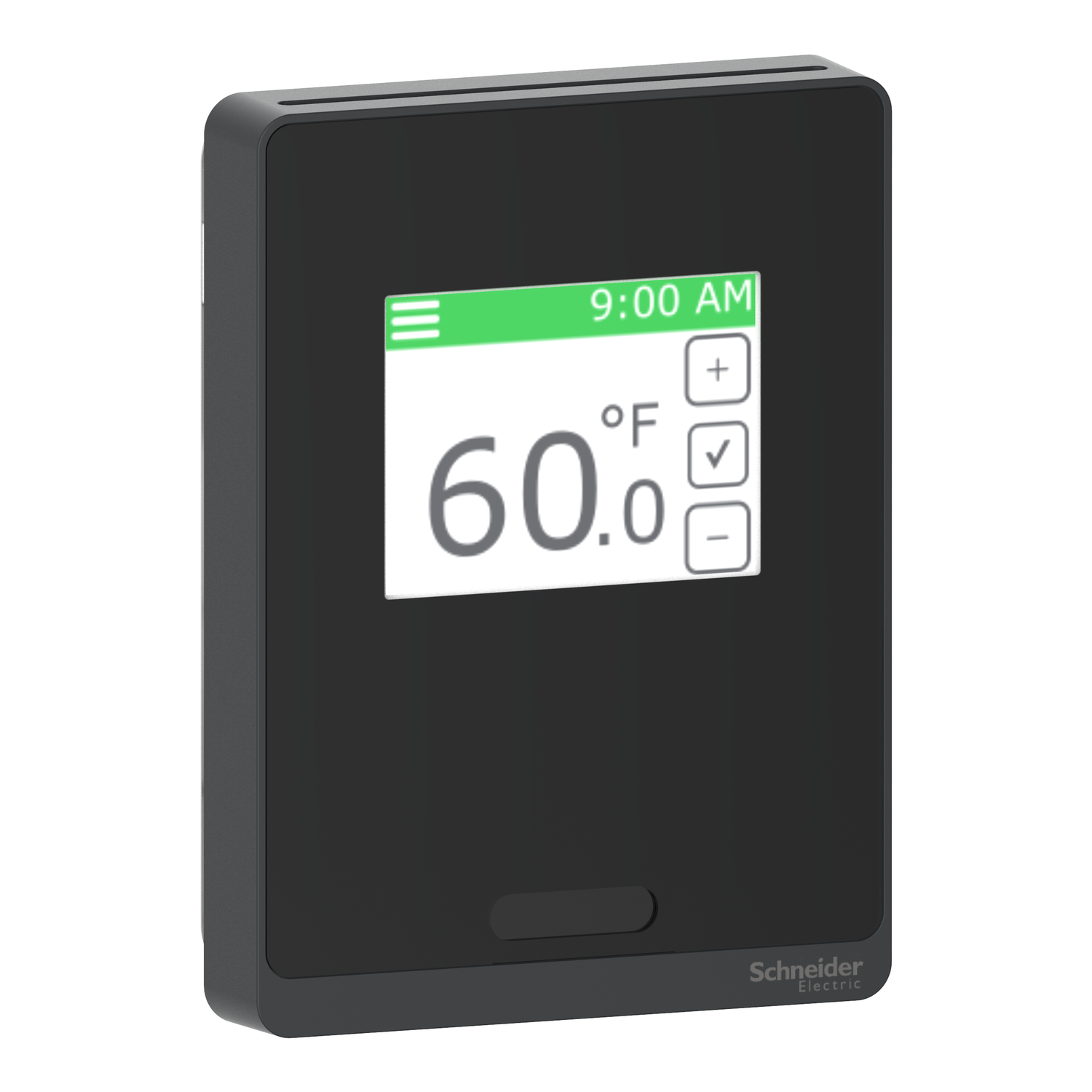

SmartX sensors are a family of living space sensors for use with SmartX IP controllers that use the EcoStruxure Building Operation software user interface. These sensors use an RJ-45 sensor bus that provides communication and power from the SmartX IP controller. SmartX living space sensors are modular and are ordered in two parts: the sensor base and the cover. Four SmartX communicating sensor base models are available that can be paired with any one of the SmartX modular covers. The SXWSCDPSELXB touchscreen cover displays current time, temperature, humidity percentage (if equipped), CO2 ppm (if equipped), as well as heating, cooling and Eco mode status. Temperature setpoint, override, temperature scale, fan speed, heating mode, cooling mode, lighting on/off/dimmer, blinds open/closed/adjust and blind angle are adjustable using the touchscreen. Setpoint, override, display timeout and display lockout parameters are configured using EcoStruxure Building Operation software. The Optimum Black housing has a glass front panel and an upgraded look and feel and is a great option for new construction and retrofit projects. The occupancy sensor uses a passive infrared (PIR) motion detector to determine occupancy status. The system may be configured in EcoStruxure Building Operation software to override comfort settings to occupied status when occupancy is detected during scheduled unoccupied periods.
