Contactors | SKU: S144A

S144A | Square D | Relays & Contactors

Name: S144A
Brand: Square D
SKU: SCH-S144A
Price: 9716.88 USD
Availability: InStock

Circuit Bk Mic Logic Trip Unit

$9,716.88 $19,822.28

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

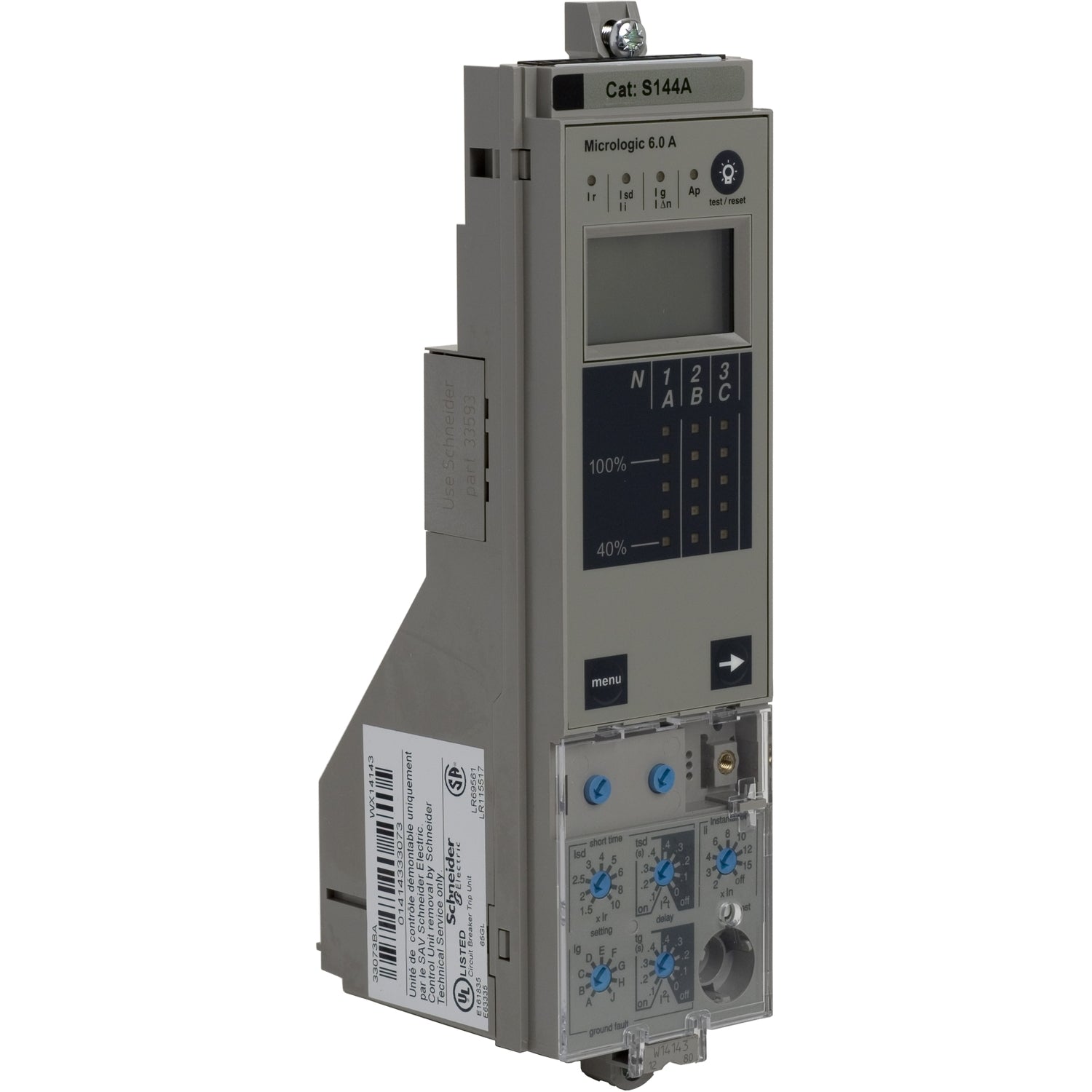

The S144A is a Schneider Electric PowerPacT P trip unit (R, with rating plug, Micrologic 6.0, LSIG protection).

Square D PowerPacT P, M and R-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits Molded case circuit breakers are available with either basic electronic trip system or Micrologic electronic trip units. PowerPacT P- and R-frame molded case circuit breakers may be specified with any of the following MicroLogic Electronic Trip Units This MicroLogic Standard 6.0A Trip Unit with field-interchangeable long-time rating plug has LSIG configuration and ammeter aditional feature. Adjustable rating plugs are offered in eight different ranges of long-time pickup adjustments. Trip unit provides true RMS sensing, LED long-time pickup indication and thermal imaging. Also it has available test kits.

Product Specifications

Name	Value
Data Sheet	Download
Height	7.85 in
Length	2.88 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Circuit Bk Mic Logic Trip Unit
Supplier part number	S144A
Web eligible	Y
Width	2.11 in

Features and Benefits

{'Features_and_Benefits_1': 'Micrologic 6.0 trip unit for use with PowerPacT P- and R-frame breakers', 'Features_and_Benefits_2': 'Trip units are designed to protect power circuits and loads', 'Features_and_Benefits_3': 'The unit trip is field replaceable', 'Features_and_Benefits_4': 'Micrologic standard trip unit features LSIG protection', 'Features_and_Benefits_5': 'UL listed and CSA marked'}
