Data Center Products | SKU: RSL1PVBU

RSL1PVBU | Square D | Relays & Contactors

Name: RSL1PVBU
Brand: Square D
SKU: SCH-RSL1PVBU
Price: 23.76 USD
Availability: InStock

Relay and Screw Connector

$23.76

Shipping calculated at checkout.

In stock (10 units)

Usually ships next day

FREE SHIPPING

Description

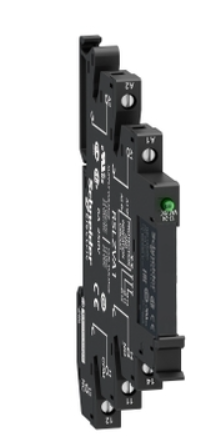

The RSL1PVBU is a Schneider Electric Harmony Electromechanical Relays slim interface relay (pre assembled, 6A, 1CO, with LED, screw connectors, 24V AC/DC).

This Harmony RSL slim, pre-assembled plug-in relay and socket features a 24VAC/DC coil control voltage. It includes one changeover contact (SPDT-single pole, double throw) with a current rating of 6A. It has large choice of number of contacts for high rated current use. It also offers LED indicator and protection circuit. It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere.

Product Specifications

Name	Value
Ambient temperature	-40°F to 185°F
Contact form	1 C/O Contact
Country of origin	CN
Data Sheet	Download
Height	3.09 in
Length	3.7 in
Mounting type	DIN Rail
Product category	Relays & Contactors
Product subcategory	General Purpose Relays
Series	Square D
Short desc	Relay and Screw Connector
Supplier part number	RSL1PVBU
Voltage	24 VAC/VDC
Width	0.2 in

Features and Benefits

{'Features_and_Benefits_1': 'Help to reduce the size of enclosures', 'Features_and_Benefits_2': 'Provides economical solution for the implementation of many switching functions', 'Features_and_Benefits_3': 'One of the slimmest interface relays on the market, with 0.24in width', 'Features_and_Benefits_4': 'Easy installation and withdrawal the relay from its socket', 'Features_and_Benefits_5': 'Available as a single-referenced complete product (relay and socket)'}
