QO115CAFI | Schneider Electric | Electrical & Wiring

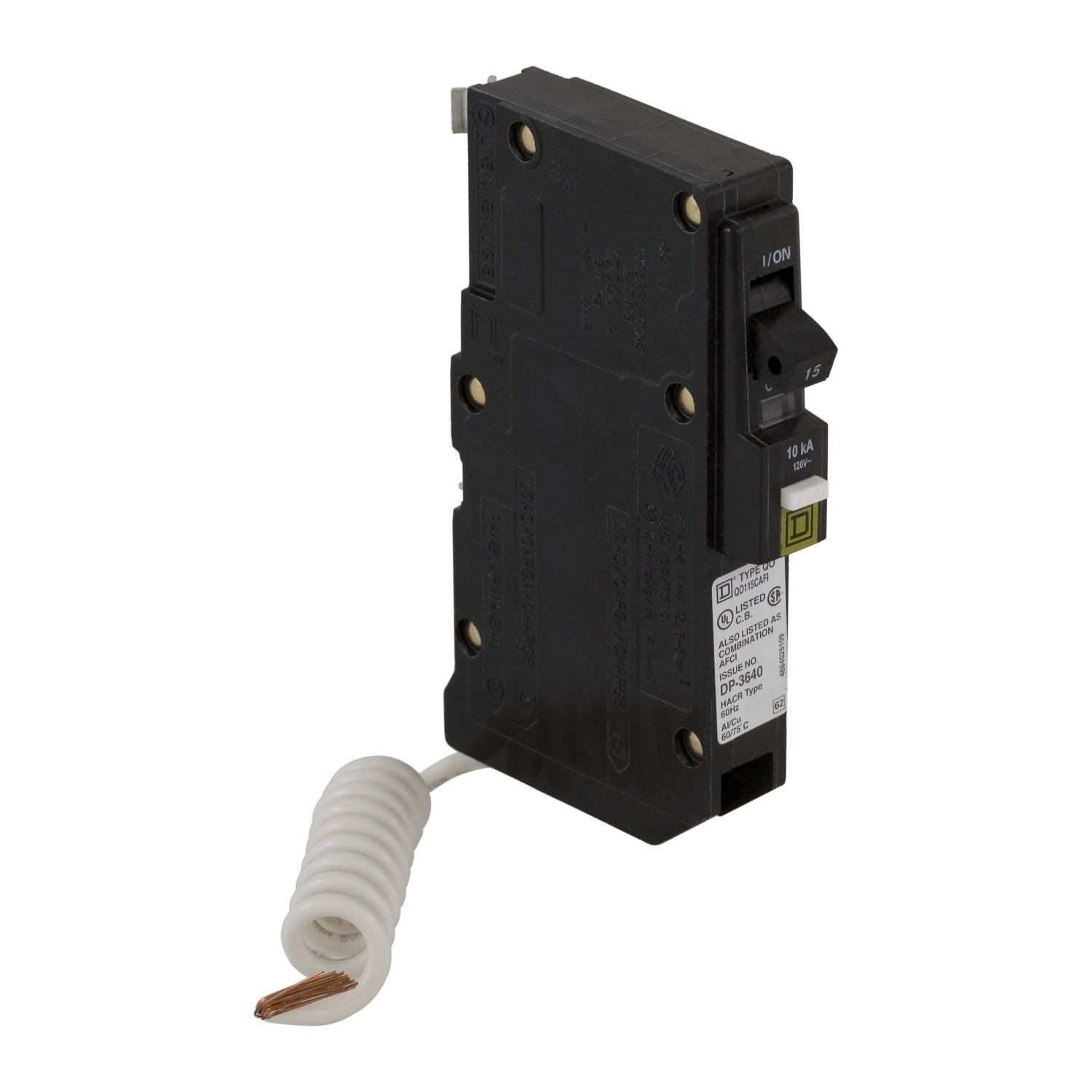

QO one pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 15 A, 120 V, and 1 pole. This unit provides 1 kA breaking capacity and plug-on mounting. A full line of factory installed accessories is also available such auxiliary switches, alarm switches, and shunt trips. This unit has a factory installed combination arc fault interrupter with pigtail neutral. QO breakers use a compact 3/4 Inch width design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555 Like all QO circuit breakers, QO CAFI breaker also features Visi-Trip indication, allowing electricians and homeowners to identify a tripped circuit quickly. ()-[In] rated current 15 A-[Ue] rated operational voltage ("1" 2018-04-13 05:11:08)-mounting mode plug-in-poles description 1P-Range Presentation.
