Contactors | SKU: QDL32100

QDL32100 | Square D | Relays & Contactors

Name: QDL32100
Brand: Square D
SKU: SCH-QDL32100
Price: 1218.21 USD
Availability: InStock

Mldd Case Circuit Br 240V 100a

$1,218.21 $2,485.13

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

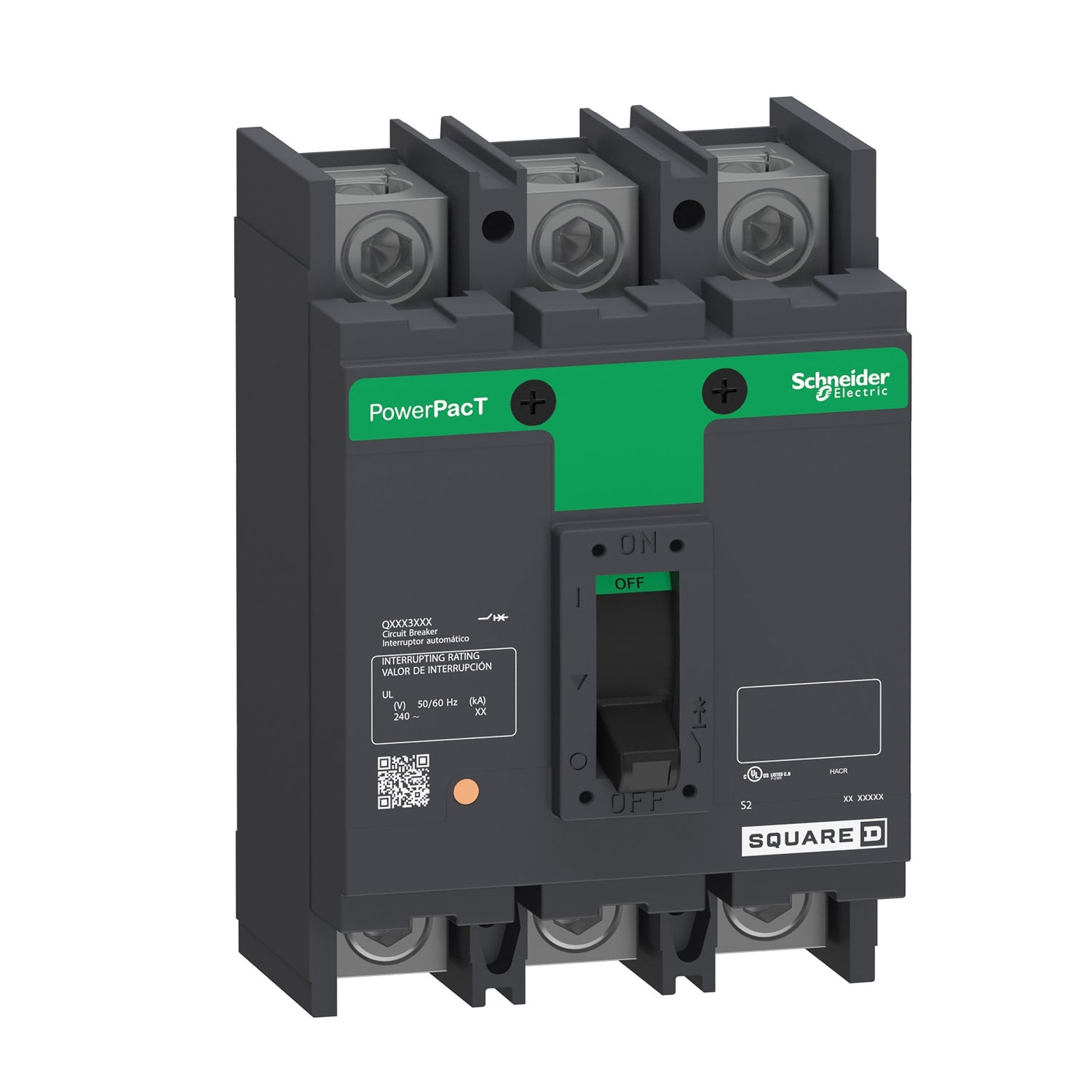

The QDL32100 is a Schneider Electric PowerPacT Q circuit breaker (100A, 3 pole, 240VAC, 25kA, lugs, thermal magnetic, 80%).

PowerPacT Q-Frame circuit breakers are used for overcurrent protection and switching on 240VAC systems. They are rated for 240VAC operational voltage and provide thermal magnetic trip protection. PowerPacT Q circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. This unit has lugs on both the line and load sides.

Product Specifications

Name	Value
Ambient temperature	104°F to 158°F
Country of origin	MX
Data Sheet	Download
Height	6.47 in
Length	3.93 in
Number of poles	3-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Mldd Case Circuit Br 240V 100a
Supplier part number	QDL32100
Web eligible	Y
Width	4.5 in

Features and Benefits

{'Features_and_Benefits_1': 'PowerPacT Q 100A, 240VAC 3 poles unit mount molded case circuit breaker', 'Features_and_Benefits_2': 'Designed for overcurrent protection and switching on AC systems', 'Features_and_Benefits_3': 'PowerPacT Q circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole', 'Features_and_Benefits_4': 'Breaker has interrupting ratings (AIR) of 25kA 240 VAC and has 80% rating', 'Features_and_Benefits_5': 'Main applications are Industrial markets and OEM Commercial'}
