Data Center Products | SKU: PWXX03BP

PWXX03BP | Veris Industries | Pressure

Name: PWXX03BP
Brand: Veris Industries
SKU: PWXX03BP
Price: 1257.56 USD
Availability: InStock

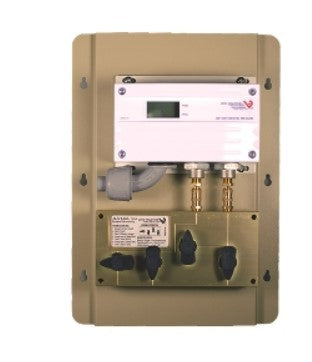

Veris, Wet Media Differential Pressure Transducer with Bypass Assembly, PWXX03BP

$1,257.56 $2,541.84

Shipping calculated at checkout.

Out of stock

FREE SHIPPING

Description

The PW series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors and other non-corrosive wet media applications. The jumper-selectable port swap feature eliminates costly replumbing when the high and low ports are improperly plumbed, allowing the jumper position to be changed from normal to swap.

Product Specifications

Name	Value
Category	Pressure
Data Sheet	Download
Display name 1	Data Sheet
Features and benefits	Mounted bypass assembly \| Dual-color LED: green = normal, green blinking = low greater than high, red = over range, red blinking = overpressure status indication \| Overrides output to full scale (20 mA, 5 V, 10 V) test mode \| Rugged, die-cast enclosure provides NEMA 4 sealing \| Switch-selectable pressure ranges, fewer models to order and stock \| The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
Input voltage	15 - 30 VDC, 24 VAC
Output signal	4 to 20 mA/0 to 5 V/0 to 10 V
P21 delete flag	false
Pressure range	0 to 5/10/25/50 PSI
Pressure tube	1/8â€ NPT
Product category	Pressure
Product subcategory	Pressure Sensors
Restricted class id	NULL
Restricted item	false
Series	Veris
Short desc	Veris, Wet Media Differential Pressure Transducer with Bypass Assembly, PWXX03BP
Supplier part number	PWXX03BP
Ultra store sync us	Yes
Vendor active	Y
Vendor enabled	true

Features and Benefits

Mounted bypass assembly | Dual-color LED: green = normal, green blinking = low greater than high, red = over range, red blinking = overpressure status indication | Overrides output to full scale (20 mA, 5 V, 10 V) test mode | Rugged, die-cast enclosure provides NEMA 4 sealing | Switch-selectable pressure ranges, fewer models to order and stock | The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility
