Data Center Products | SKU: PWLX04S

PWLX04S | Veris Industries | Pressure

Name: PWLX04S
Brand: Veris Industries
SKU: SCH-PWLX04S
Price: 802.03 USD
Availability: InStock

Veris, Pressure Sensor Wet Differential, 12 - 30 VDC/24 VAC, 0 - 100 PSI, 4 to 20 mA/0 to 5 V/0 to 10 V, Ver

$802.03 $1,269.88

Shipping calculated at checkout.

In stock (10 units)

Usually ships next day

FREE SHIPPING

Description

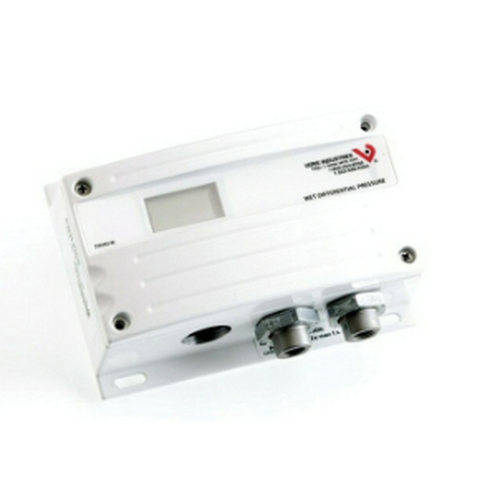

The PW series wet pressure transducers incorporate microprocessor profiled sensors for exceptional accuracy and reliability. Easy to use and designed to provide exceptional installation savings, the PW Series is ideal for measuring pressure across pumps, filters, heat exchangers, compressors and other non-corrosive wet media applications.

Product Specifications

Name	Value
Category	Pressure
Data Sheet	Download
Input voltage	12 - 30 VDC/24 VAC
Inv mast uid	337886
Material	Aluminium
Mounting type	Duct or Panel
Output signal	4 to 20 mA/0 to 5 V/0 to 10 V
Pressure range	0 to 100 PSI
Product category	Pressure
Product subcategory	Dry Differential Pressure Transmitters
Series	Veris
Short desc	Veris, Pressure Sensor Wet Differential, 12 - 30 VDC/24 VAC, 0 - 100 PSI, 4 to 20 mA/0 to 5 V/0 to 10 V, Ver
Supplier part number	PWLX04S
Type	Wet Differential Pressure Sensor
Variant weight	0.1

Features and Benefits

{'Features_and_Benefits_1': 'The jumper-selectable output switch for normal (4 to 20 mA) or reverse (20 to 4 mA) operation provides application flexibility', 'Features_and_Benefits_2': 'Rugged, die-cast enclosure provides NEMA 4 sealing', 'Features_and_Benefits_3': 'Pushbutton and remote zero adjustment, maintain accuracy and reduce callbacks with automatic zero calibration', 'Features_and_Benefits_4': 'Overrides output to full scale (20 mA, 5 V, 10 V) test mode'}
