Circuit Protection | SKU: PJP36120U31A

PJP36120U31A | Square D | Electrical & Wiring

Name: PJP36120U31A
Brand: Square D
SKU: SCH-PJP36120U31A
Price: 6015.30 USD
Availability: InStock

Molded Case Circuit Breaker

$6,015.30 $12,271.10

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

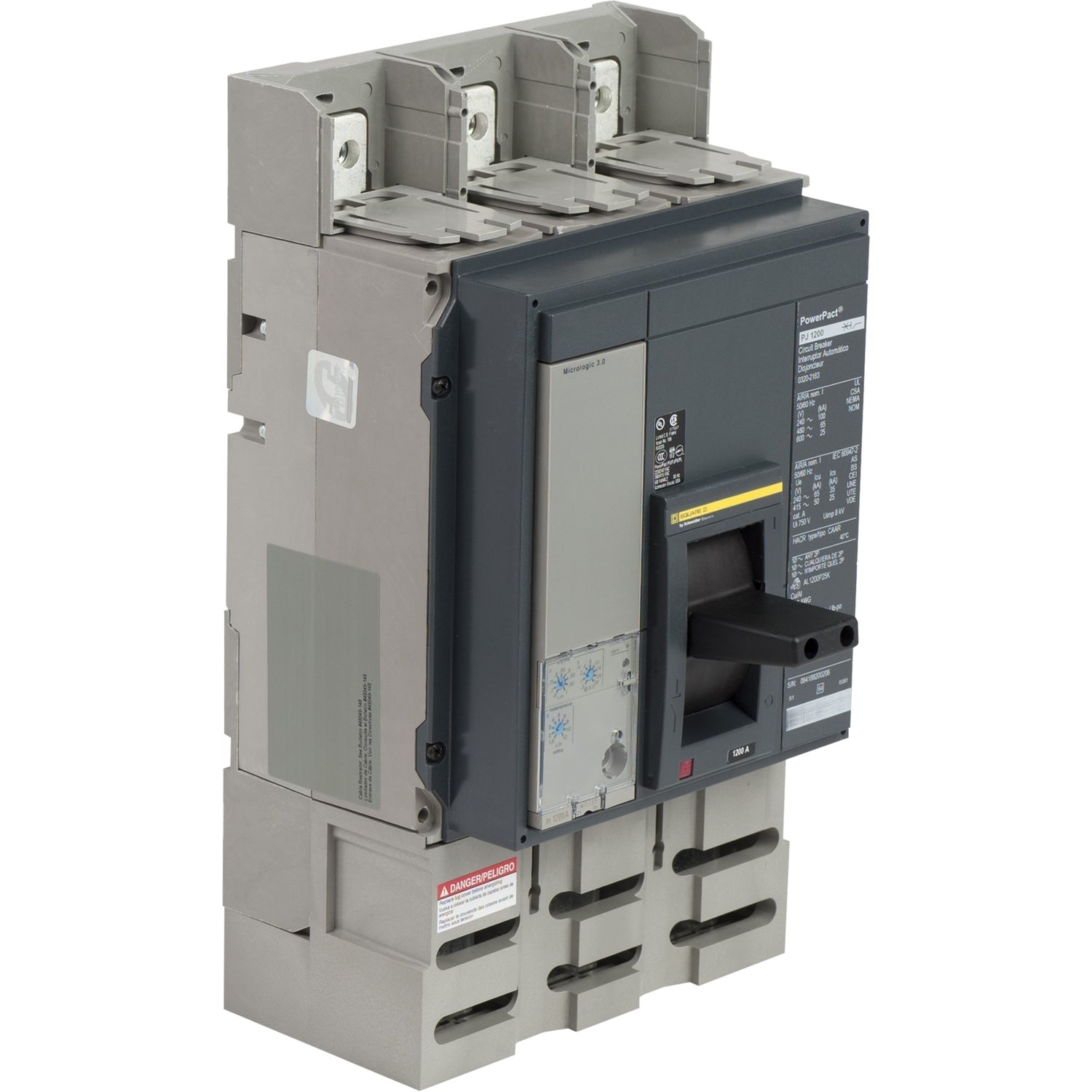

The PJP36120U31A is a Schneider Electric PowerPacT P circuit breaker (1200A, 3 pole, 600VAC, 25kA, lugs, Micrologic 3.0, 80%).

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has a Micrologic Interchangeable Standard with a 3.0 trip unit and an LI function. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker.

Product Specifications

Name	Value
Ambient temperature	-13°F to 158°F
Country of origin	MX
Data Sheet	Download
Height	16.16 in
Length	8.05 in
Number of poles	3-Pole
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	Square D
Short desc	Molded Case Circuit Breaker
Supplier part number	PJP36120U31A
Voltage	600 VAC
Web eligible	Y
Width	8.27 in

Features and Benefits

{'Features_and_Benefits_1': 'Available in 2, 3, 4 pole design', 'Features_and_Benefits_2': 'Common mounting holes, handle locations and trim dimensions for design standardization', 'Features_and_Benefits_3': 'Common accessories across the range', 'Features_and_Benefits_4': 'Used as main panel disconnect for control panel', 'Features_and_Benefits_5': 'UL 489 Listed, CSA NMX, IEC certified for world wide applications'}
