Circuit Protection | SKU: PGL36060

PGL36060 | Square D | Electrical & Wiring

Name: PGL36060
Brand: Square D
SKU: SCH-PGL36060
Price: 3888.76 USD
Availability: InStock

Molded Circuit Breaker 600V

$3,888.76 $7,933.00

Shipping calculated at checkout.

Available to order

Lead time: 4 days

FREE SHIPPING

Description

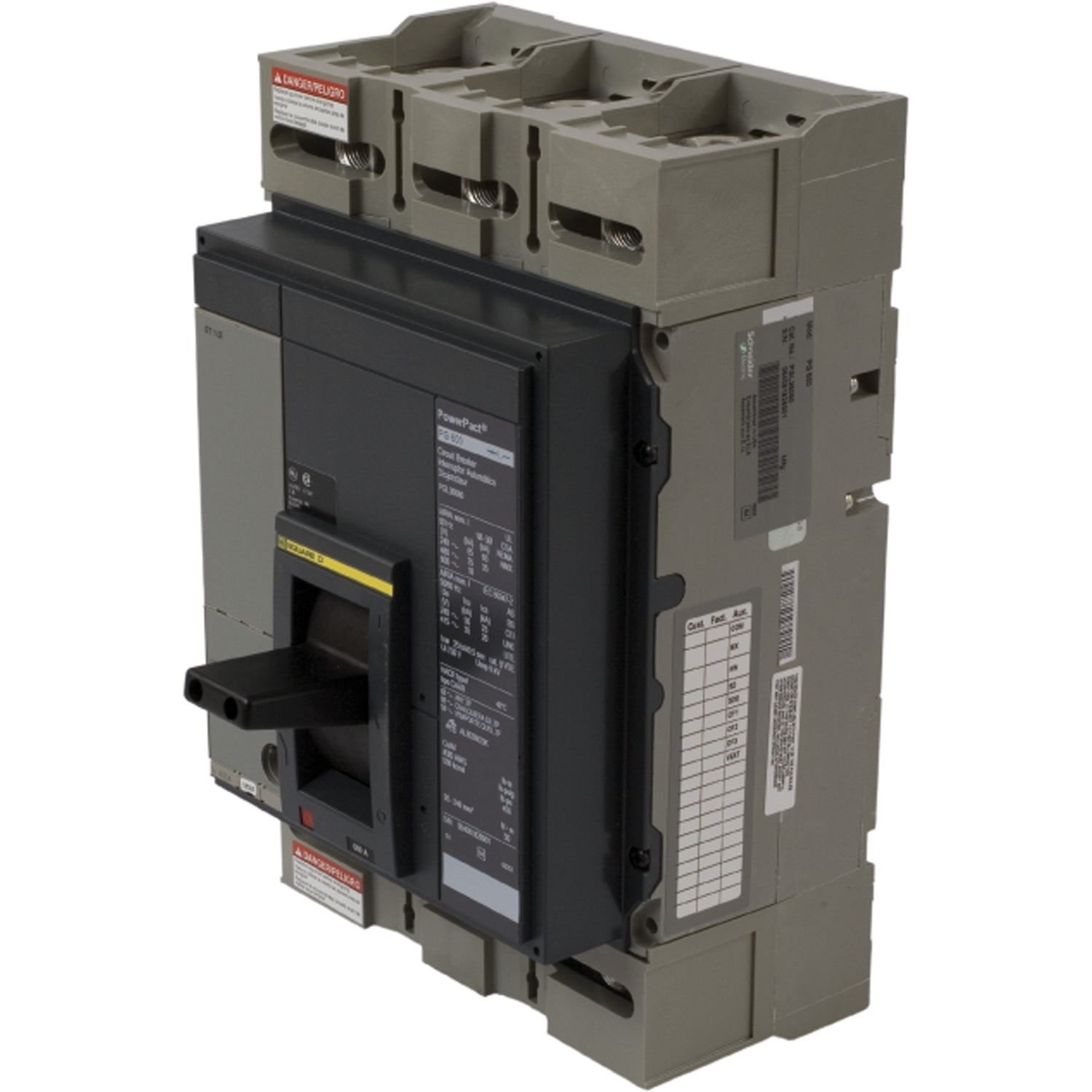

The PGL36060 is a Schneider Electric PowerPacT P circuit breaker (600A, 3 pole, 600VAC, 18kA, lugs, ET1.0l, 80%).

PowerPacT P-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT P-Frame circuit breakers have either a fixed long time electronic trip unit, ET 1.0I, or Micrologic trip units. Micrologic trip units can be interchanged in the field to allow for maximum flexibility; the basic electronic trip unit doesn't have that interchangeability. This circuit breaker has an electronic trip unit, ET 1.0I. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker.

Product Specifications

Name	Value
Data Sheet	Download
Height	12.86 in
Length	8.05 in
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	Square D
Short desc	Molded Circuit Breaker 600V
Supplier part number	PGL36060
Width	8.27 in

Features and Benefits

{'Features_and_Benefits_1': 'Item is no longer a stock item but is available for purchase through a configuration tool with your local distributor', 'Features_and_Benefits_2': 'Common mounting holes, handle locations and trim dimensions for design standardization', 'Features_and_Benefits_3': 'Common accessories across the range', 'Features_and_Benefits_4': 'Used as main panel disconnect for control panel', 'Features_and_Benefits_5': 'UL 489 Listed, CSA NMX, IEC certified for world wide applications'}
