Control Valves & Actuators | SKU: MP-481-600

MP-481-600 | Schneider Electric | Control Valves & Actuators

Name: MP-481-600
Brand: Schneider Electric
SKU: SCH-MP481600
Price: 2239.21 USD
Availability: InStock

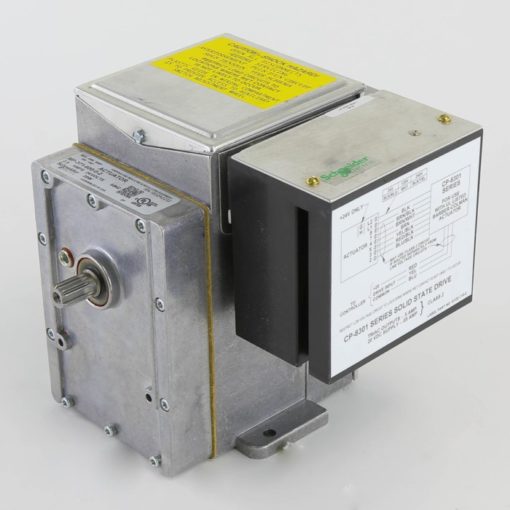

Schneider, Invensys Erie Electric Actuator, Proportional, 120 VAC, 6-9 V, Non-Spring Return, Terminal Block, 220 Inch-lbs, with CP-8301-120, Rotary, SPDT, Actuator Drive, Feedback, NEMA 1

$2,239.21 $4,567.95

Shipping calculated at checkout.

Available to order

Lead time: 6 days

FREE SHIPPING

Description

The MP-481-600 is a proportional non-spring-return electric valve actuator rated for 220 in-lb. Powered by 6-9 VDC or 120 VAC, it comes in a NEMA 1 enclosure.

Product Specifications

Name	Value
Actuator type	Electric
Configuration	SPDT Switch
Connection type	Terminal Block
Control type	Proportional
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Enclosure type	NEMA 1
Fail safe	Non Fail Safe
Height	9.6 in
Length	12.9 in
Power supply	120 VAC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Rotation	180 Deg.
Series	Schneider Electric
Short desc	Schneider, Invensys Erie Electric Actuator, Proportional, 120 VAC, 6-9 V, Non-Spring Return, Terminal Block, 220 Inch-lbs, with CP-8301-120, Rotary, SPDT, Actuator Drive, Feedback, NEMA 1
Supplier part number	MP-481-600
Torque	220 in-lbs
Type	Electric Valve Actuator
Web eligible	Y
Width	10.6 in

Features and Benefits

{'Features_and_Benefits_1': 'Actuator Type: Electric', 'Features_and_Benefits_2': 'Control Signal: Proportional', 'Features_and_Benefits_3': 'Control Signal Range: 6 to 9 VDC', 'Features_and_Benefits_4': 'Loss of Power Type: Non-Spring Return', 'Features_and_Benefits_5': 'Power Input Voltage: 120 VAC', 'Features_and_Benefits_6': 'Leads and Connections: Terminal Block', 'Features_and_Benefits_7': 'Torque: 220 in-lb', 'Features_and_Benefits_8': 'Mechanical Movement: Rotary', 'Features_and_Benefits_9': 'Auxiliary Switch: 1 SPDT', 'Features_and_Benefits_10': 'Additional Features: Actuator drive, Feedback potentiometer'}
