Control Valves & Actuators | SKU: MP4000

MP4000 | Schneider Electric | Control Valves & Actuators

Name: MP4000
Brand: Schneider Electric
SKU: SCH-MP4000
Price: 2802.39 USD
Availability: InStock

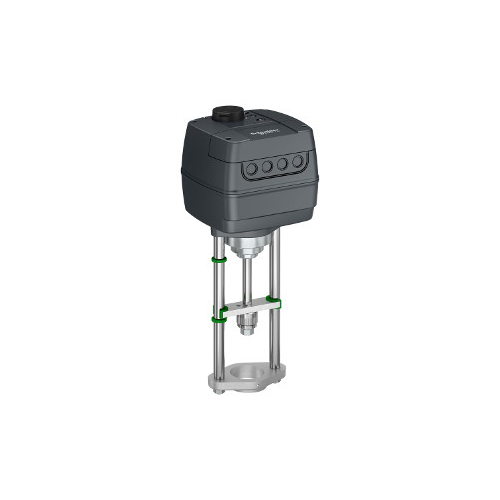

Schneider, SpaceLogic Electric Actuator, Multi-Signal Control, 24 VAC, 4000 N, Terminal Block Connection, Non-Spring Return, 2 x SPDT, IP54

$2,802.39 $5,716.85

Shipping calculated at checkout.

Available to order

Lead time: 10 days

FREE SHIPPING

Description

The MP4000 Actuator is primarily designed to regulate valves in response to the demand of a controller in HVAC systems. MP4 can be controlled by electronic controllers with modulating or 3-point control output. Manual operation mechanical and/or electrical, Automatic adaptation of stroke to valve's end positions that reduces commissioning time (self-stroking). Characteristic optimization, Adjustable stroke limitation, Anti-oscillation function, External reset button.

Product Specifications

Name	Value
Actuator type	Electric
Configuration	2 SPDT Auxiliary Switches
Connection type	Terminal Block
Control type	Automatic Reset
Country of origin	SI
Data Sheet	Download
Installation Instructions	Download
Fail safe	Non Fail Safe
Height	8.19 in
Length	7.91 in
Power supply	24 VAC/VDC
Product category	Control Valves & Actuators
Product subcategory	Non-Spring Return Valve Actuators
Series	Schneider Electric
Short desc	Schneider, SpaceLogic Electric Actuator, Multi-Signal Control, 24 VAC, 4000 N, Terminal Block Connection, Non-Spring Return, 2 x SPDT, IP54
Supplier part number	MP4000
Type	Electric Valve Actuator
Width	16.46 in

Features and Benefits

{'Features_and_Benefits_1': 'Maximum Stroke 8mm', 'Features_and_Benefits_2': 'Power Supply: 24 VAC/VDC (+1, -15%)', 'Features_and_Benefits_3': 'Fits to VP222x PIBCV Valves (DN200-250/8-10 Inch)', 'Features_and_Benefits_4': 'Close Off Force: 4 N', 'Features_and_Benefits_5': 'LED Status Indicators', 'Features_and_Benefits_6': 'Manual Override', 'Features_and_Benefits_7': 'Grade of Enclosure IP54, Type 2', 'Features_and_Benefits_8': 'Auto Stroke Calibration', 'Features_and_Benefits_9': 'These Multi-Signal Actuators can be Configured to All Common Input Signals'}
