Control Valves & Actuators | SKU: MA-418

MA-418 | Schneider Electric | Control Valves & Actuators

Name: MA-418
Brand: Schneider Electric
SKU: SCH-MA418
Price: 799.77 USD
Availability: InStock

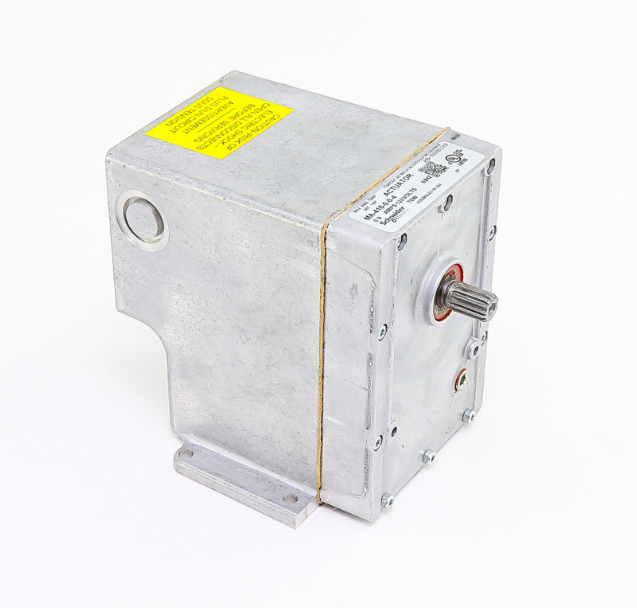

Schneider, Erie Electric Actuator, 2-Position, 120 VAC, Spring Return, 60 Inch-lbs, Output Shaft must be Horizontal for Mounting, 70 W Running Input, 25 W Holding, Terminal Block, Rotary, NEMA 1

$799.77 $1,631.52

Shipping calculated at checkout.

In stock (11 units)

Usually ships next day

FREE SHIPPING

Description

Application: For two-position operation of dampers, valves, and other equipment which require the return to normal position upon power interruption. Hazardous location models offer a sturdy cast aluminum case with bolted cover. They have two 3/4 Inch pipe tapped openings for joints with rigid metal conduit. All wiring is brought out to separate terminals for ease of installation. These factory enclosure and actuator assemblies are Underwriters Laboratories listed.

Product Specifications

Name	Value
Connection type	Terminal Block
Control type	On/Off (2-Position)
Country of origin	US
Data Sheet	Download
Installation Instructions	Download
Enclosure type	NEMA 1
Fail safe	Spring Return
Height	7.52 in
Length	6.5 in
Power consumption holding	25 W
Power consumption running	70 W
Power supply	120 VAC
Product category	Control Valves & Actuators
Product subcategory	Spring Return Valve Actuators
Rotation	180 Deg.
Series	Schneider Electric
Short desc	Schneider, Erie Electric Actuator, 2-Position, 120 VAC, Spring Return, 60 Inch-lbs, Output Shaft must be Horizontal for Mounting, 70 W Running Input, 25 W Holding, Terminal Block, Rotary, NEMA 1
Supplier part number	MA-418
Torque	60 in-lbs
Type	Electric Valve Actuator
Web eligible	Y
Width	8.5 in
