Contactors | SKU: M9D11606

M9D11606 | Square D | Relays & Contactors

Name: M9D11606
Brand: Square D
SKU: SCH-M9D11606
Price: 411.22 USD
Availability: InStock

MULTI9 N40vigi C6a 1ppn30

$411.22 $838.89

Shipping calculated at checkout.

Available to order

Lead time: 7 days

FREE SHIPPING

Description

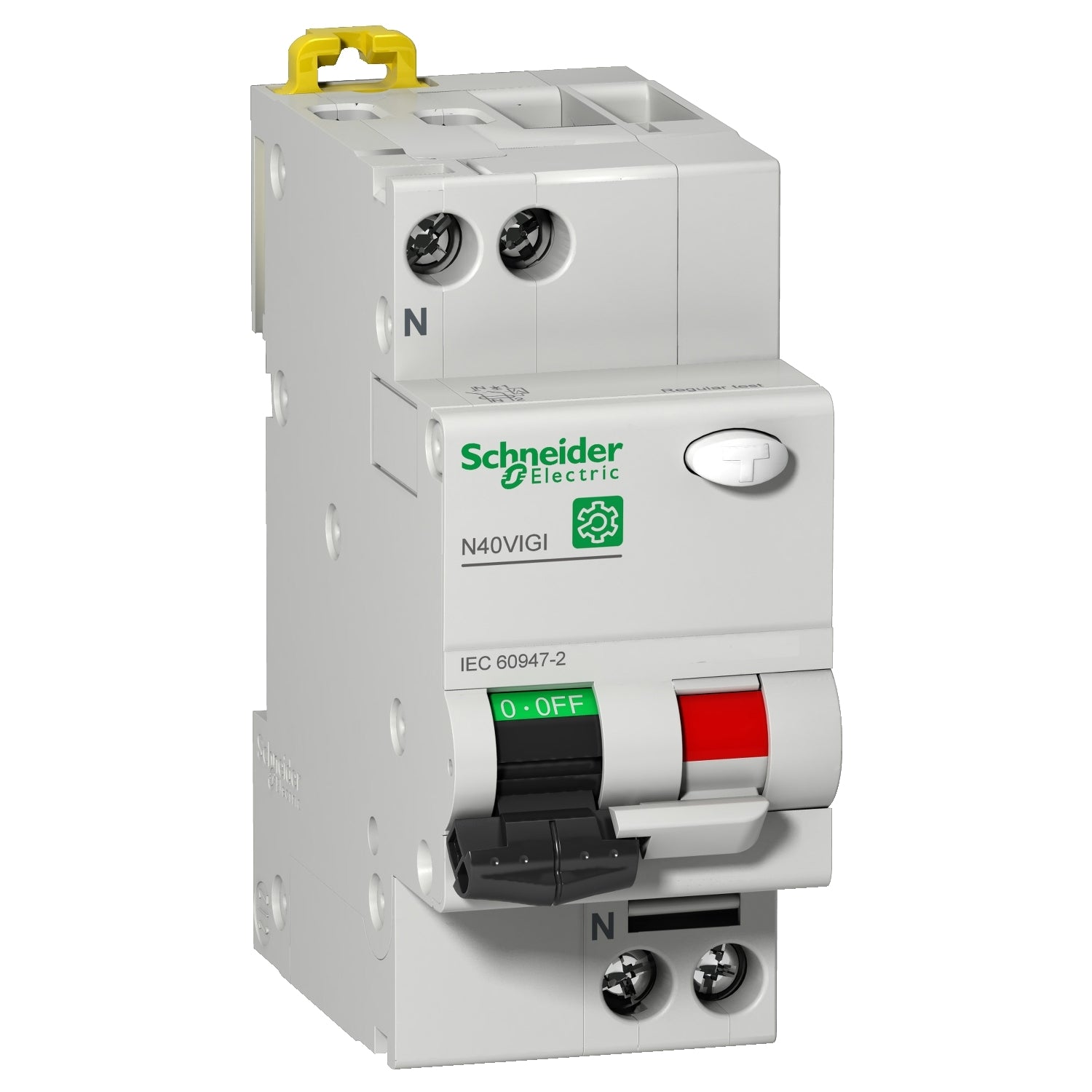

The M9D11606 is a Schneider Electric Multi9 N40 Vigi Residual current breaker with overcurrent protection (RCBO) (1P+N, 6A, C curve, 6000A/6kA, AC type, 30mA).

This Multi9 N40 Vigi is a modular residual current breaker with overcurrent protection (RCBO). It is a 1P+N circuit breaker with 1 protected pole, 6A In rated current and C tripping curve. The earth leakage protection class is AC type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icu rated short circuit breaking capacity is up to 6kA according EN/IEC 60947-2 standard.

Product Specifications

Name	Value
Ambient temperature	-22°F to 158°F
Country of origin	ES
Data Sheet	Download
Height	3.2 in
Length	2.8 in
Mounting type	DIN Rail
Number of poles	1-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	MULTI9 N40vigi C6a 1ppn30
Supplier part number	M9D11606
Web eligible	Y
Width	1.4 in

Features and Benefits

{'Features_and_Benefits_1': 'Protection against short-circuit and overload currents', 'Features_and_Benefits_2': 'Protection of persons against electric shock by direct contact', 'Features_and_Benefits_3': 'Positive contact indication indicating a suitability for isolation according to IEC/EN 60947-2 standard', 'Features_and_Benefits_4': 'Green strip ensuring physical contact opening, allowing safe downstream operations', 'Features_and_Benefits_5': 'Presence of a test button to check the correct functioning of the device'}
