Contactors | SKU: LXM32MD30N4

LXM32MD30N4 | Square D | Relays & Contactors

Name: LXM32MD30N4
Brand: Square D
SKU: SCH-LXM32MD30N4
Price: 2184.82 USD
Availability: InStock

LXM32 Modular 30a Rms Peak 3PH

$2,184.82 $4,457.01

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

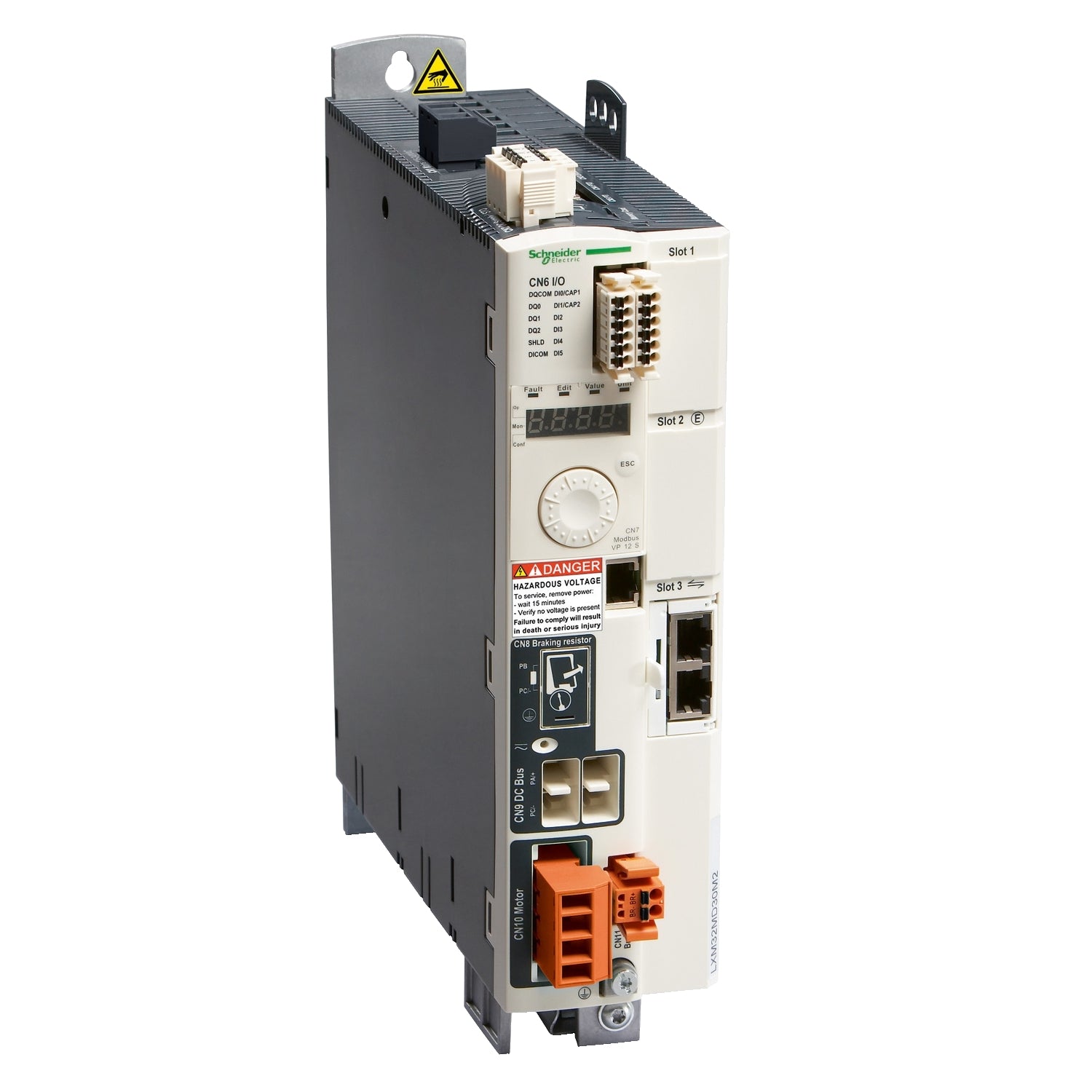

The LXM32MD30N4 is a Schneider Electric Lexium 32 motion servo drive (30A, three phase, supply voltage 208 to 480V, 3kW).

This Lexium 32 servo drive works at a rated supply voltage from 208V ac to 480V ac. It can feed 3-phase synchronous motors BMH or BSH, its continuous output current is 10A at 8kHz. The compact size of the servo drive and associated servo motor provides maximum power in the minimum space. This servo drive is specifically designed for industrial machines. It offers high performance, power and simplicity of use in motion control applications.

Product Specifications

Name	Value
Ambient temperature	-13°F to 158°F
Country of origin	ID
Data Sheet	Download
Height	10.6 in
Length	9.3 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	LXM32 Modular 30a Rms Peak 3PH
Supplier part number	LXM32MD30N4
Voltage	200-240 VAC
Width	2.7 in

Features and Benefits

{'Features_and_Benefits_1': 'Lexium 32 range provides the drive and motor combinations for right power, performance and functionality', 'Features_and_Benefits_2': 'Three book-size servo drive models and two servo motor families plus a full range of intelligent options', 'Features_and_Benefits_3': 'Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance', 'Features_and_Benefits_4': 'Lexium 32 offers a host of features for rapid installation and maintenance with removable, colour-coded connectors'}
