Contactors | SKU: LUB120

LUB120 | Square D | Relays & Contactors

Name: LUB120
Brand: Square D
SKU: SCH-LUB120
Price: 257.12 USD
Availability: InStock

Screw Cla Base 12a W/O Trmntns

$257.12 $524.50

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

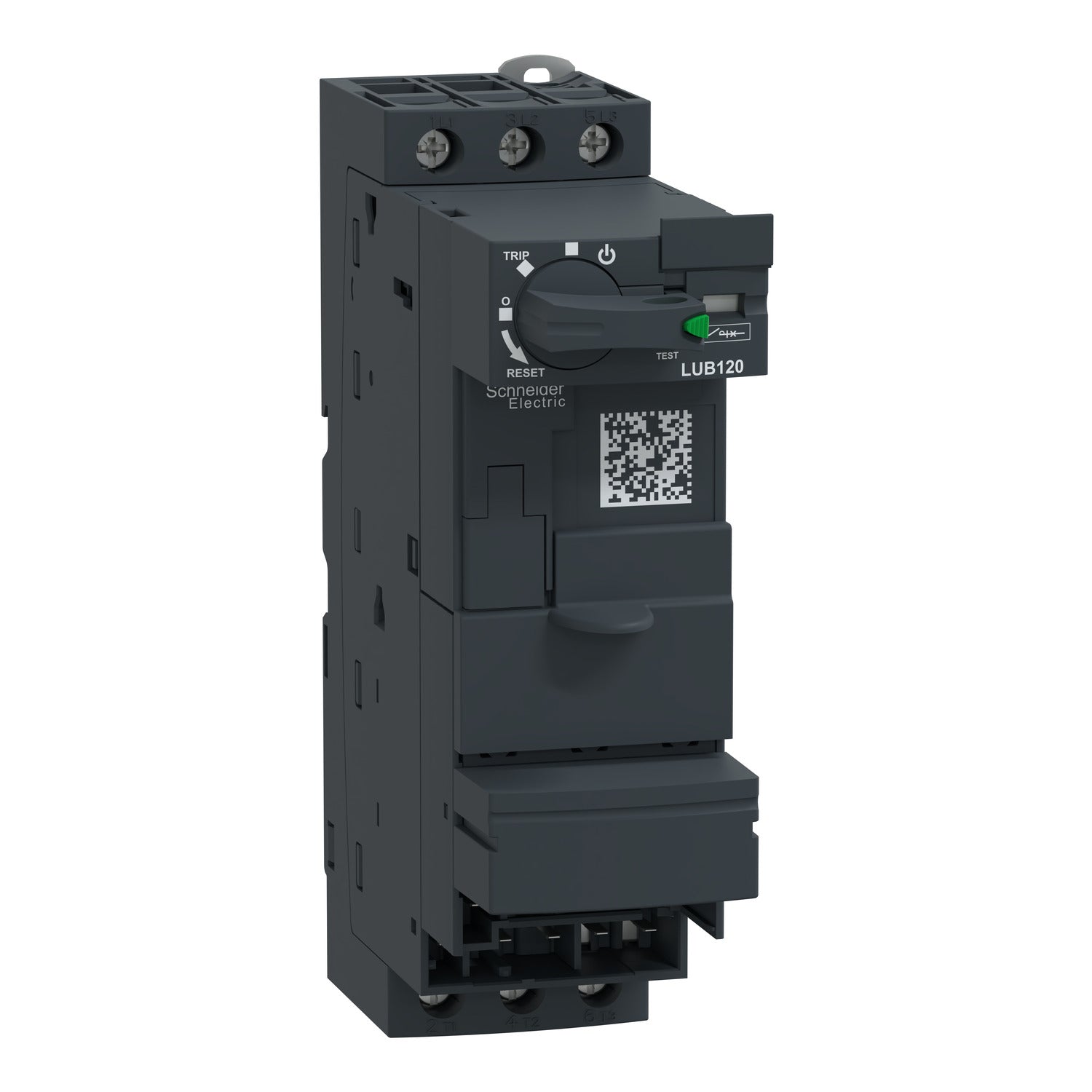

The LUB120 is a Schneider Electric TeSys Ultra advanced power base (3P, 12A/690V).

TeSys U advanced power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with auxiliary signaling contacts (1NO+1NC), a control terminal block, and blanking shutters covering the empty cavities. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle.

Product Specifications

Name	Value
Ambient temperature	-13°F to 140°F
Data Sheet	Download
Height	6.06 in
Length	5 in
Mounting type	DIN Rail or Panel Mounting
Number of poles	3-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Screw Cla Base 12a W/O Trmntns
Supplier part number	LUB120
Width	1.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Number of direction of rotation to be controlled is 1', 'Features_and_Benefits_2': 'Type of control to be achieved is Advanced control', 'Features_and_Benefits_3': 'Modular, plug & play structure helps you to perform quick maintenance', 'Features_and_Benefits_4': 'Direct access to detailed information for every motor starter of your installation', 'Features_and_Benefits_5': 'Advanced motor management system'}
