Contactors | SKU: LR9D5569

LR9D5569 | Square D | Relays & Contactors

Name: LR9D5569
Brand: Square D
SKU: SCH-LR9D5569
Price: 1558.56 USD
Availability: InStock

Solid Ovrld Rly 575vac150a

$1,558.56 $3,179.43

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

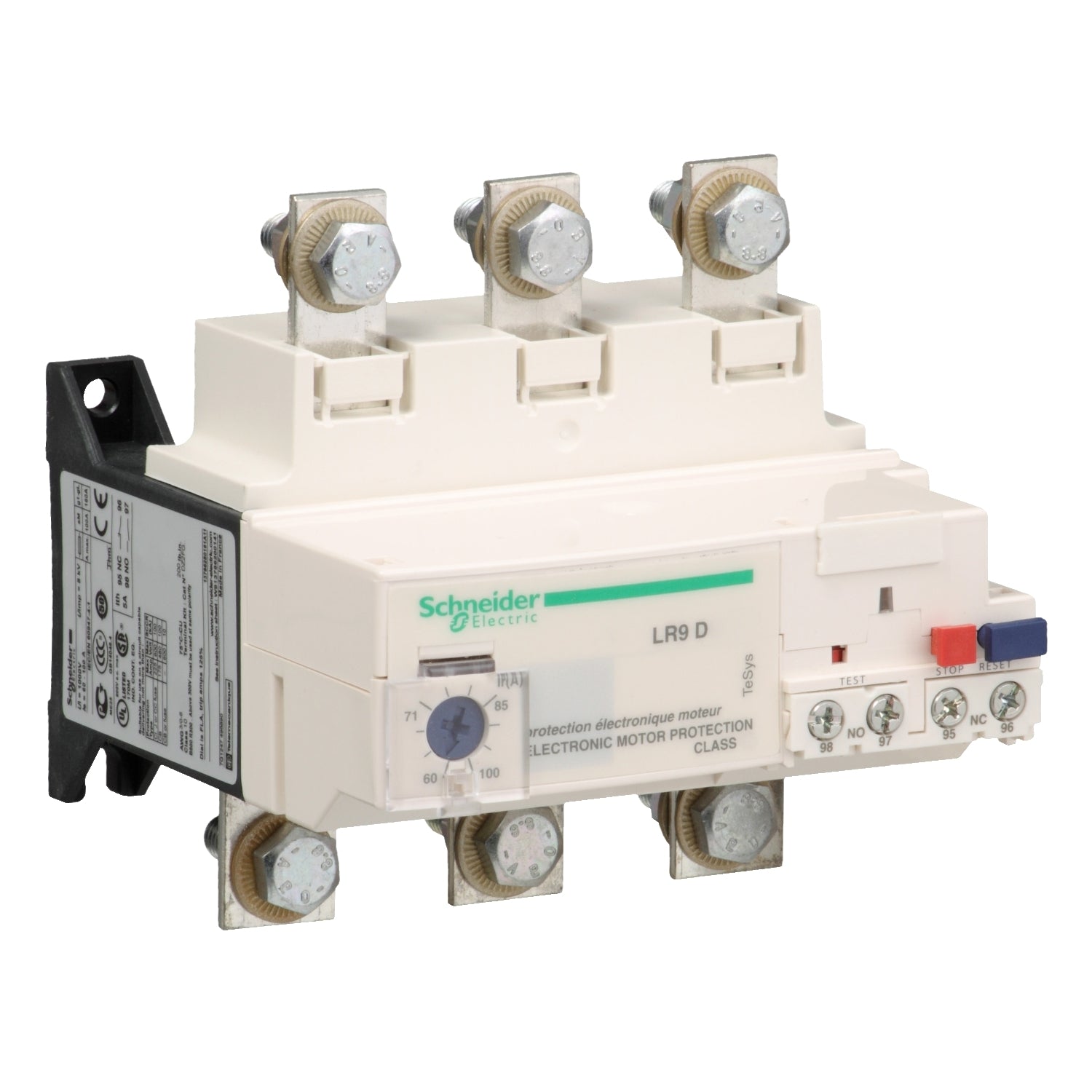

The LR9D5569 is a Schneider Electric TeSys Deca thermal overload relays (90...150A, class 20).

LR9D5569 is a TeSys LR9D electronic overload relay to be used with a TeSys D contactor. With a thermal range 90-150A, a tripping class 20 and phase unbalance protection, it protects motors 55 to 75kW@400V. LR9D5569 is a TeSys LR9D electronic overload relay to be combined with a TeSys D contactor. With a thermal setting range 90-150A, a tripping class 20 and phase unbalance detection, it protects motors 55 to 75kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator.

Product Specifications

Name	Value
Data Sheet	Download
Height	4.6 in
Length	4.9 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Solid Ovrld Rly 575vac150a
Supplier part number	LR9D5569
Web eligible	Y
Width	4.5 in

Features and Benefits

{'Features_and_Benefits_1': 'Ensure high safty with phase failure and load unbalance detection', 'Features_and_Benefits_2': 'The thermal adjustement dial enables accurate and reliable operation', 'Features_and_Benefits_3': 'It is designed with a transparent cover lockable by sealing in case of misoperation', 'Features_and_Benefits_4': 'Simple mounting on DIN rail or screw fixing', 'Features_and_Benefits_5': 'Multi sdandards certified makes it possible to wide application'}
