Contactors | SKU: LR9D08

LR9D08 | Square D | Relays & Contactors

Name: LR9D08
Brand: Square D
SKU: SCH-LR9D08
Price: 100.82 USD
Availability: InStock

LR9D Electronic Olr 1.6-8a 600

$100.82 $205.67

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

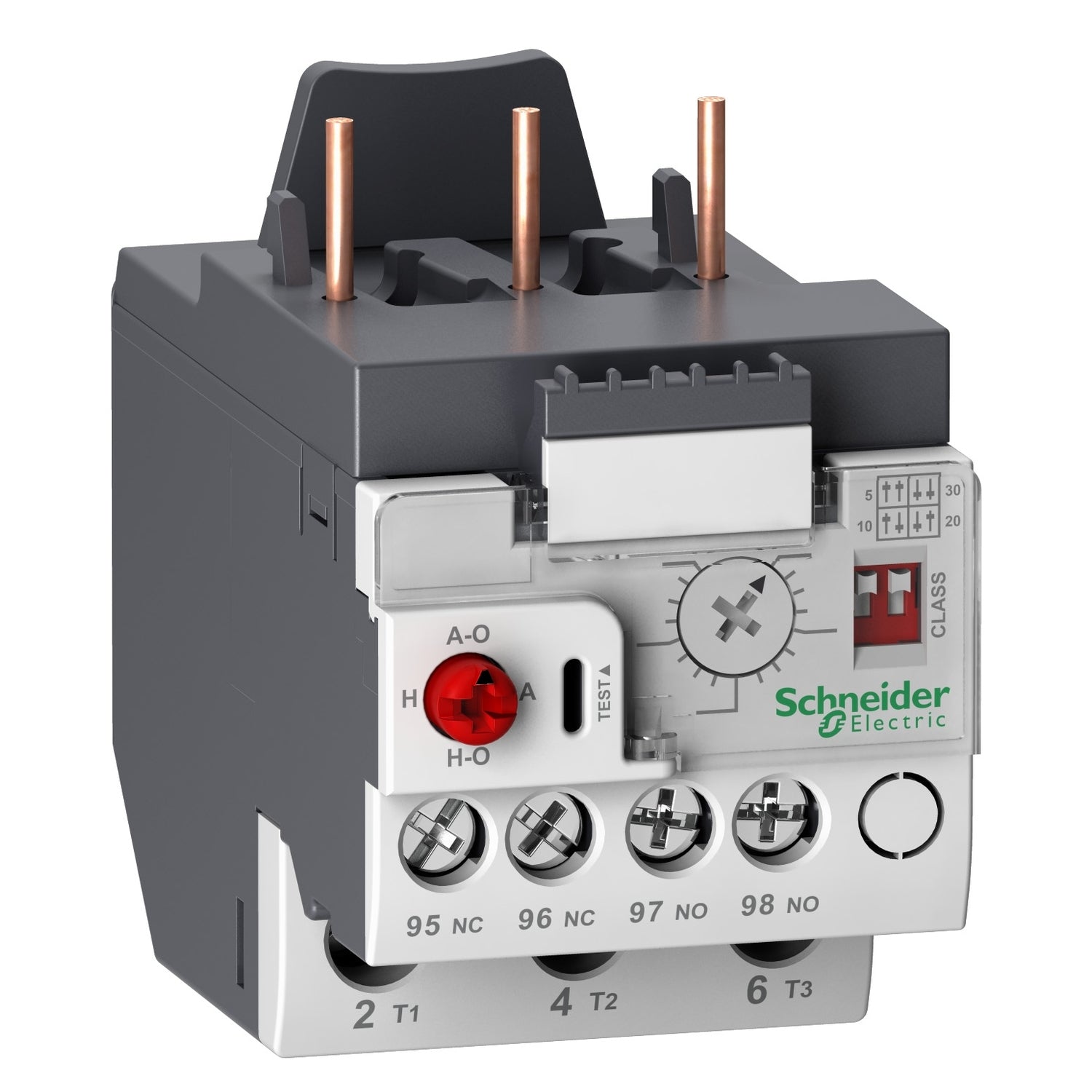

The LR9D08 is a Schneider Electric TeSys LRD overload relay (motor protection, 1.6A to 8A, 3 phase, withstand 6kV impulse, 2kV surge, electronic thermal).

TeSys LR9D electronic overload relay, 8A/690V, thermal setting range 1.6-8A, selectable tripping class 5-10-20-30, for protection of 3-phase motors 0.75-3kW at 400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset as well as manual-automatic reset selector, dipswitches for tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.

Product Specifications

Name	Value
Data Sheet	Download
Height	2.9 in
Length	3.1 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	LR9D Electronic Olr 1.6-8a 600
Supplier part number	LR9D08
Width	1.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Easy for selection', 'Features_and_Benefits_2': 'Simple to install', 'Features_and_Benefits_3': 'Trip indication', 'Features_and_Benefits_4': 'Efficiency maintenance', 'Features_and_Benefits_5': 'Class 10 A and 20'}
