Contactors | SKU: LR3D22

LR3D22 | Square D | Relays & Contactors

Name: LR3D22
Brand: Square D
SKU: SCH-LR3D22
Price: 159.94 USD
Availability: InStock

Bimetallic Overlo

$159.94 $326.29

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

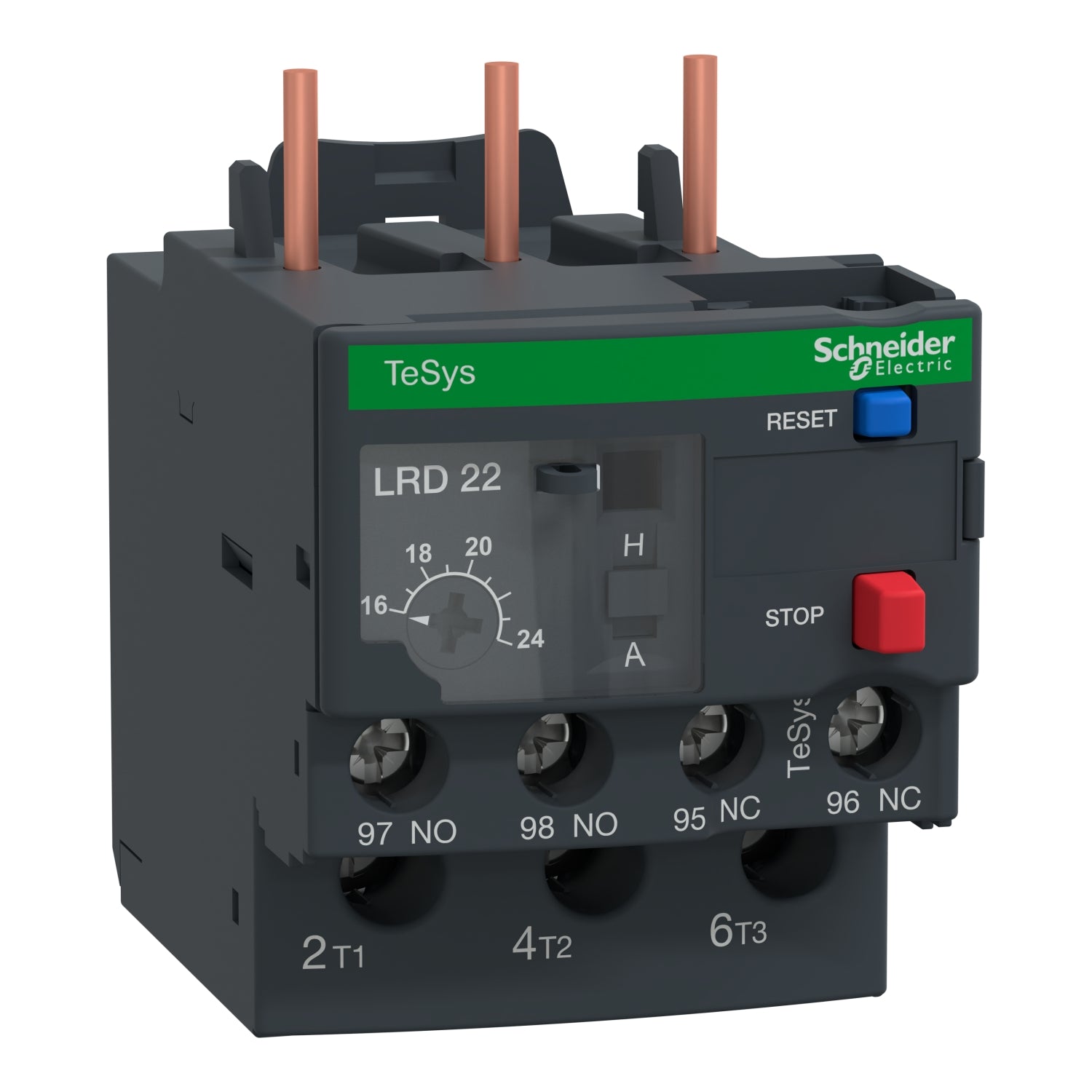

The LR3D22 is a Schneider Electric teSys Deca thermal overload relays - 16...24 A - class 10A.

LR3D22 is a TeSys LRD thermal overload relay to be used with a TeSys D contactor. It protects motors 9-11kW@400V thanks to a thermal range 16-24A, a tripping class 10A, for use with unbalanced loads. LR3D22 is a TeSys LRD thermal overload relay for direct mounting on TeSys D contactors. With a thermal setting range 16-24A and tripping class 10A, it protects unbalanced loads and motors 11kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator.

Product Specifications

Name	Value
Ambient temperature	-76°F to 158°F
Country of origin	FR
Data Sheet	Download
Height	2.6 in
Length	2.8 in
Mounting type	DIN Rail or Panel Mounting
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Bimetallic Overlo
Supplier part number	LR3D22
Web eligible	Y
Width	1.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads', 'Features_and_Benefits_2': 'Suitable for unbalanced loads', 'Features_and_Benefits_3': 'New modern look & feel of all machines', 'Features_and_Benefits_4': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_5': 'Digital customer experience for technical documents'}
