Contactors | SKU: LR3D14L

LR3D14L | Square D | Relays & Contactors

Name: LR3D14L
Brand: Square D
SKU: SCH-LR3D14L
Price: 87.16 USD
Availability: InStock

Class 20 Bimetal Olr 7-10a

$87.16 $177.80

Shipping calculated at checkout.

Available to order

Lead time: 12 days

FREE SHIPPING

Description

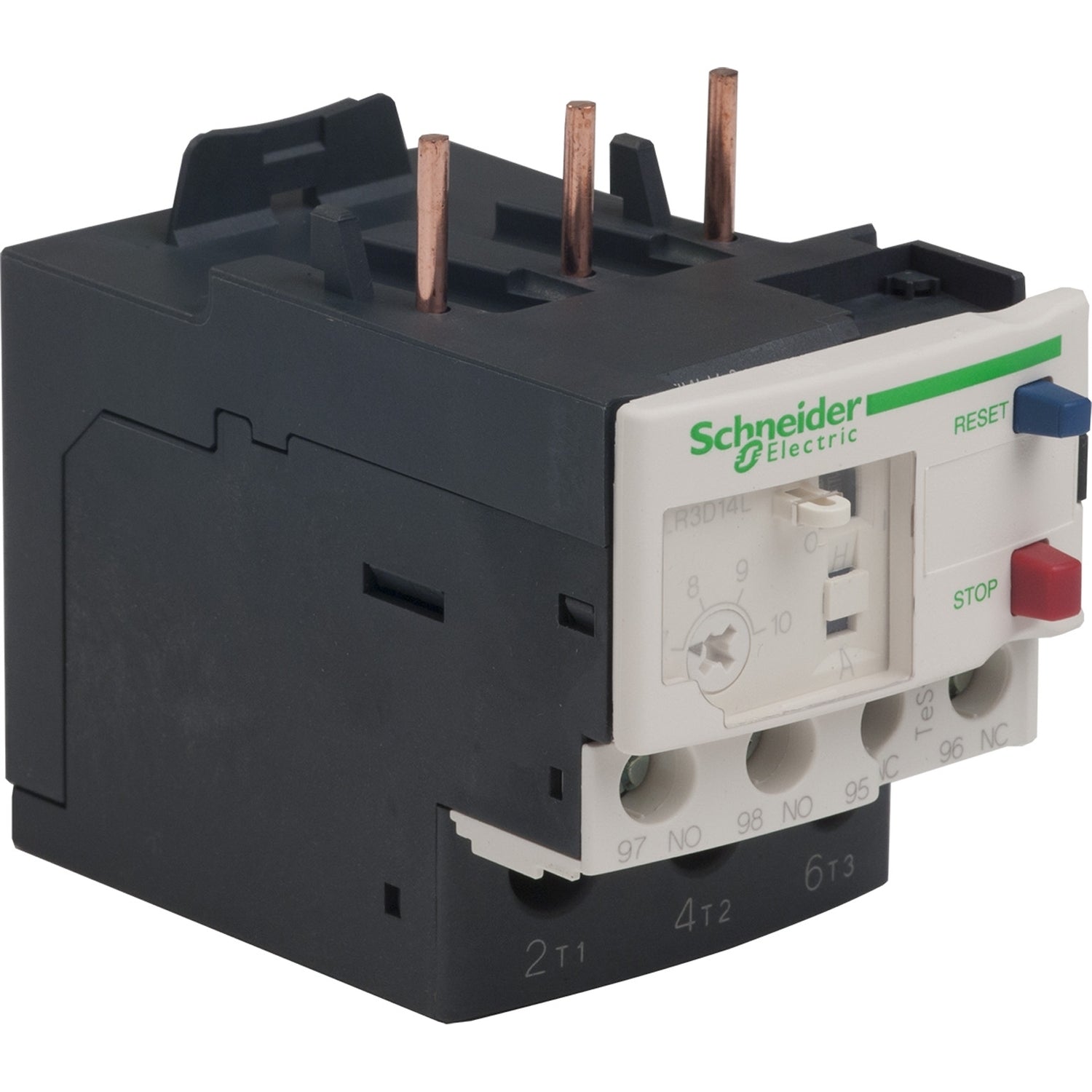

The LR3D14L is a Schneider Electric TeSys Deca thermal overload relay (690VAC, 7 to 10A, 1NO+1NC, class 20, for unbalanced loads).

LR3D14L is a TeSys LRD thermal overload relay to be used with a TeSys D contactor. It protects motors 4kW@400V thanks to a thermal range 7-10A, a tripping class 20, for use with unbalanced loads. LR3D14L is a TeSys LRD thermal overload relay for direct mounting on TeSys D contactors. With a thermal setting range 7-20 and tripping class 20, it protects unbalanced loads and motors 4kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator.

Product Specifications

Name	Value
Data Sheet	Download
Height	2.6 in
Length	3 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Class 20 Bimetal Olr 7-10a
Supplier part number	LR3D14L
Web eligible	Y
Width	1.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Tesys D thermal overload relays are designed to protect a.c. circuits and motors against overloads', 'Features_and_Benefits_2': 'New modern look & feel of all machines', 'Features_and_Benefits_3': 'Designed to meet the requirements of Electro domestic and HVAC applications', 'Features_and_Benefits_4': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_5': 'With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries'}
