Contactors | SKU: LR3D076

LR3D076 | Square D | Relays & Contactors

Name: LR3D076
Brand: Square D
SKU: SCH-LR3D076
Price: 98.20 USD
Availability: InStock

Bimetal Ovrld Rly 600V 2.5aiec

$98.20 $200.33

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

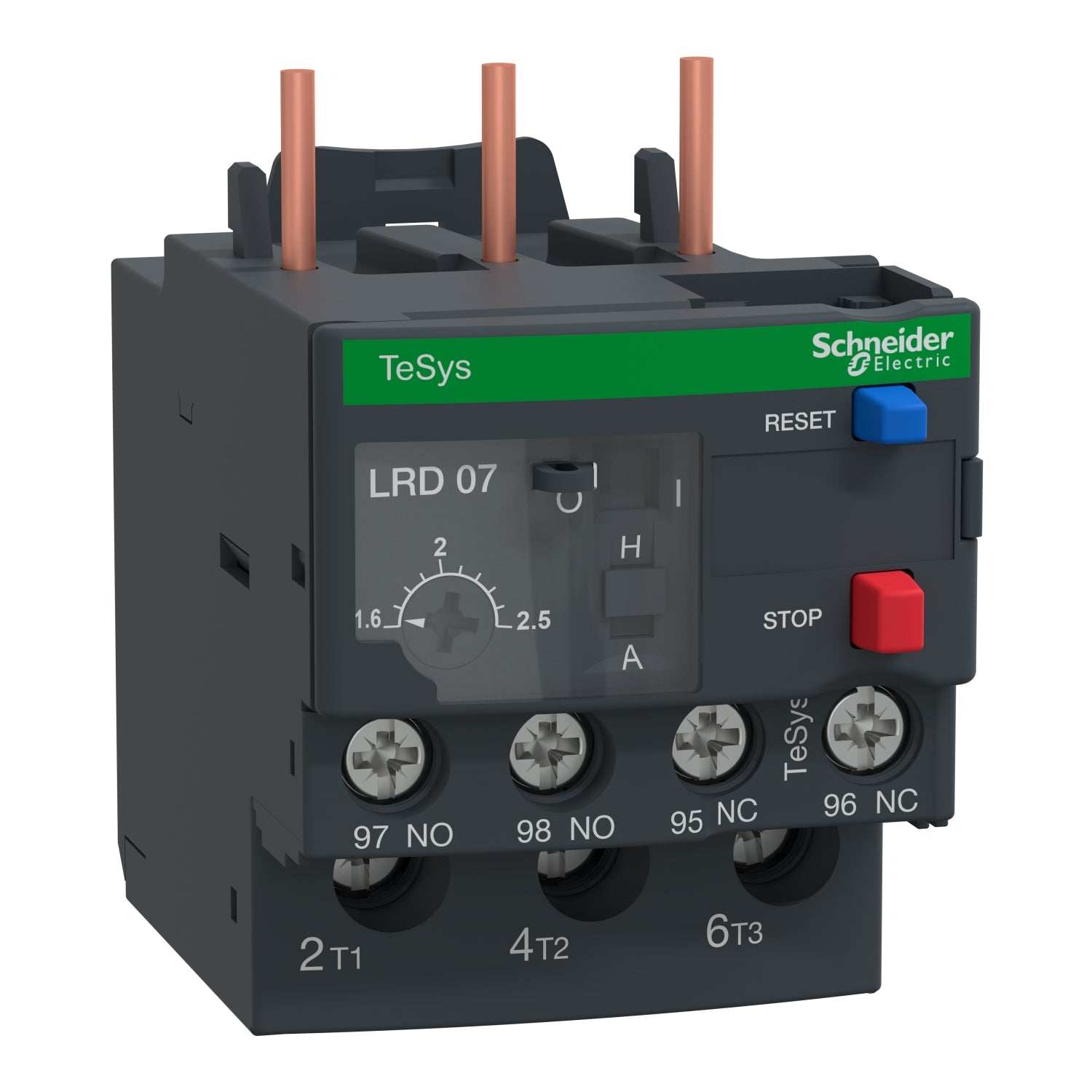

The LR3D076 is a Schneider Electric teSys Deca thermal overload relays - 1.6...2.5 A - class 10A.

TeSys LRD thermal overload relay, 2.5A/690V, thermal setting range 1.6-2.5A, tripping class 10A, for protection of 3-phase motors 0.75kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38.

Product Specifications

Name	Value
Data Sheet	Download
Height	2.6 in
Length	2.8 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Bimetal Ovrld Rly 600V 2.5aiec
Supplier part number	LR3D076
Web eligible	Y
Width	1.8 in

Features and Benefits

{'Features_and_Benefits_1': 'Tesys Deca thermal overload relays are designed to protect a.c. circuits and motors against overloads', 'Features_and_Benefits_2': 'Suitable for unbalanced loads', 'Features_and_Benefits_3': 'New modern look & feel of all machines', 'Features_and_Benefits_4': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_5': 'Digital customer experience for technical documents'}
