Circuit Protection | SKU: LK4JU3N

LK4JU3N | Square D | Electrical & Wiring

Name: LK4JU3N
Brand: Square D
SKU: SCH-LK4JU3N
Price: 1570.74 USD
Availability: InStock

Disconnect Sw NO Fuse 600V 100

$1,570.74 $3,204.27

Shipping calculated at checkout.

Available to order

Lead time: 5 days

FREE SHIPPING

Description

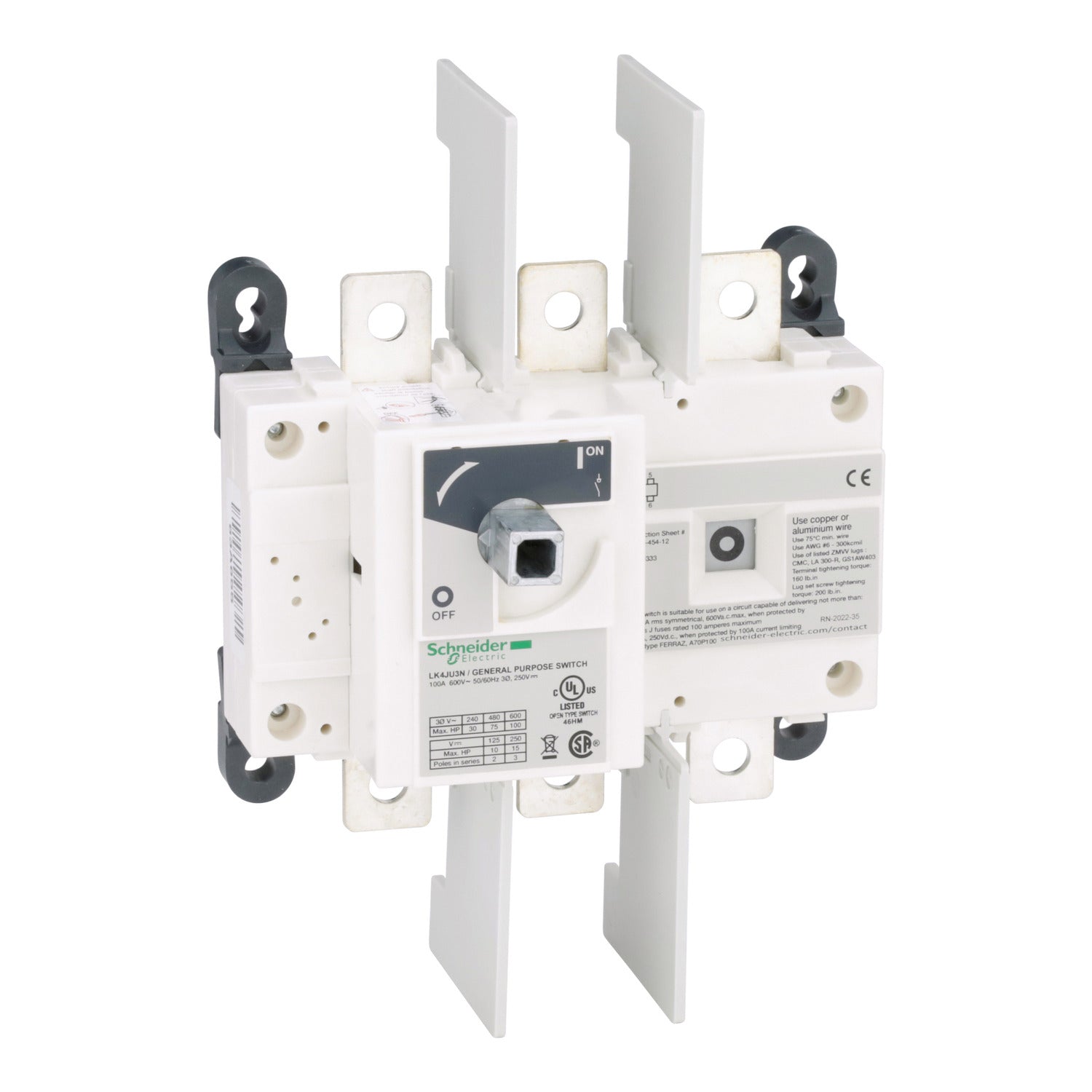

The LK4JU3N is a Schneider Electric TeSys LK disconnect Switch (nonfusible, 100A, 600V, HP rated, 3 pole, rotary handle, up to 200kA SCCR).

TeSys LK4 non fusible disconnect switches are compact or standard sized switches that break and make power circuits, on and off loads, and provide safety isolation. This 3 pole non fusible disconnect switch has a 100 ampere rating. It can be used in applications up to 600 VAC or VDC. This nonfusible disconnect switch has a 30 HP rating at 240 VAC, a 75 HP rating at 480 VAC, a 100 HP rating at 600 VAC, a 10 HP rating at 125 VDC and a 15 HP rating at 240 VDC. This disconnect switch is operated with a rotary handle.

Product Specifications

Name	Value
Country of origin	FR
Data Sheet	Download
Height	6.3 in
Length	3.7 in
Mounting type	Panel Mounting
Number of poles	3-Pole
Product category	Electrical & Wiring
Product subcategory	Circuit Protection
Series	Square D
Short desc	Disconnect Sw NO Fuse 600V 100
Supplier part number	LK4JU3N
Voltage	600 VAC
Width	7.09 in

Features and Benefits

{'Features_and_Benefits_1': 'Break and make power circuits and on/off loads', 'Features_and_Benefits_2': 'Provides safety isolation', 'Features_and_Benefits_3': 'Positive break indication', 'Features_and_Benefits_4': 'Full line of NEMA/UL/IP rated handles', 'Features_and_Benefits_5': 'Compliance to major certifications and approvals'}
