Contactors | SKU: LJA36600U31X

LJA36600U31X | Square D | Relays & Contactors

Name: LJA36600U31X
Brand: Square D
SKU: SCH-LJA36600U31X
Price: 11697.66 USD
Availability: InStock

Mold Case Cir Break 600V 600a

$11,697.66 $23,863.04

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

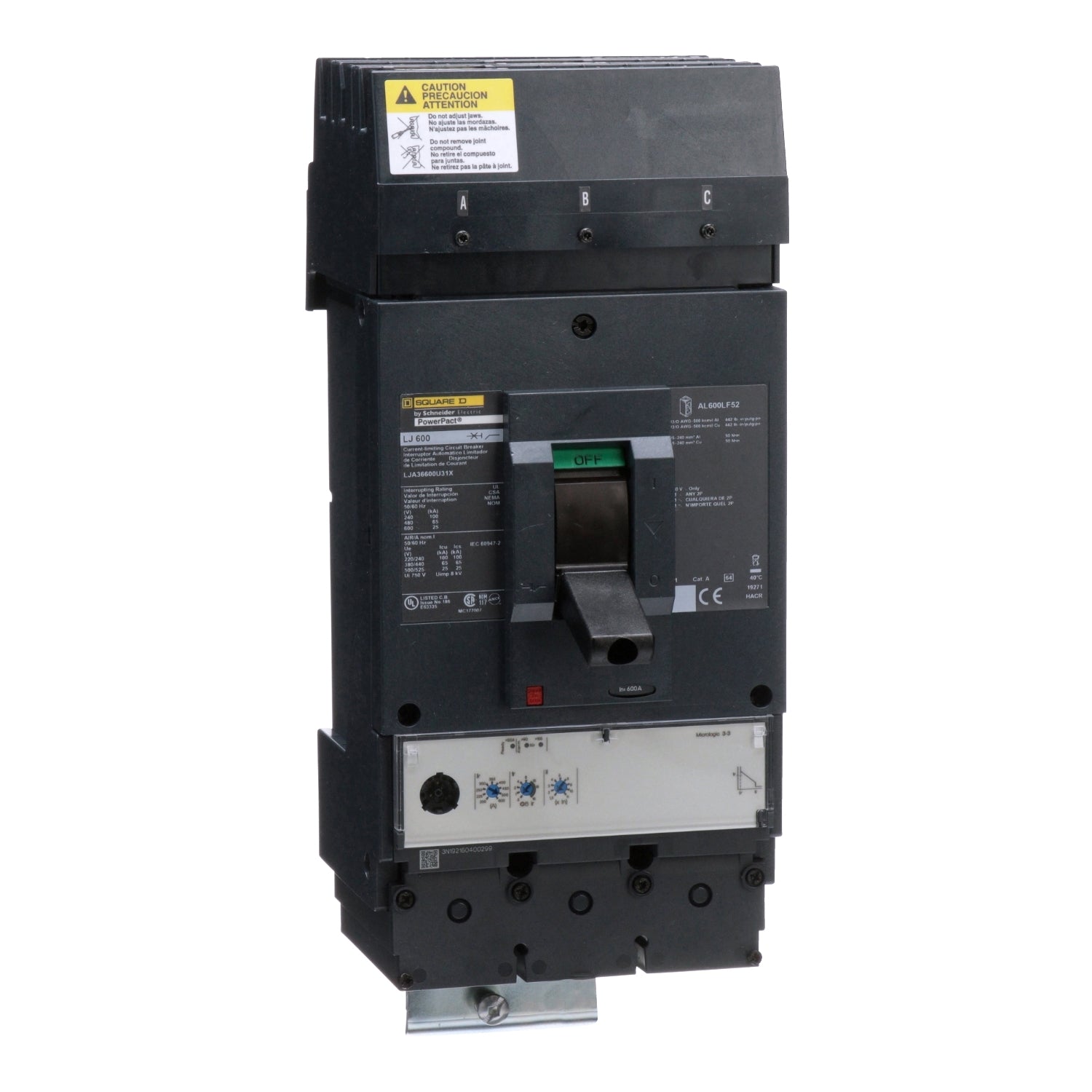

The LJA36600U31X is a Schneider Electric PowerPacT L circuit breaker (600A, 3 pole, 600VAC, 25kA, I-Line, MicroLogic 3.3, 80%, ABC).

PowerPacT L-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-Frame circuit breakers are available with electronic trip units. All PowerPacT L-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line, and drawout constructions.

Product Specifications

Name	Value
Data Sheet	Download
Height	13.4 in
Length	4.3 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Mold Case Cir Break 600V 600a
Supplier part number	LJA36600U31X
Web eligible	Y
Width	5.5 in

Features and Benefits

{'Features_and_Benefits_1': 'Available in 3 or 4 pole design', 'Features_and_Benefits_2': 'Protection from overloads and short circuits', 'Features_and_Benefits_3': 'Common accessories across the range', 'Features_and_Benefits_4': 'Used as main panel disconnect for control panel', 'Features_and_Benefits_5': 'UL 489 Listed, CSA, NEMA, NMX, VDE, BS, CCC, IEC certified, and CE marked'}
