Contactors | SKU: LC2DT25G7

LC2DT25G7 | Square D | Relays & Contactors

Name: LC2DT25G7
Brand: Square D
SKU: SCH-LC2DT25G7
Price: 634.12 USD
Availability: InStock

Rvrsng Cntctr 575VAC 25a Iec

$634.12 $1,293.61

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

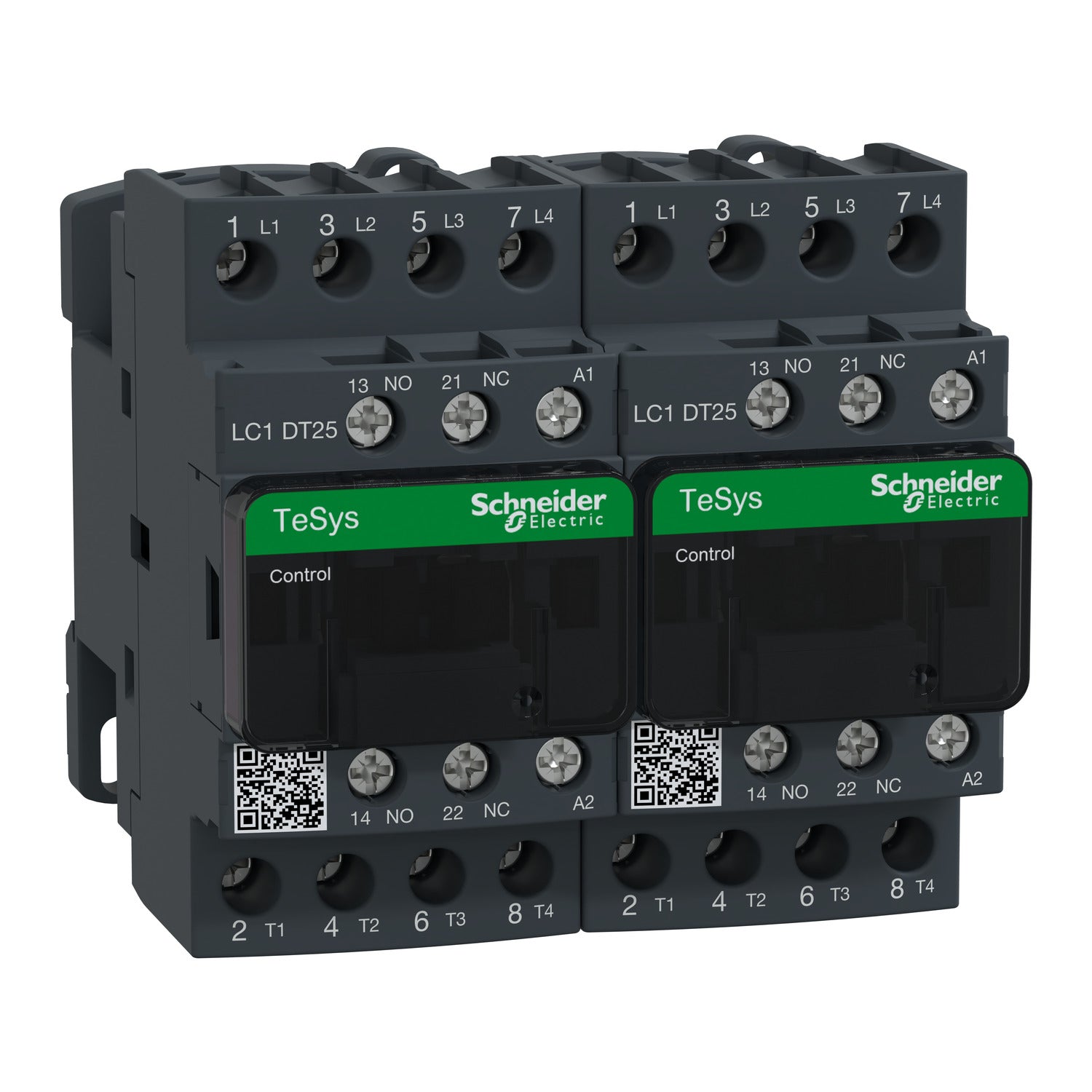

The LC2DT25G7 is a Schneider Electric TeSys Deca IEC contactor (reversing, 25A resistive, 4 pole, 4 NO, 120VAC 50/60Hz coil, open style).

They can be used to create motor starters for almost any type of application. TeSys Deca contactors are available in 13 contactor ratings for inductive motor applications up to 150 full-load amps and resistive loads up to 200 amps. This reversing 4 pole IEC contactor can be mounted on DIN rail or mounted directly to a panel. Contactor has four normally open power contacts. Power contacts have a 25A resistive load rating.

Product Specifications

Name	Value
Ambient temperature	-40°F to 140°F
Country of origin	FR
Current rating	25 A
Data Sheet	Download
Height	3.3 in
Length	3.5 in
Mounting type	DIN Rail or Panel Mounting
Number of poles	4-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Rvrsng Cntctr 575VAC 25a Iec
Supplier part number	LC2DT25G7
Voltage	120 VAC
Web eligible	Y
Width	3.5 in

Features and Benefits

{'Features_and_Benefits_1': 'New modern look & feel of all machines', 'Features_and_Benefits_2': 'Designed to meet the requirements of industrial and HVAC applications', 'Features_and_Benefits_3': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_4': 'With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries', 'Features_and_Benefits_5': 'Digital customer experience for technical documents'}
