Contactors | SKU: LC2D18G7

LC2D18G7 | Square D | Relays & Contactors

Name: LC2D18G7
Brand: Square D
SKU: SCH-LC2D18G7
Price: 195.86 USD
Availability: InStock

Reversing Contac

$195.86 $399.57

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

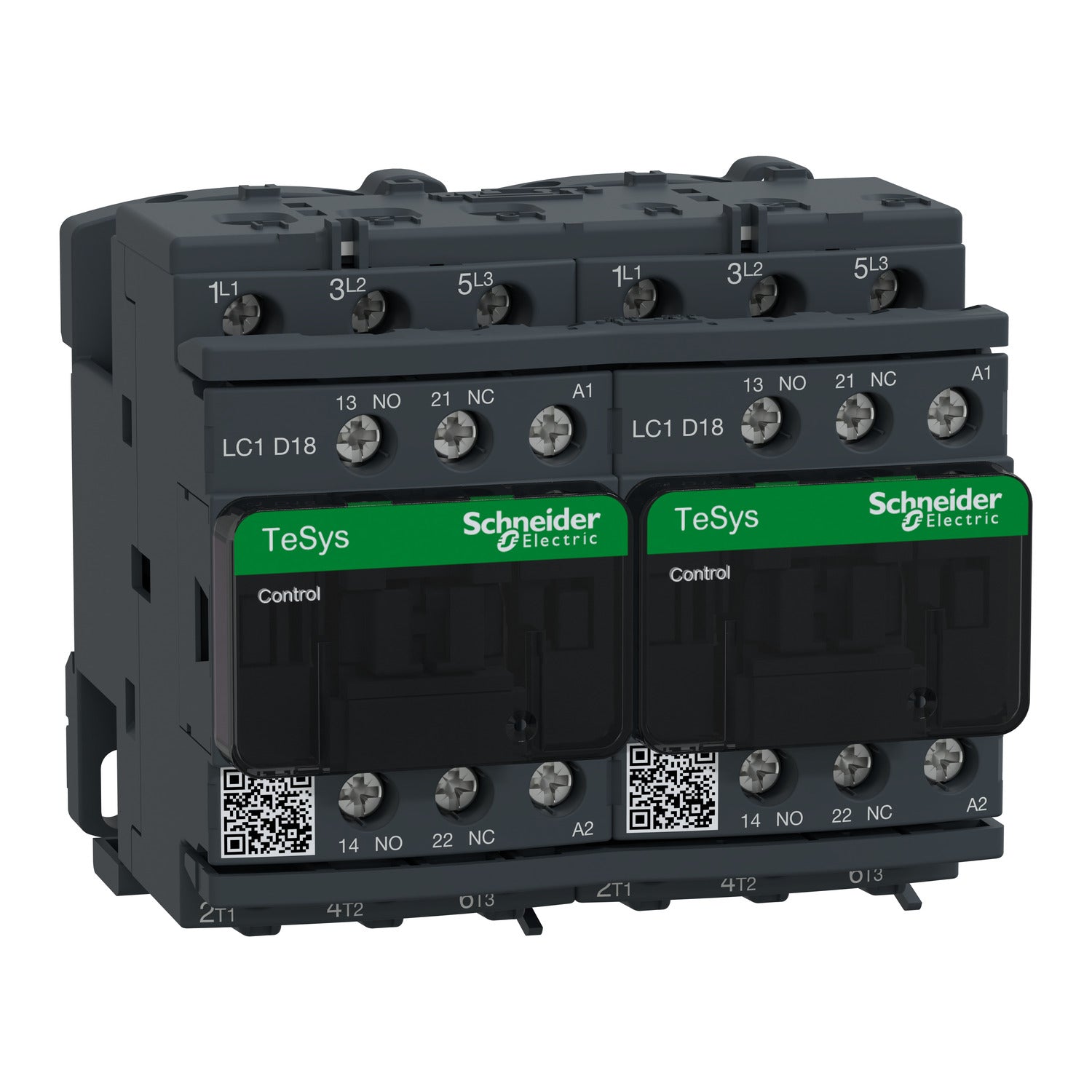

The LC2D18G7 is a Schneider Electric TeSys Deca IEC contactor (18 A, 3 P, 10 HP at 480 VAC, reversing, 120 VAC 50/60 Hz coil).

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5kW@400V). They can be used to create motor starters for almost any type of application. It provides 120V 50/60Hz AC coils, 2NO+2NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing.

Product Specifications

Name	Value
Ambient temperature	-40°F to 140°F
Country of origin	ID
Current rating	18 A
Data Sheet	Download
Height	3.03 in
Hp rating	10 HP
Length	3.4 in
Mounting type	DIN Rail or Panel Mounting
Number of poles	3-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Reversing Contac
Supplier part number	LC2D18G7
Voltage	120 VAC
Web eligible	Y
Width	3.5 in

Features and Benefits

{'Features_and_Benefits_1': 'New modern look & feel of all machines', 'Features_and_Benefits_2': 'Designed to meet the requirements of industrial and HVAC applications', 'Features_and_Benefits_3': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_4': 'With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries', 'Features_and_Benefits_5': 'Digital customer experience for technical documents'}
