Contactors | SKU: LC2D09BL

LC2D09BL | Square D | Relays & Contactors

Name: LC2D09BL
Brand: Square D
SKU: SCH-LC2D09BL
Price: 258.75 USD
Availability: InStock

Rvrsng Cntctr 575VAC 9a Iec

$258.75 $527.85

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

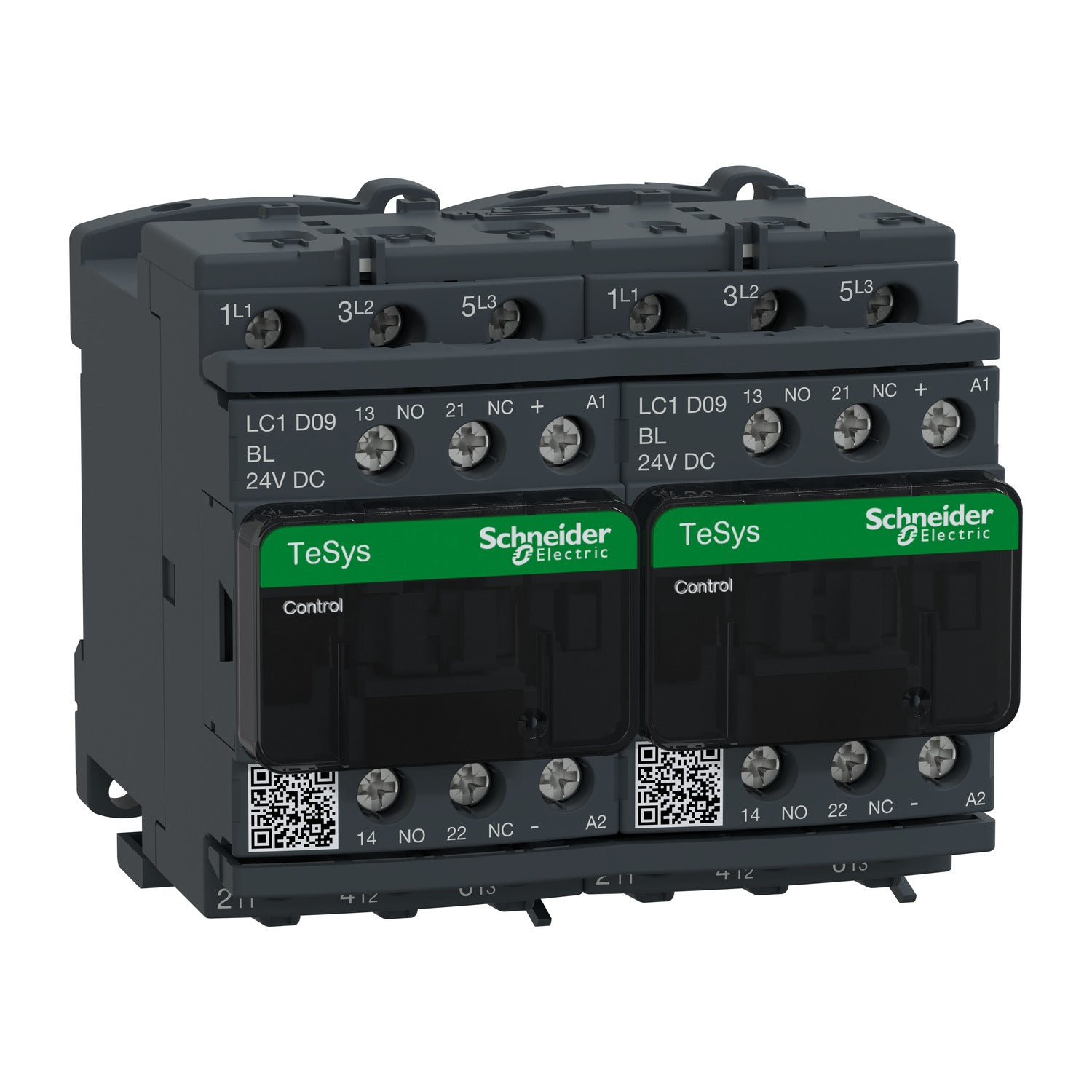

The LC2D09BL is a Schneider Electric TeSys Deca reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 9 A - 24 V low consumption DC coil.

TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides low consumption 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (90mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking).

Product Specifications

Name	Value
Data Sheet	Download
Height	3.03 in
Length	3.7 in
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Rvrsng Cntctr 575VAC 9a Iec
Supplier part number	LC2D09BL
Web eligible	Y
Width	3.5 in

Features and Benefits

{'Features_and_Benefits_1': 'New modern look & feel of all machines', 'Features_and_Benefits_2': 'Designed to meet the requirements of industrial and HVAC applications', 'Features_and_Benefits_3': 'Easier to install and operate with multi-standard screws', 'Features_and_Benefits_4': 'With IEC60335-1 compliance, improved fire resistance, and dustproof auxiliaries', 'Features_and_Benefits_5': 'Digital customer experience for technical documents'}
