Contactors | SKU: JJL36250M75

JJL36250M75 | Square D | Relays & Contactors

Name: JJL36250M75
Brand: Square D
SKU: SCH-JJL36250M75
Price: 3369.81 USD
Availability: InStock

Mo Circuit Protect 600V 250a

$3,369.81 $6,874.35

Shipping calculated at checkout.

Available to order

Lead time: 9 days

FREE SHIPPING

Description

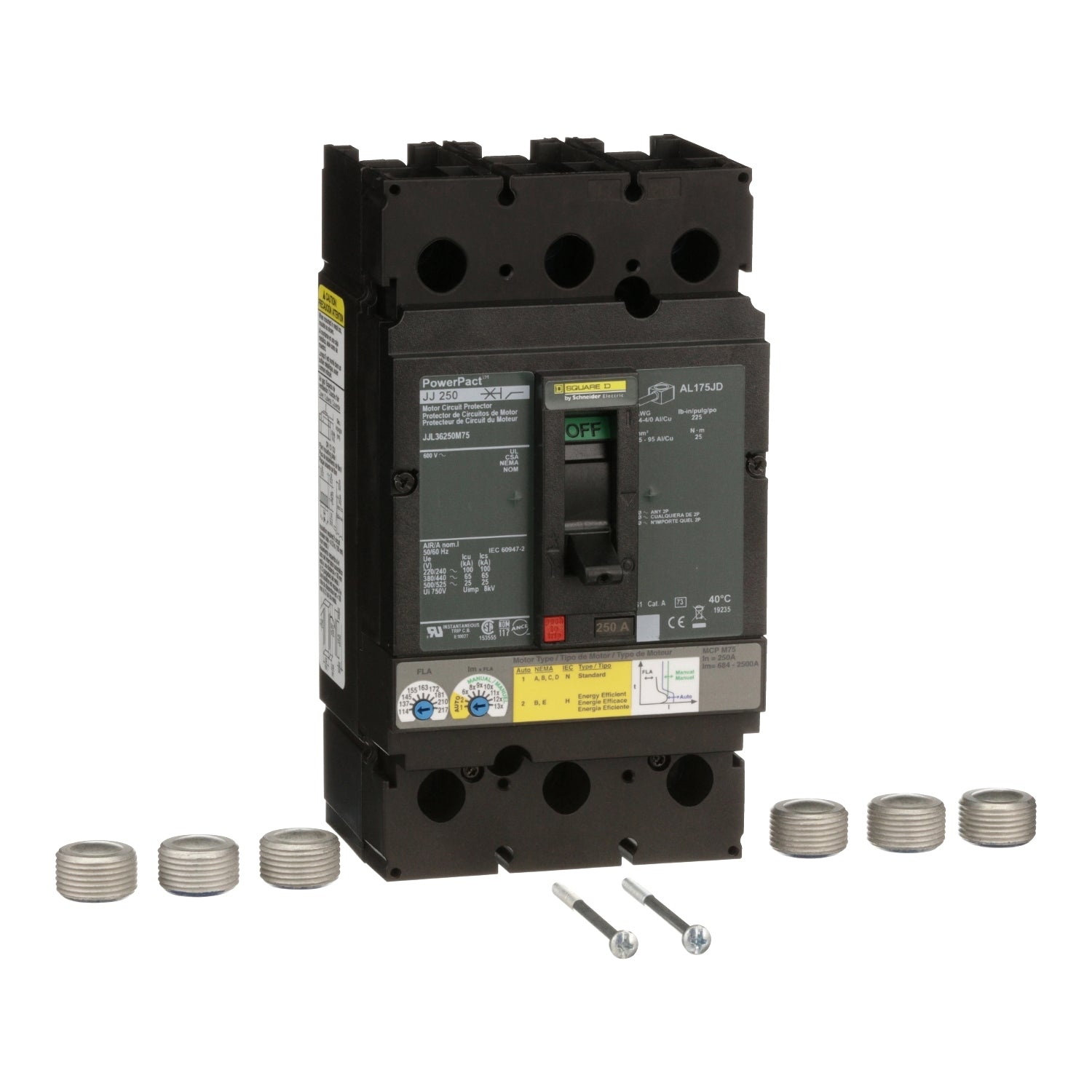

The JJL36250M75 is a Schneider Electric PowerPacT J motor circuit protector (250A, 3 pole, 600VAC, 25kA, lugs, magnetic only).

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or MicroLogic electronic trip protection units. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions.

Product Specifications

Name	Value
Ambient temperature	-13°F to 158°F
Country of origin	MX
Data Sheet	Download
Height	7.5 in
Length	3.4 in
Number of poles	3-Pole
Product category	Relays & Contactors
Product subcategory	Contactors
Series	Square D
Short desc	Mo Circuit Protect 600V 250a
Supplier part number	JJL36250M75
Web eligible	Y
Width	4.09 in

Features and Benefits

{'Features_and_Benefits_1': 'Available in 2 or 3 pole design', 'Features_and_Benefits_2': 'Overcurrent protection and switching on AC systems', 'Features_and_Benefits_3': 'Common accessories across the range', 'Features_and_Benefits_4': 'Easy to install, extremely versatile, a wide variety of terminal options', 'Features_and_Benefits_5': 'UL 489 Listed, CSA, NOM, IEC CCC, UKCA, and CE marked'}
